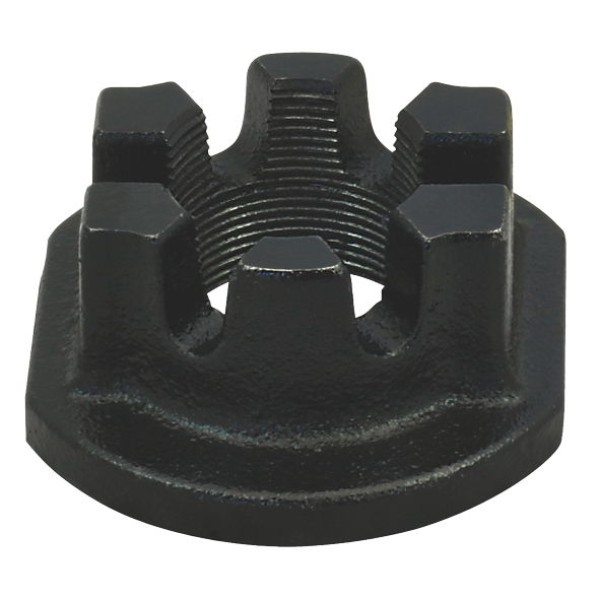

BPW 9000 Series axle nut M42x2 65mm

BPW 9000 Series Axle Nut M42x2

$26.00

BPW 9000 Series axle nut for trailer wheel-end service, with an M42x2 thread, 65mm spanner width, 93mm OD, 39.5mm ID and 40mm height for matching the removed nut and retention arrangement before ordering.

Part number AP1007.

Quick Quote

SKU: AP1007 Category: Tags: , , , , , , , , , , , , , , , Brand:
This field is for validation purposes and should be left unchanged.

Description

Overview

BPW 9000 Series axle nut secures the wheel-end hub and bearing arrangement on matching BPW 9000 Series trailer axles. Its M42x2 thread, 65mm spanner width, 93mm outside diameter and 40mm height distinguish this version from other BPW axle nuts.

Features

  • M42x2 internal thread for the matching axle stub.
  • 65mm spanner width for removal and installation.
  • 93mm outside diameter with 39.5mm inside diameter.
  • 40mm overall height for dimensional comparison.

Specifications and Materials

Product type: axle nut. Fitment family: BPW 9000 Series. Thread: M42x2. Spanner width: 65mm. Outside diameter: 93mm. Inside diameter: 39.5mm. Height: 40mm.

Part number: AP1007.

See the BPW wheel-end technical overview for manufacturer wheel-hub system information

Compatibility and Fitment

Match the M42x2 thread and all four supplied dimensions before ordering. In particular, do not select another 65mm BPW axle nut unless the outside diameter, height and wheel-end arrangement also match.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 0326216080, 03.262.16.08.0, 070.033, 070033, 10469, 406.223-00A, 40622300A, STR-70009, STR70009, 87710, 20244

Related Parts

Check the related service parts below against the trailer setup before ordering.

Use Part number Part type
Split pin to suit 0262018201 Split pin



Compliance and Safety

Inspect the axle-stub thread and split-pin retention point during service. After bearing adjustment, secure the nut using the correct wheel-end retention procedure for the axle.

Trailer Applications

Trailer workshops use this BPW 9000 Series axle nut when servicing matching wheel ends with the M42x2 and 65mm configuration.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

0326216080 03.262.16.08.0 070.033
070033 10469 406.223-00A
40622300A STR-70009 STR70009
87710 20244



Why Choose ICS Trailers

Several BPW axle nuts share similar thread and spanner dimensions, so the 93mm outside diameter and 40mm height are useful checks when identifying this version. If the removed nut is worn or its markings are unclear, ICS Trailers can compare photos, measurements and axle details before you order.

  • Help identifying the matching split pin and surrounding wheel-end service components.
  • Support comparing OEM and aftermarket replacement numbers for the same axle nut.
