BPW New Gen Axle Nut 108mm A/F

Allan Davis on 10/08/2026

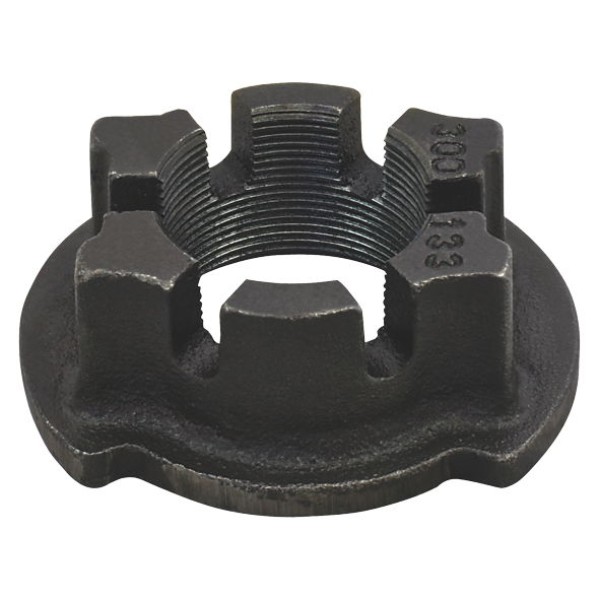

BPW New Gen axle nut 108mm A/F 49mm ID

BPW New Gen Axle Nut 108mm A/F

$28.00

BPW New Gen axle nut for H91, H10 and R10 wheel-end applications, with 108mm A/F, 49mm ID and 40.5mm thickness for dimensional matching during hub and bearing service. Compare the removed nut and retention arrangement before ordering to avoid mixing similar BPW wheel-end variants.

Part number AP1006.

Quick Quote

SKU: AP1006 Category: Tags: , , , , , , , , , , , Brand:
This field is for validation purposes and should be left unchanged.

Description

Overview

BPW New Gen axle nut secures the wheel-end bearing and hub assembly on matching BPW New Generation trailer axles. Its 108mm A/F measurement, 49mm inside diameter and 40.5mm thickness are the main dimensions to compare with the removed nut.

Features

  • 108mm A/F dimension for matching the nut body.
  • 49mm inside diameter through the centre.
  • 40.5mm overall thickness.
  • Used with a separate split pin in the matching wheel-end assembly.

Specifications and Materials

Product type: axle nut. Application family: BPW New Generation. A/F: 108mm. Inside diameter: 49mm. Thickness: 40.5mm.

Part number: AP1006.

See the BPW wheel-end technical overview for manufacturer information on hub and axle-nut service systems

Compatibility and Fitment

Match the 108mm A/F size, 49mm inside diameter and 40.5mm thickness before ordering. This part appears in BPW New Generation H91, H10 and R10 wheel-end assemblies, so also compare the existing hub layout and nut retention arrangement.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Use Part number Part type
Split pin to suit CH7506 6.3mm x 80mm split pin
Split pin to suit CH7506G 6.3mm x 80mm split pin



Compliance and Safety

Inspect the axle thread and split-pin retention point before fitting. Replace damaged retaining hardware and follow the axle-specific wheel-bearing adjustment and nut-retention procedure during reassembly.

Trailer Applications

Workshops use this axle nut in BPW New Generation H91, H10 and R10 trailer wheel-end servicing where the measured dimensions and retention layout match.

Why Choose ICS Trailers

The BPW New Gen axle nut needs careful dimensional comparison, especially when several BPW wheel-end generations are in service. If the removed nut is worn or unmarked, ICS Trailers can compare its 108mm A/F body, 40.5mm thickness, photos and axle details to narrow down the correct replacement.

  • Help matching the axle nut with the surrounding hub and bearing service setup.
  • Support identifying the correct split-pin retention components for the repair.
