Description

Overview

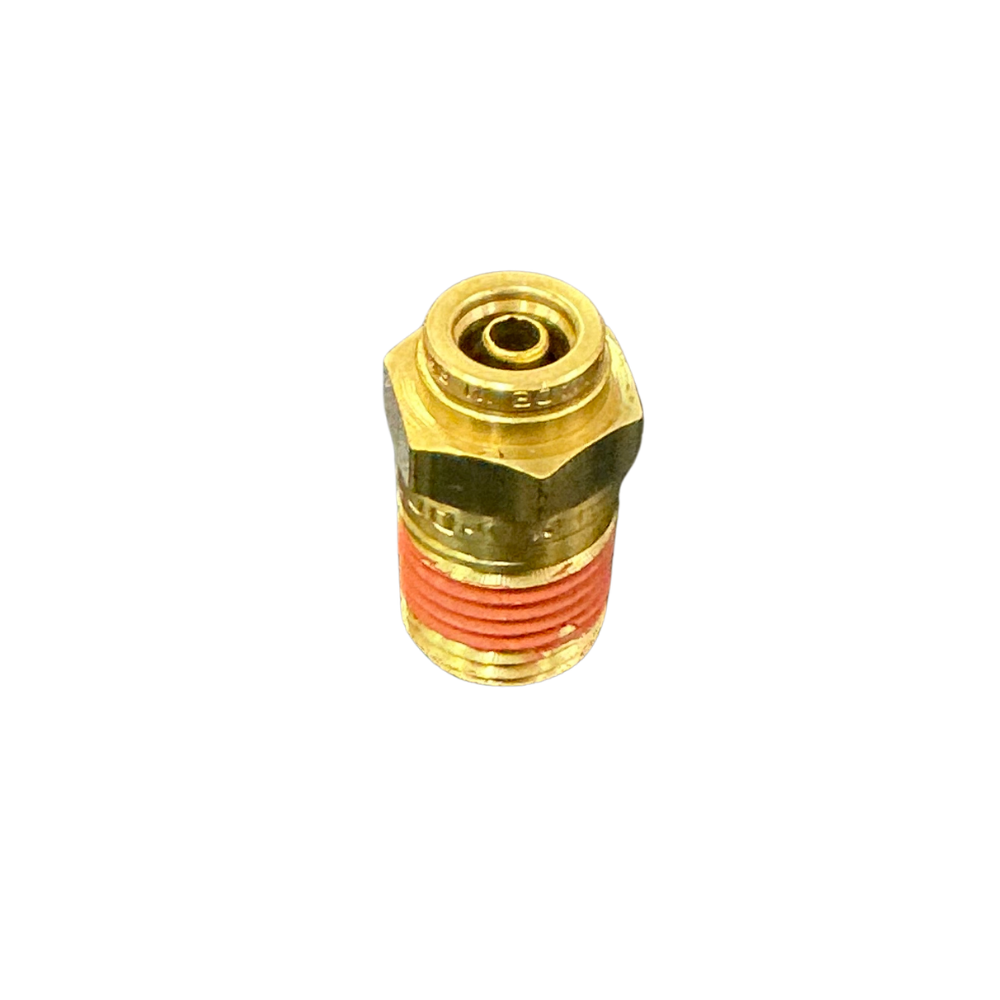

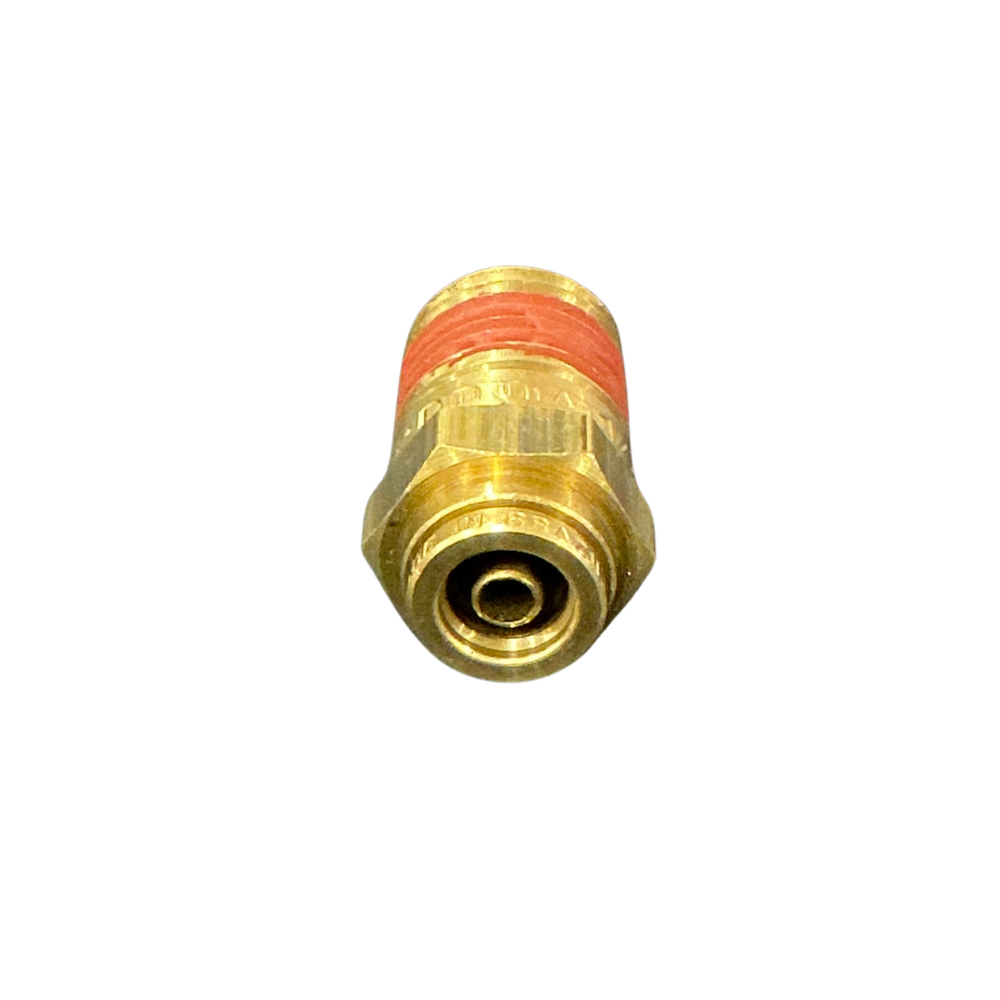

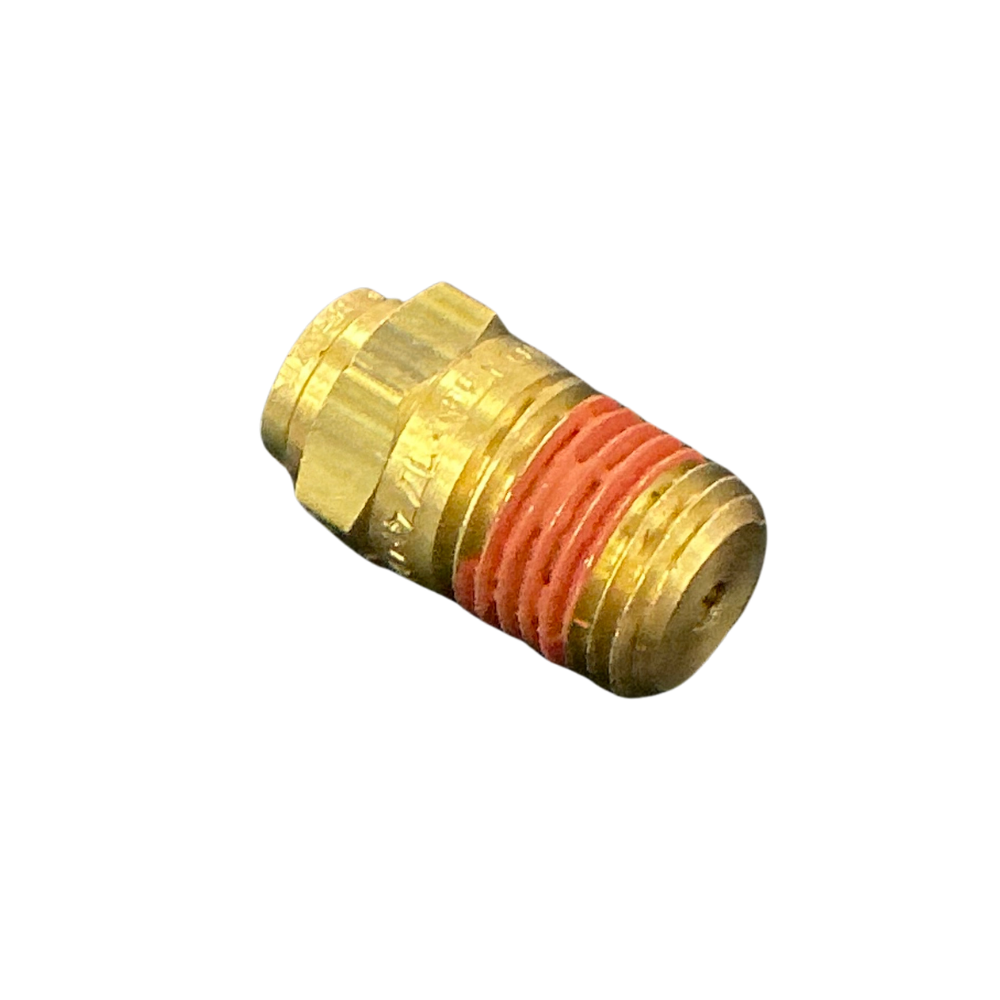

The 1/4 tube x 1/4 NPT push-in male connector joins 1/4″ outside-diameter nylon air tube to a matching female threaded port. Its straight configuration keeps the tube aligned with the connection and suits installations where an elbow, swivel or branch fitting is not required.

Features

• Push-in connection for 1/4″ outside-diameter imperial nylon tube
• 1/4 NPT male thread for compatible female ports
• Straight brass body with a hex section for installation
• Reusable collet connection allows the tube to be released after depressurising

Specifications and Materials

This straight brass connector combines a 1/4″ push-in tube connection with a 1/4 NPT male thread. The push-in end contains the gripping and sealing components required to retain compatible nylon tube, so separate compression nuts, olives and tube inserts are not required. Part number: 88-003-0404.

Review the manufacturer male connector specifications

Compatibility and Fitment

Confirm that the tube has a 1/4″ outside diameter and the receiving component has a 1/4 NPT female port. The first measurement refers to the tube size, while the second refers to the male pipe thread. Do not substitute 6mm metric tube or a 1/4 BSP threaded fitting, as the dimensions and thread forms differ.

Cut the tube square, remove burrs and push it fully into the connector until it reaches the internal stop. Pull back lightly to confirm that the tube has engaged. These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. DQ68DOT0404, 1168X4X4

Compliance and Safety

Depressurise the air system before installing, removing or releasing the tube. Inspect the tube near the sealing area for scoring, flattening, contamination or heat damage. Tighten the connector through the body hex rather than applying force through the push-in end, and prevent thread-sealing material from entering the air passage.

After installation, pressurise the system gradually and check both the threaded port and tube connection for leakage. Replace damaged tube rather than shortening it repeatedly where the remaining section cannot reach the fitting without tension.

Trailer Applications

Workshops fit this connector where a 1/4″ nylon line enters a valve, manifold, pneumatic control, reservoir accessory or other component with a 1/4 NPT female port. The straight body suits truck and trailer air-brake, air-suspension and auxiliary pneumatic plumbing where the tube approaches the port in line.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers supplies push-in connectors, elbows, tees, unions and threaded adaptors for trailer pneumatic repairs. If the old connector is difficult to identify, send a clear photo and confirm the tube outside diameter, male thread size and port thread type.
