Description

Overview

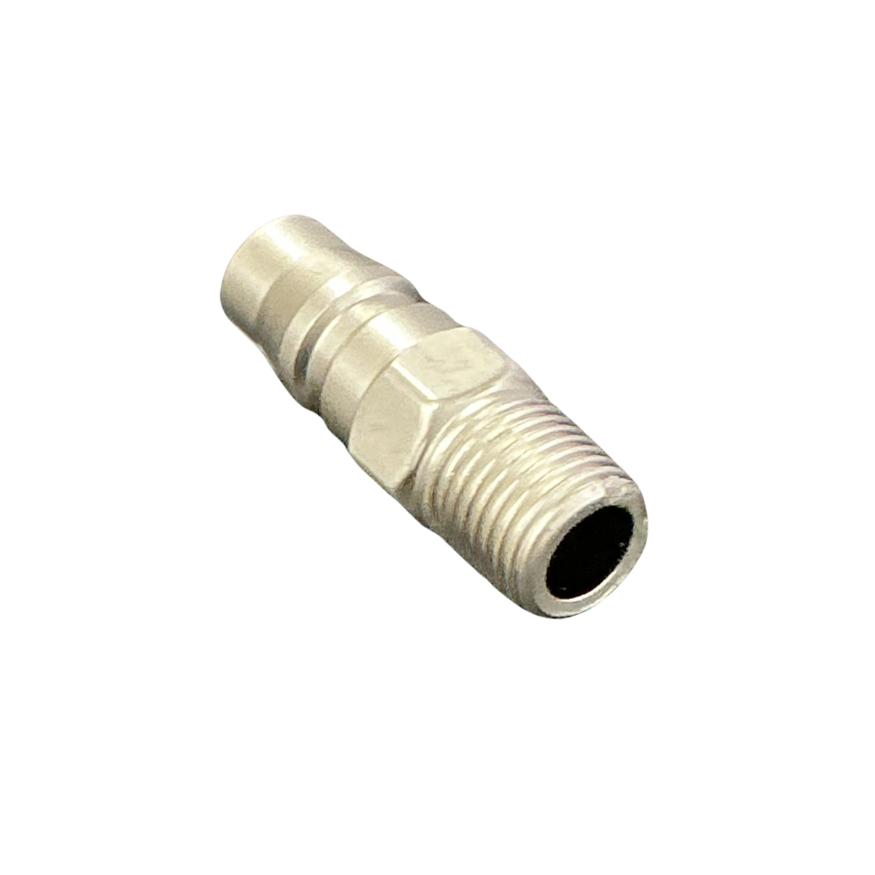

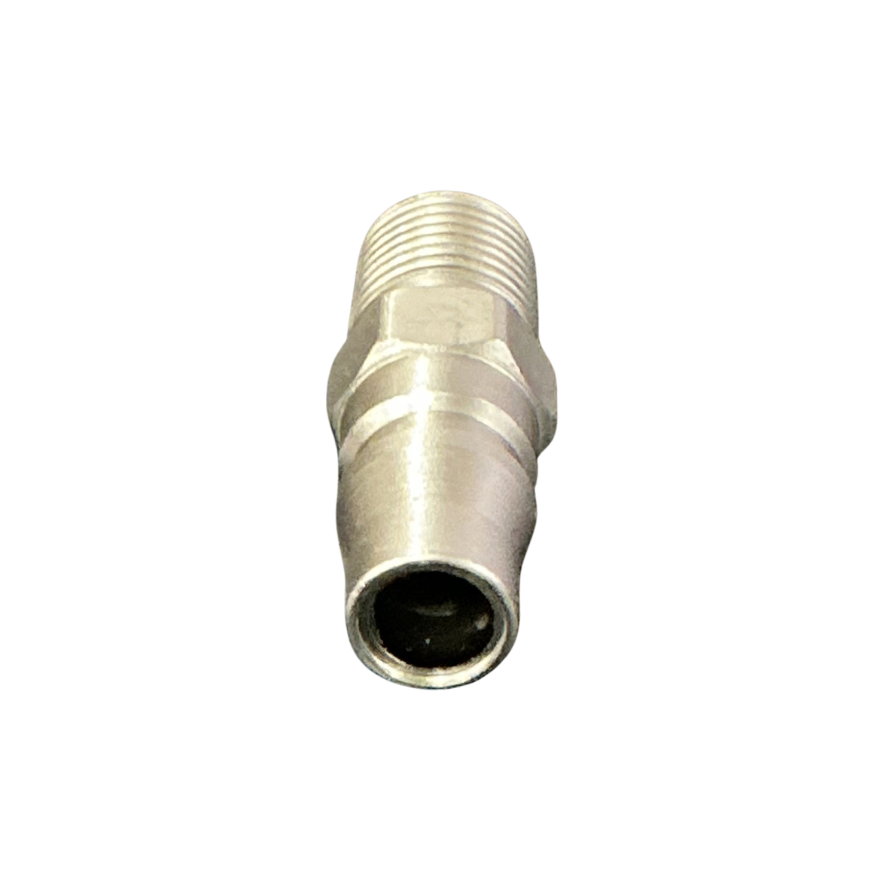

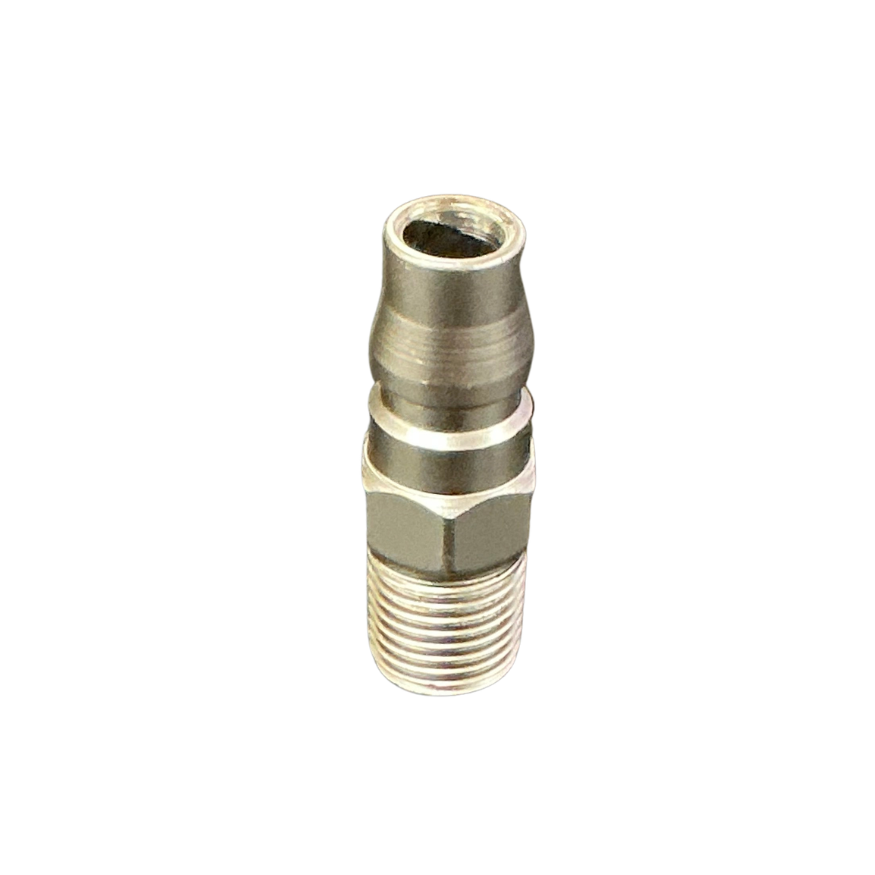

The Nitto style male plug connects a pneumatic tool, hose assembly or threaded adaptor to a matching female quick-connect socket. Its plated-steel body combines the common 20-series plug profile with a 1/4 BSPT male thread for compact workshop air connections.

Features

• Male quick-connect profile for matching Nitto-style sockets.
• 1/4 BSPT male thread for a compatible female port.
• Plated-steel body with a hex section for controlled tightening.
• Valve-free plug design leaves air shut-off to the socket.

Specifications and Materials

This straight fitting has a male plug end, 1/4 BSPT male thread and plated-steel body. The hex provides a spanner surface so installation force does not transfer through the coupling nose. The package contains one complete plug fitting.

Part number: 08-G20PM.

Compare the connection profile with the official Nitto 20PM technical information

Compatibility and Fitment

Match the Nitto style male plug to the female socket profile, 1/4 BSPT port and available clearance. The main ordering risk is confusing BSPT with 1/4 NPT or parallel BSP. Check the socket nose and thread form, then start the fitting by hand to prevent cross-threading.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. GP-971-04, GP97104, 20PM

Related Parts

Check these related sockets against the workshop air setup before ordering.

Compliance and Safety

Isolate and depressurise the air line before installation or removal. Apply suitable pneumatic thread sealant without blocking the bore, tighten through the hex and inspect the plug nose for scoring or deformation. Reconnect the system and check the threaded joint and socket for leaks.

Trailer Applications

Workshops use this plug on compressor lines, pneumatic tools, tyre-inflation equipment, blow guns and service hoses. It also suits mobile trailer and heavy-vehicle repair equipment where a removable air connection is required and the mating socket uses the same profile.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers supplies workshop air plugs, sockets, hose and threaded fittings for trailer and heavy-vehicle service work. If the connection is difficult to identify, send photos of the plug nose, socket opening and thread beside a ruler.
