Description

Overview

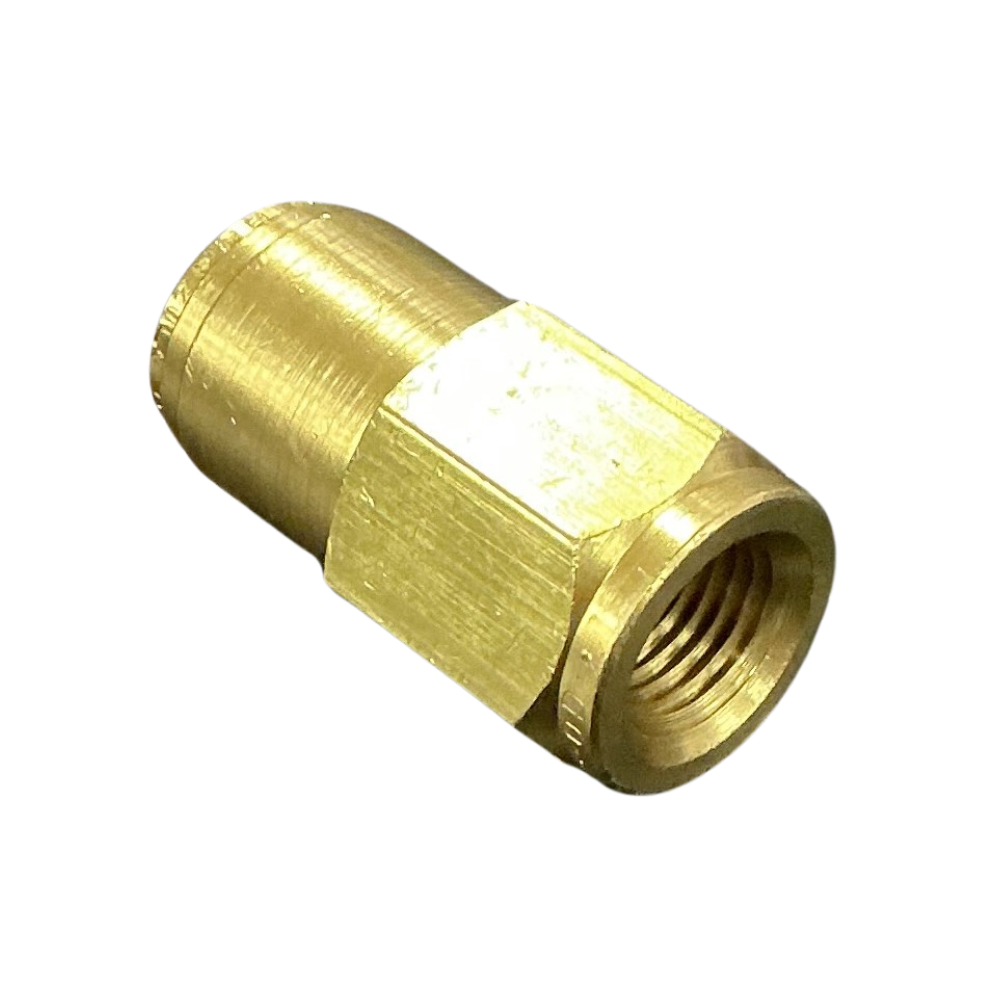

The 1/2 x 1/4 NPTF female connector joins 1/2-inch outside-diameter nylon air-brake tube to a 1/4 NPTF male threaded connection. Its straight brass body allows the larger nylon air line to terminate at a smaller pneumatic port without an extra adaptor.

Features

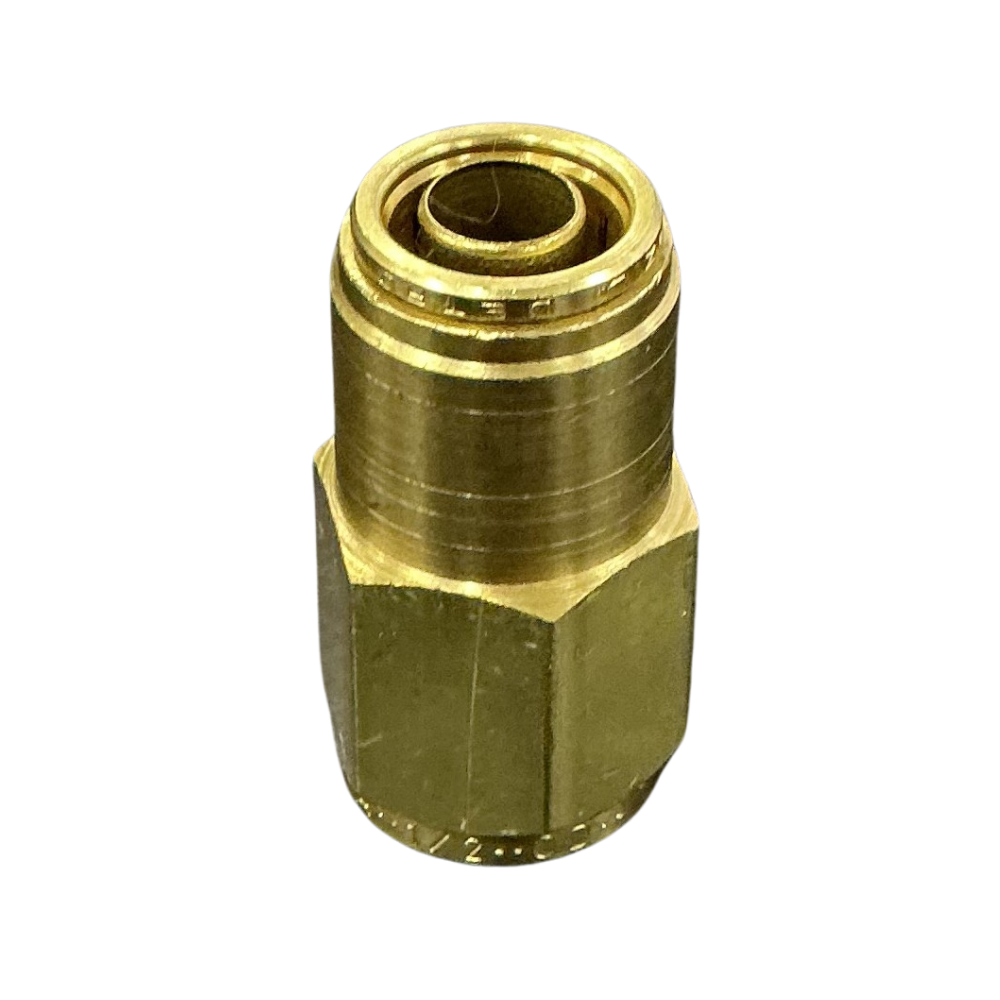

• Push-to-connect end grips 1/2-inch OD imperial nylon air tube.

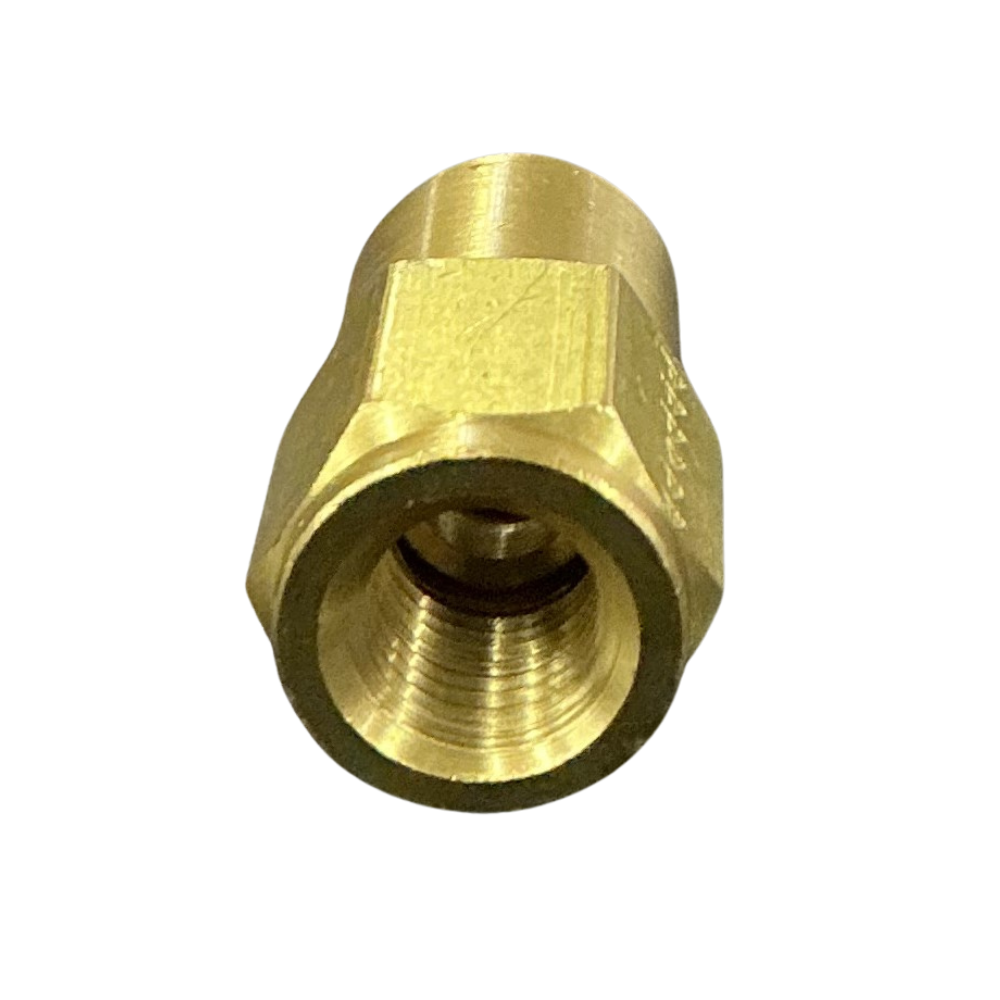

• Female 1/4 NPTF thread accepts the matching male connection.
• Integral release collet allows the tubing to be disconnected during servicing.
• Brass body with hexagonal tightening section and internal tube support.

Specifications and Materials

This straight DOT female connector combines an imperial push-in tube connection and smaller female pipe thread. A retained collet, tube support and seal form the push-in connection without a separate compression nut or olive.

Part number: DQ66DOT0804.

See the manufacturer DOT female connector specifications

Compatibility and Fitment

Confirm the tubing measures 1/2 inch across its outside diameter, not its internal bore. Confirm the mating port has a 1/4 NPTF male thread. This 1/2 x 1/4 NPTF female connector is not interchangeable with a 1/4-inch tube fitting, a 1/2 BSP thread or a connector carrying an external male pipe thread. Use suitable air-brake nylon tubing.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 35-660804, 35660804, 1866X8X4, NFP114-8-4, NFP11484

Related Parts

Check these alternative sizes if the existing air line or male port differs.

Compliance and Safety

Depressurise the air system before removal or installation. Cut the 1/2-inch tube squarely, discard scored or distorted ends, then push the tube fully home until it seats. Keep thread sealant out of the air passage. Check retention and leak-test both ends after repressurising.

Trailer Applications

Workshops fit this connection where larger nylon tubing runs to smaller threaded ports on compatible trailer brake, air-suspension and auxiliary pneumatic equipment. The straight arrangement suits layouts where the line approaches the port without a 90-degree change in direction.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers supplies imperial push-in fittings for truck and trailer air-line repairs. For unmarked fittings, send photos of both ends, the tube OD and port thread size.
