Description

Overview

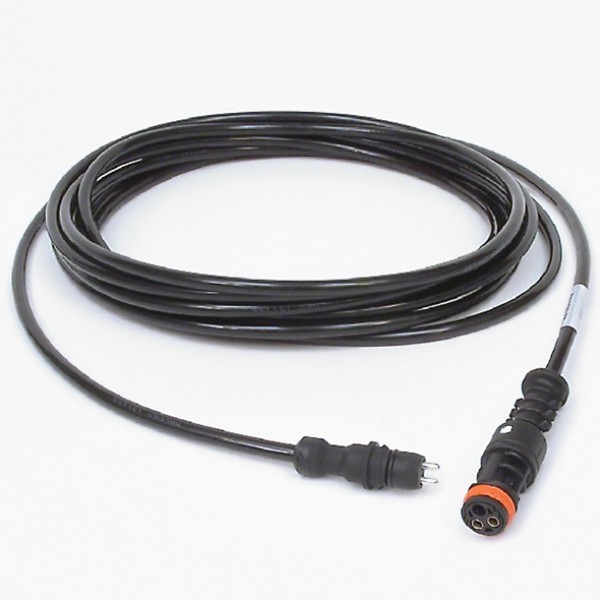

The Haldex 4m sensor extension cable extends the wheel speed sensor connection on compatible trailer EBS and ABS installations. Its 4m length provides extra routing distance between the axle sensor and braking-system harness while retaining black 2-pole connections at both ends.

Features

• 4m length for longer wheel speed sensor runs

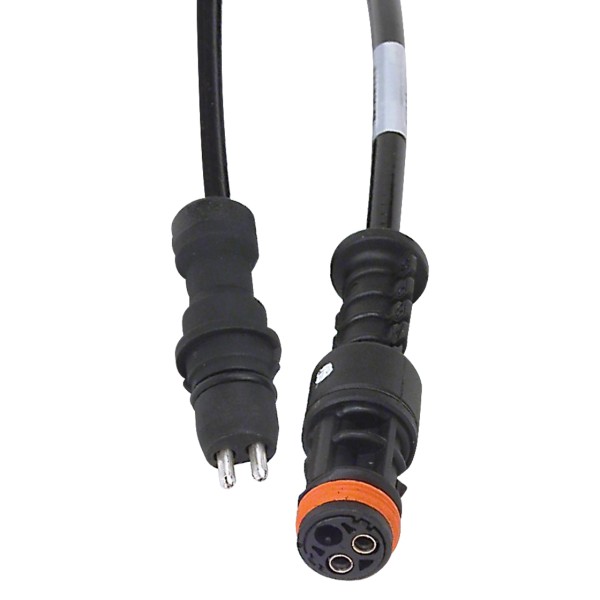

• Black 2-pole connectors at both ends
• PVC cable construction

Specifications and Materials

Length: 4m. Type: sensor extension cable. Connectors: 2-pole sensor connections at both ends. Material: PVC. Colour: black.

Part number: AP3486.

See the Haldex EB+ cable application guide for wheel speed sensor cable identification

Compatibility and Fitment

Check the required 4m length and 2-pole connector arrangement before fitting. Leave enough slack for axle and suspension movement, while keeping the lead clear of sharp edges and crush points.

The following cross-reference numbers identify verified equivalent or replacement parts for this exact application. Confirm the selection-critical fitment details against the part being replaced before fitting.

814004471

Compliance and Safety

Secure the cable so movement cannot pull on either connector. Inspect the mating sensor plugs for damaged seals, bent terminals or contamination before reconnecting the circuit.

Trailer Applications

The Haldex 4m sensor extension cable suits compatible trailer ABS and EBS installations that need additional distance between the axle wheel speed sensor and main braking-system wiring.

Cross-reference and Suitability

This part cross-references to the following verified equivalent or replacement part numbers:

Why Choose ICS Trailers

Sensor cables need the correct connector style and enough length to follow the trailer’s existing routing without stretching the lead. ICS Trailers can compare the old cable, plug shape and required run before you order.

• Check cable clips and wheel speed sensor connections while the wiring is accessible.
• Send connector photos and the required routing length if identification is uncertain.
