Description

Overview

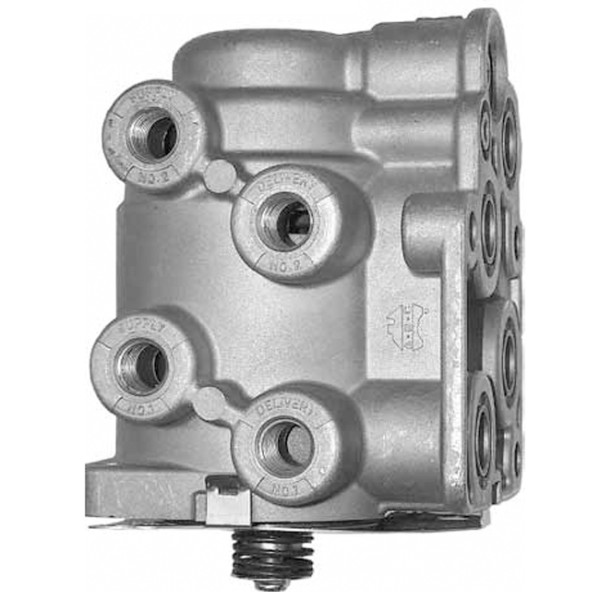

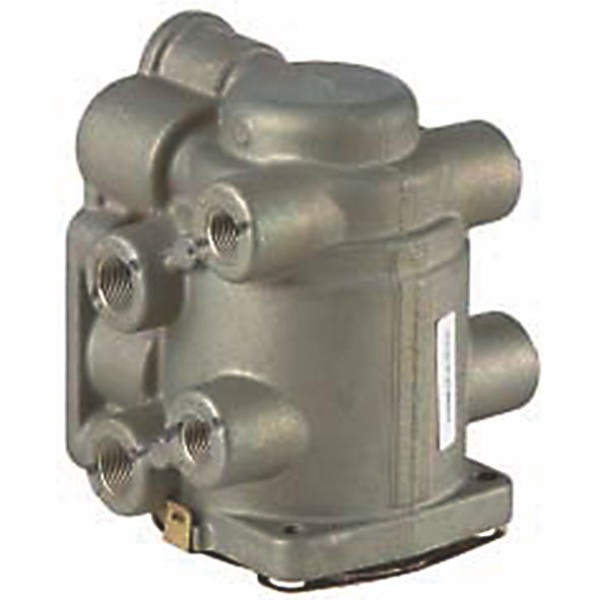

The Dual Brake Valve E7 gives dependable, graduated control of dual-circuit trailer brakes from a suspended foot pedal. Because it suits firewall or bulkhead mounting, installers can route lines neatly and, consequently, fleets gain consistent modulation with repeatable response.

Features

• Dual independent primary and secondary circuits for service and emergency braking
• Threaded rear supply and delivery ports for tidy plumbing on trailers
• Protected exhaust that simplifies installation and future service
• Designed for suspended pedal operation in heavy-vehicle applications

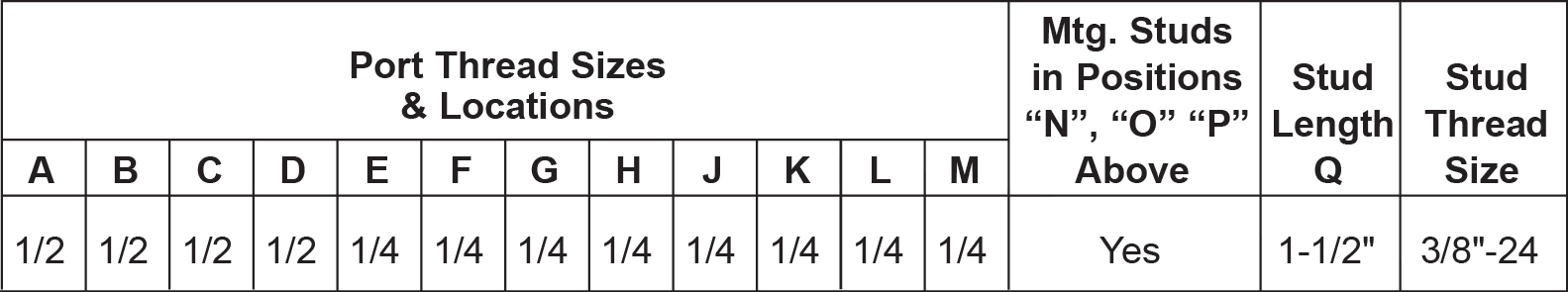

Specifications and Materials

Part number: AB8337.

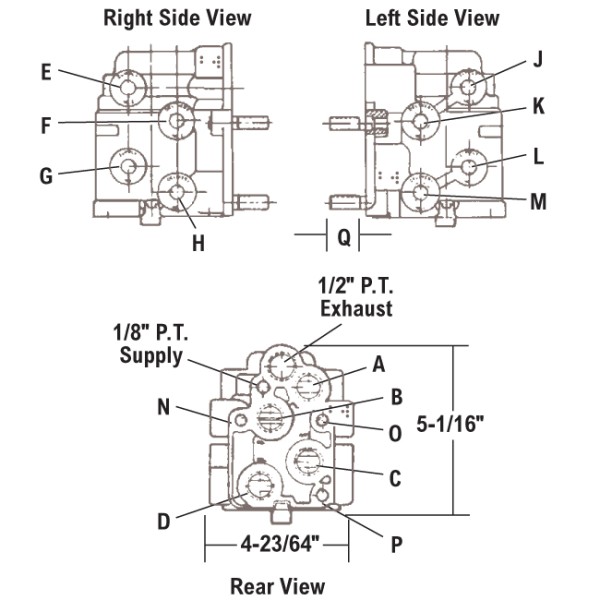

For operation, porting diagrams and service data, consult the Bendix E-7 manufacturer service sheet in this manufacturer technical guide.

Compatibility and Fitment

This cross-reference listing means this valve is a suitable replacement for the part numbers and applications shown. Some changes in air line plumbing may be required.
284760, 283301, R955284760, 282410, 283300, 283201, 284350, 284688, 285146, 287166, 287176, 50000988, 50000989, 30082, 75HA2A270AA, 97HA2A270AA, D0HA2A270C, D0H2ZA270AA, EDD0HA2A270C, 6944870, SA146, 401176, 8279284760, 030440, E-7

Compliance and Safety

Install the SCTEG Dual Brake Valve E7 with clean, thread-sealed fittings, then torque to specification. Next, pressure-test both circuits, verify balanced delivery, and confirm park and emergency performance. Finally, recheck for leaks after the first road test and record results.

Trailer Applications

Use this E7 dual brake valve on semi-trailers, dollies and heavy plant trailers that require dual-circuit foot control. Moreover, the compact body and rear-facing ports assist with tight installations while still allowing straightforward overhaul or replacement.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
