Description

Overview

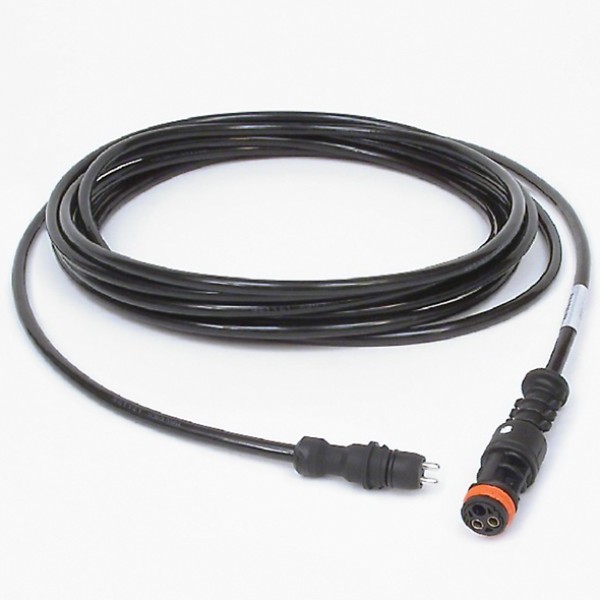

The Haldex 3m sensor extension cable extends the wheel speed sensor connection on compatible trailer EBS and ABS installations. It uses a black 2-pole sensor connection at each end and provides a 3m cable length for routing between the wheel-end sensor and the braking-system harness.

Features

• 3m cable length for extended wheel speed sensor routing

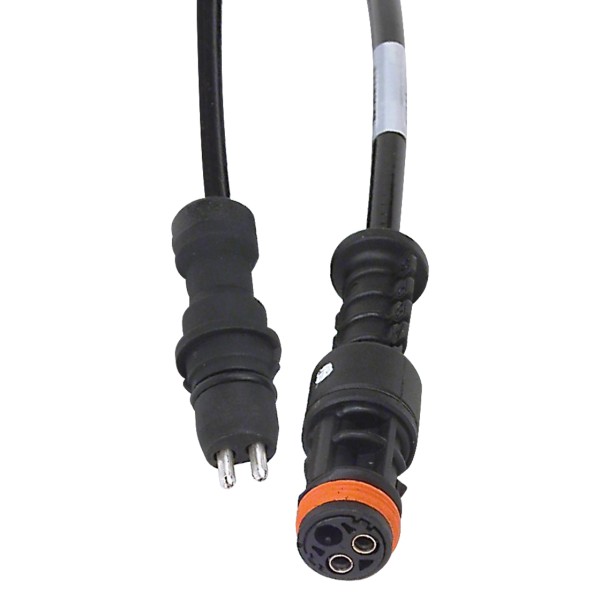

• Black 2-pole sensor connections at both ends
• PVC cable construction for trailer electrical service

Specifications and Materials

Length: 3m. Type: sensor extension cable. Connector arrangement: black 2-pole sensor connector to 2-pole wheel speed sensor connector. Material: PVC. Colour: black.

Part number: AP3484.

See the Haldex EB+ cable application guide for wheel speed sensor cable identification

Compatibility and Fitment

Check the required 3m length and 2-pole sensor connector arrangement before fitting. Route the cable away from moving suspension components, sharp edges and areas where the lead could be crushed or pulled tight.

The following cross-reference numbers identify verified equivalent or replacement parts for this exact application. Confirm the selection-critical fitment details against the part being replaced before fitting.

814004401

Compliance and Safety

Secure the cable so normal axle and suspension movement does not place tension on the connectors. Inspect the mating sensor plugs for damaged seals, bent terminals or contamination before reconnecting the wheel speed sensor circuit.

Trailer Applications

Workshops use the Haldex 3m sensor extension cable when a compatible trailer ABS or EBS wheel speed sensor requires additional cable length between the axle sensor and the main braking-system wiring.

Cross-reference and Suitability

This part cross-references to the following verified equivalent or replacement part numbers:

Why Choose ICS Trailers

Sensor extension cables need the correct connector style and enough length to reach the axle without leaving the lead under tension. ICS Trailers can help compare the old cable, connector shape and required routing length before you order.

• Check the wheel speed sensor plugs and cable clips while the wiring is accessible.
• Send photos of the connectors and the required cable run if identification is uncertain.
