Description

Overview

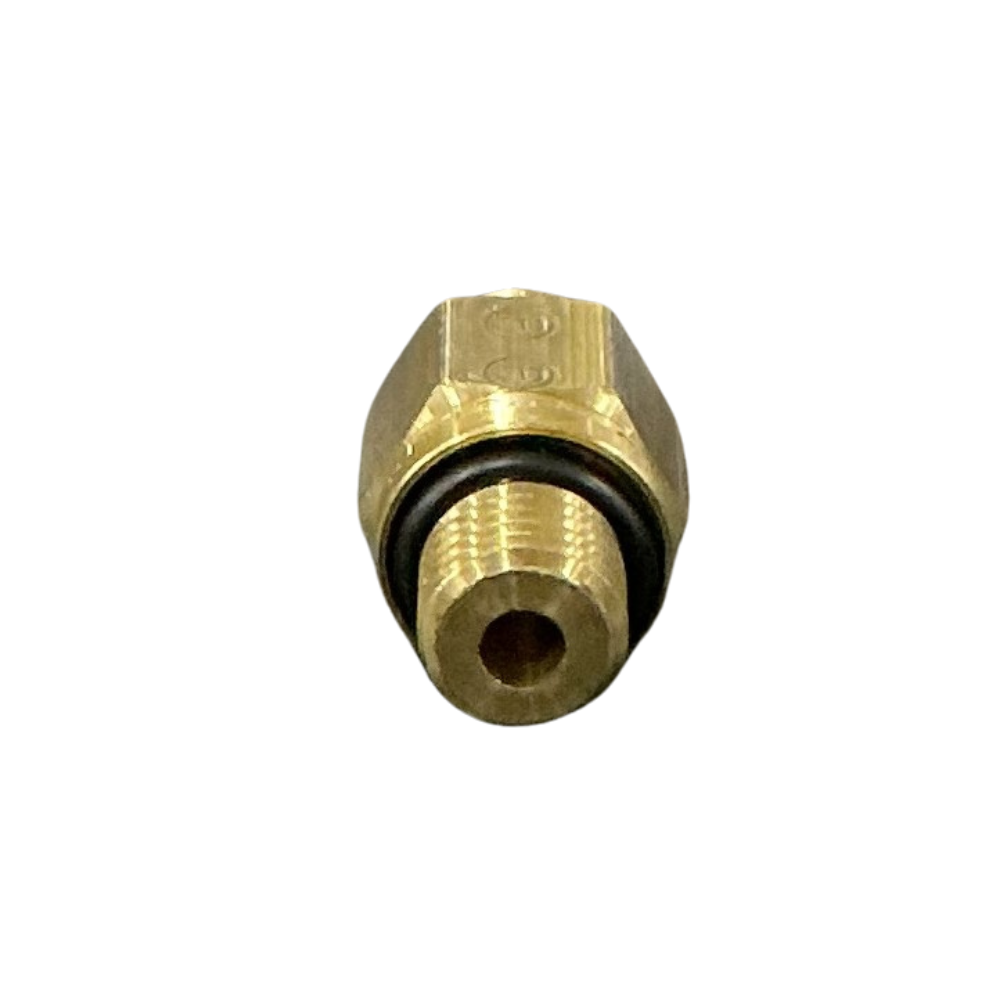

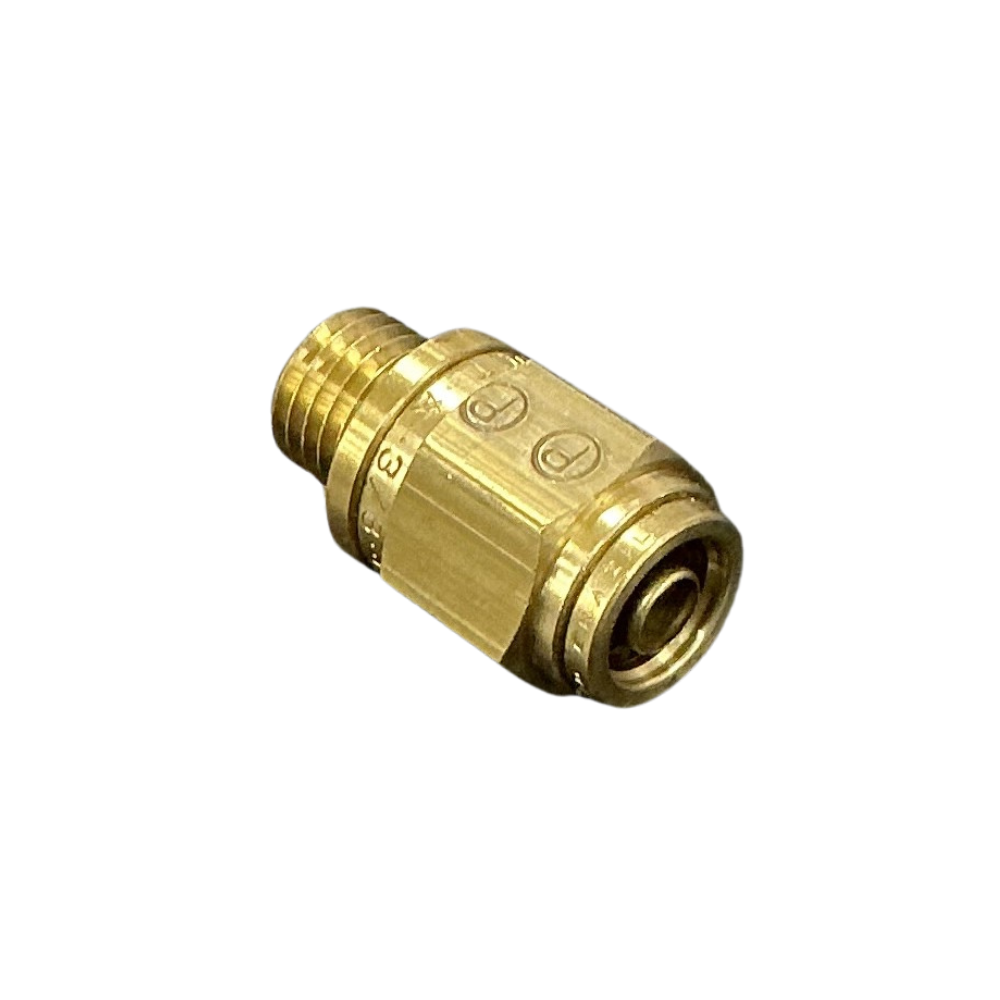

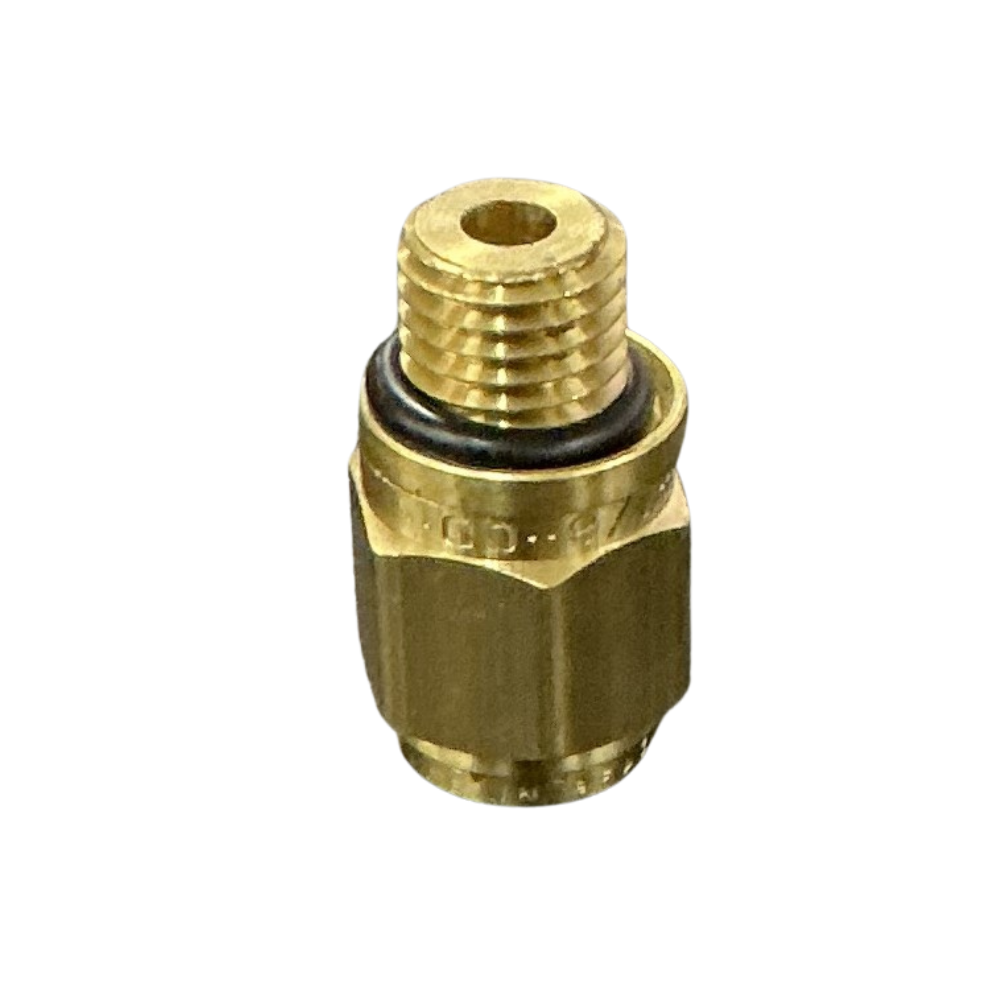

The 3/8 x M12 male connector joins 3/8-inch outside-diameter nylon air-brake tubing to an M12 x 1.5 female metric port. This straight brass push-in fitting provides a direct connection to compatible pneumatic valves, manifolds and other threaded components without requiring an additional adaptor or elbow.

Features

• Push-in tube connection accepts 3/8-inch OD imperial nylon air tubing.
• M12 x 1.5 external male metric thread.
• Brass hexagonal body provides a tightening surface.
• Integrated gripping collet retains the nylon tube securely.
• Straight configuration keeps the tube aligned with the threaded port.

Specifications and Materials

This QAF3-style DOT male connector features a brass body with an integrated push-in tube connection. The captive collet, internal support and sealing components eliminate the need for a separate compression nut or olive. The threaded end uses a metric connection rather than NPT or BSP.

Part number: 88-003-06M12.

See the manufacturer DOT air brake fitting chart

Compatibility and Fitment

The 3/8 x M12 male connector requires 3/8-inch OD (9.525mm) nylon tubing and a matching M12 x 1.5 female threaded port. Measure the tubing outside diameter and confirm the port’s thread pitch independently. Do not substitute 8mm or 10mm metric tubing, NPT threads, BSP threads or other metric thread pitches.

Inspect the original connection’s sealing arrangement before installation. A matching thread size does not automatically establish a compatible pneumatic seal.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. DQ68DOT06M12, 35-MT680612, 35MT680612, 1868X6XM12

Related Parts

Compare these alternate connections where the existing tube diameter or threaded port differs.

Compliance and Safety

Depressurise the pneumatic circuit before removing or installing the connector. Cut the nylon tube squarely, discard damaged or distorted ends and insert it fully into the push-in collet. Tighten the fitting using its hexagonal body and a sealing method appropriate to the mating port. Check tube retention and leak-test both connections after repressurising.

Trailer Applications

Suitable for compatible truck and trailer pneumatic installations where imperial 3/8-inch nylon air lines connect to M12 metric ports, including brake-control valves, suspension-control components and auxiliary air systems.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers supplies imperial and metric air-line connectors for heavy vehicle repairs. For an unmarked fitting, send the tube outside diameter, a photo of the threaded end and the port thread pitch to help identify the correct replacement.
