Description

Overview

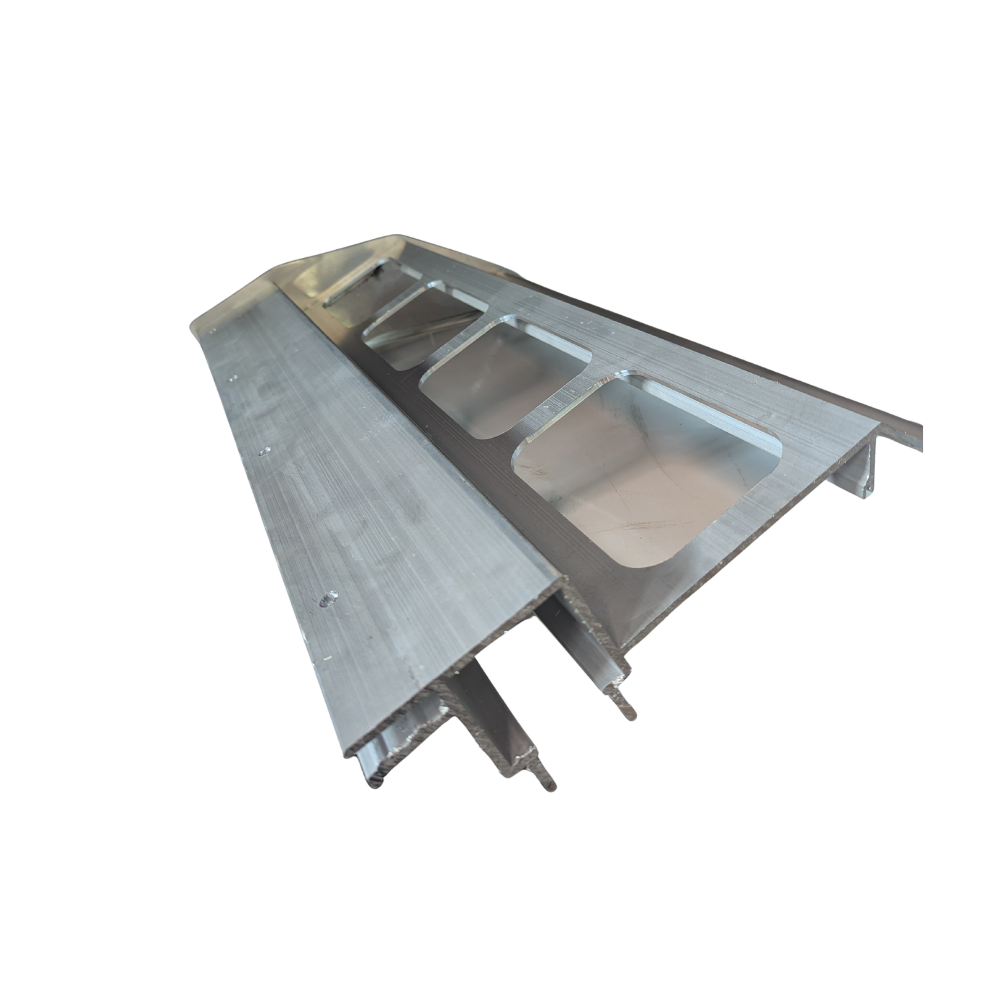

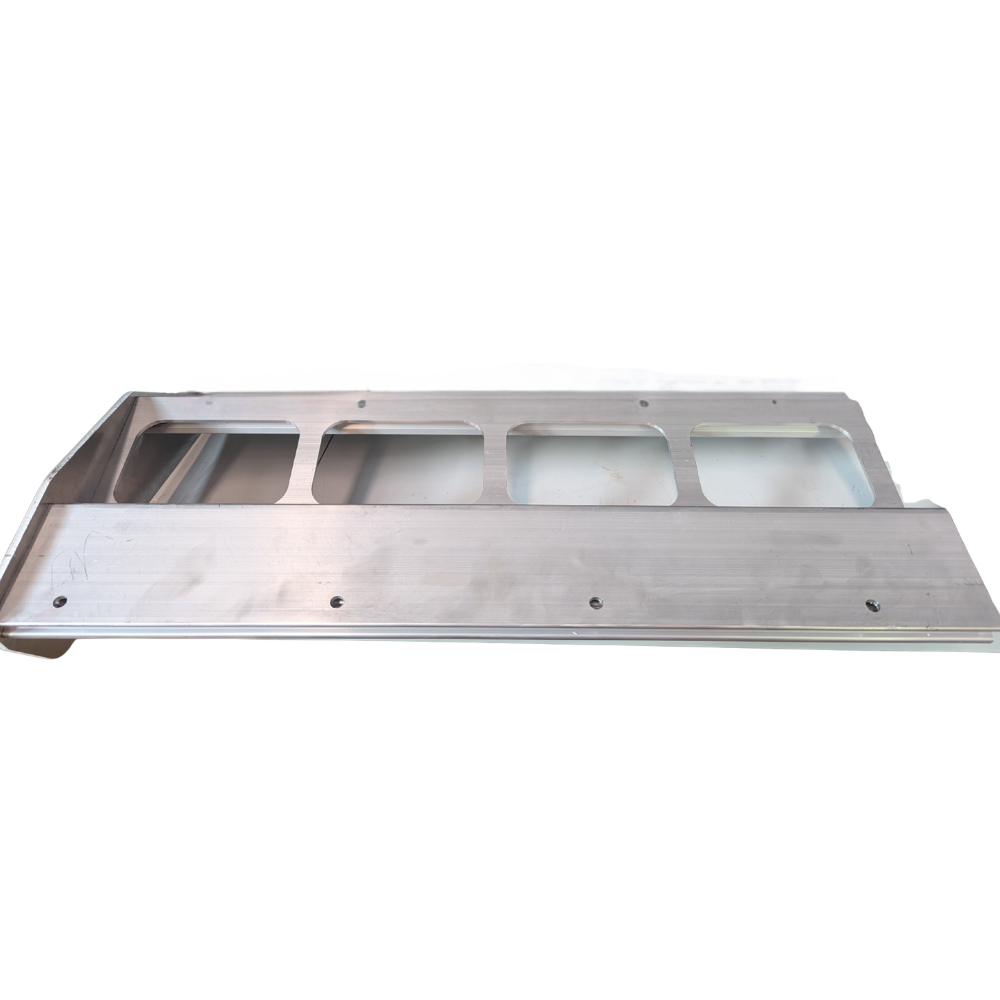

The four light quarter guard forms the left-hand rear corner and lamp mounting panel on suitable truck and trailer body installations. Four rectangular openings provide a ready-made layout for the rear lamps, while the shaped alloy end plate finishes the outer corner profile.

Features

• Left-hand body orientation
• Four rectangular lamp openings
• Folded aluminium alloy panel construction
• Pre-drilled lower mounting flange with rear support channels

Specifications and Materials

Product type: left-hand four-light quarter guard.

Material: aluminium alloy.

Light configuration: four rectangular openings.

Mounting style: drilled lower flange with folded rear channels.

Part number: MGQGAL4.

Review the current Australian Design Rules for vehicle lighting installation

Compatibility and Fitment

Compare the left-hand profile, overall panel length, light-opening dimensions and mounting-hole centres with the existing bodywork before ordering. The main mismatch risks are selecting the opposite-hand panel or a three-light quarter guard instead of this four-opening version.

Confirm that the lamp bodies, rubber grommets, electrical plugs and wiring will clear the folded channels behind the panel. Check the adjoining body panels and mounting surface so the shaped end plate sits in the correct direction.

Compliance and Safety

Secure the guard through the intended mounting points and inspect the supporting bodywork for cracking or distortion. Protect lamp wiring from sharp aluminium edges, vibration and water entry. After installation, confirm that each lamp remains securely mounted, visible and correctly positioned for the vehicle application.

Trailer Applications

Workshops fit this panel during rear body repairs, replacement of damaged alloy corners and fabrication of four-lamp lighting arrangements. It suits truck and trailer bodies that use the quarter guard as both an outer corner panel and a mounting structure for the rear lamps.

Why Choose ICS Trailers

Quarter guards can differ in hand, lamp count, opening dimensions and folded mounting geometry despite having a similar overall appearance. ICS Trailers can compare photographs, panel measurements, lamp cut-outs and mounting-hole centres with the existing installation. Supplying these details is particularly important when replacing fabricated bodywork or matching a new guard to an established rear lighting layout.
