Description

Overview

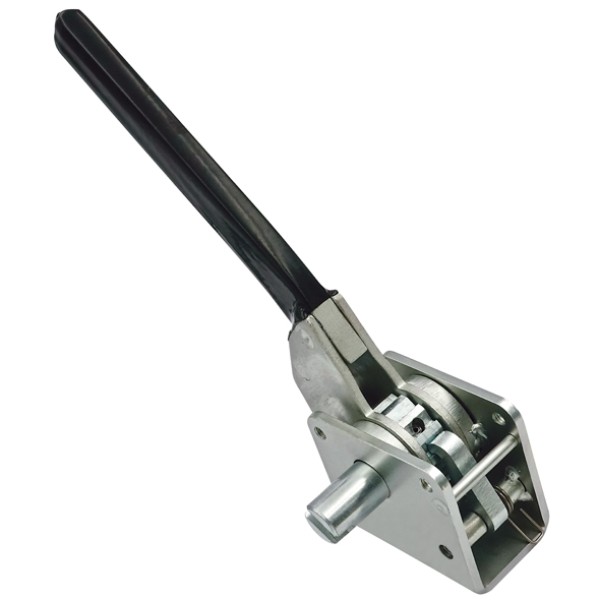

Curtain Tensioner 100 Series Left Hand is a quick-release curtain hardware latch that tensions and locks a curtainsider trailer curtain so it stays tight on the road. This left-hand tensioner uses a straight handle and an auto-lock action, so drivers can secure the curtain quickly at each stop. Because it uses the 100mm small base pattern, it suits compact mounting points where clearance matters.

Features

• Straight handle for predictable leverage during tensioning
• Quick release auto lock mechanism that holds tension after closing
• 100mm small base footprint for common compact mounts
• Left-hand orientation for LH front or RH rear positions

Specifications and Materials

• Series: 100
• Handle style: straight
• Locking type: quick release with auto lock
• Base: 100mm small base

Part number: CV4101.

Read the NTC Load Restraint Guide for general load restraint guidance.

Compatibility and Fitment

This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown. Some changes in installation may be required. CV4102

Check the handedness before ordering, because left-hand and right-hand tensioners mount differently on the trailer. Also confirm your mounting hole pattern and base footprint, then inspect the catch and keeper for wear so the mechanism can lock cleanly. If your current unit releases under vibration, replace worn keepers at the same time to maintain curtain tension.

Compliance and Safety

Always restrain the load to suit the vehicle and the freight, and do not assume a curtain alone provides load restraint. If your trailer uses rated curtains or gates, inspect the system regularly, keep latches adjusted, and replace damaged hardware straight away. When you service the tensioner, keep fingers clear of pinch points because the lever can close with force.

Trailer Applications

Use Curtain Tensioner 100 Series Left Hand on curtainsider and tautliner trailers, as well as van bodies that use side curtains for access. It suits fleet maintenance when a latch becomes loose, difficult to close, or slow to release. The straight handle also helps when space is tight beside the load, so the operator can apply steady tension without twisting.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Confirm the mounting position and handedness during selection, and replace fatigued keepers or tracks if they no longer hold tension.

Why Choose ICS Trailers

ICS Trailers supplies curtainsider hardware that suits heavy trailer service, and we back it with practical product knowledge. You can also consolidate other body and trailer parts in the same order, which reduces downtime during repairs. If you are standardising across a fleet, Curtain Tensioner 100 Series Left Hand helps keep operation consistent across drivers and trailers.

Browse Container, Van & Tipper parts at ICS Trailers for more curtainsider hardware.
