Description

Overview

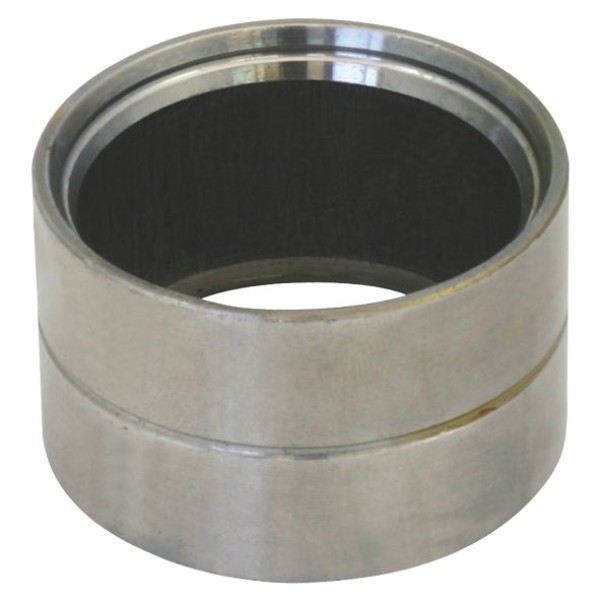

Ringfeder 40mm towing eye bush restores the bush bore in 40mm tow coupling and drawbar eye service. This genuine replacement bush suits 40mm tow coupling applications where the existing towing eye bush has worn, loosened or needs replacement during inspection.

Features

• Genuine Ringfeder towing eye bush for 40mm tow coupling applications
• Measures 48.5mm outside diameter, 40mm inside diameter and 45mm high
• Suits 40mm drawbar eye and tow coupling service work
• Matches Ringfeder 40mm towing eye bush replacement number 10995485

Specifications and Materials

Product type: towing eye bush for 40mm tow coupling and drawbar eye applications.

The bush measures 48.5mm outside diameter, 40mm inside diameter and 45mm high.

Part number: TC8303G.

Check the towing eye bore, outside diameter and height before ordering because 40mm tow eye bushes are available in multiple outside diameters.

Use the manufacturer towing eye bush reference when matching this bush to the drawbar eye assembly

Compatibility and Fitment

Match the towing eye size and bush dimensions before fitting. Ringfeder 40mm towing eye bush suits 40mm tow coupling applications and Ringfeder drawbar eye type 440 setups.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 10995485

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Inspect the towing eye, bush bore and coupling contact area before fitting. If the eye shows cracking, ovality, heavy wear or impact damage, replace the affected parts before the trailer returns to service.

Trailer Applications

Workshops replace towing eye bushes during tow coupling inspections, drawbar eye servicing and trailer maintenance. It suits heavy trailer setups running 40mm tow coupling hardware where the bush needs to restore the correct 40mm bore.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers supplies towing eye and coupling parts for heavy trailer servicing, repair work and parts-counter replacement. Check the towing eye size and bush dimensions before ordering.
