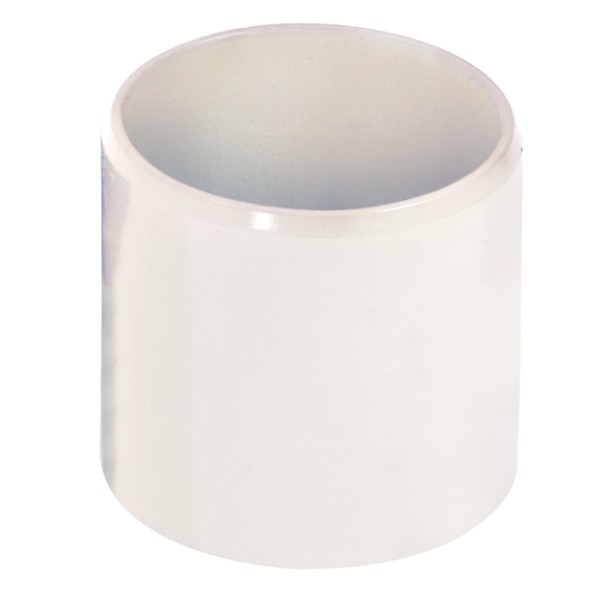

Ringfeder Bearing Bush Pair 96 101 202 303
Ringfeder Bearing Bush Pair 96 101 202 303
$79.00
Genuine bearing bush pair for Ringfeder 96 AUS, 101 AUS, 202 AUS and 303 AUS tow couplings. O.D 70.67mm, I.D 63mm and 68.40mm length.
Part number TC7201G.
Description
Overview
Ringfeder bearing bush pair suits Ringfeder 96 AUS, 101 AUS, 202 AUS and 303 AUS tow coupling service applications. This genuine bearing bush pair replaces the bearing bush position in the coupling assembly and gives the drawbar-side service point the correct bore, outside diameter and length for the listed models.
Features
- Sold as a pair for coupling service work.
- Suits Ringfeder 96 AUS, 101 AUS, 202 AUS and 303 AUS tow couplings.
- 70.67mm outside diameter, 63mm inside diameter and 68.40mm length.
- Genuine bearing bush for the listed Ringfeder coupling applications.
Specifications and Materials
Product type: tow coupling bearing bush pair.
Part number: TC7201G.
Outside diameter: 70.67mm.
Inside diameter: 63mm.
Length: 68.40mm.
Pack contents: 2 bearing bushes.
Use the manufacturer technical page for Ringfeder technical data.
Compatibility and Fitment
Match the coupling model and the old bush dimensions before ordering. The main mismatch risk is choosing a similar Ringfeder bush for a different coupling family, so check the model marking and compare the bore, outside diameter and length against the removed part.
These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 14 994 876, 14994876.
Related Parts
Check the related service parts below against the trailer setup before ordering.
| Use | Part number | Part type |
|---|---|---|
| Related version | TC7201P | Polyurethane bearing bush |
| Used with | TC7202G | Rubber spring block |
| Used with | TC7203G | Tension washer |
| Used with | TC7122G | Castellated nut M45 x 3 |
| Used with | CH7512 | Split pin |
| Used with | TC7215G | Protecting cap |
| Service kit | TC7503G | Coupling repair kit |
Compliance and Safety
Inspect the coupling assembly for wear before refitting. Replace worn bushes, check the mating parts for damage, and make sure the rear nut, washer and split pin arrangement is secured correctly after service.
Trailer Applications
Workshops fit this bearing bush pair during Ringfeder tow coupling repairs on heavy trailer, dolly and drawbar towing setups using the listed 96 AUS, 101 AUS, 202 AUS and 303 AUS coupling models.
Cross-reference and Suitability
This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
| 14 994 876 | 14994876 |
Why Choose ICS Trailers
ICS Trailers supplies tow coupling service parts for workshop repairs, including bushes, springs, washers, caps, nuts and related Ringfeder components. If the old bush is worn or hard to identify, compare the model marking and dimensions before ordering.
