Description

Overview

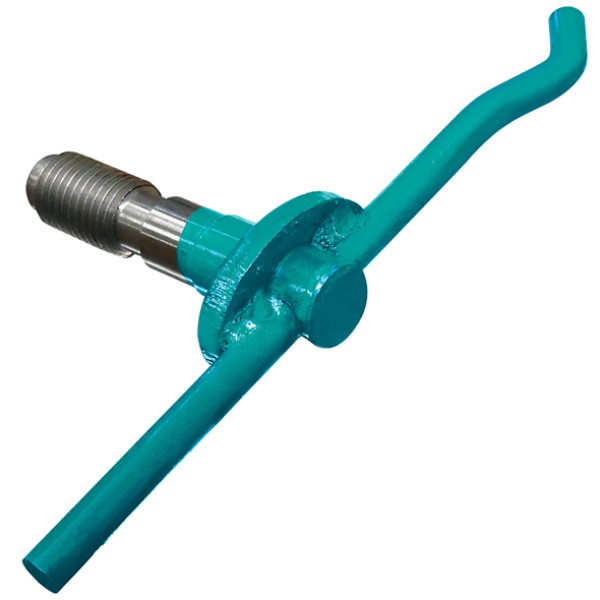

The Bartlett 95mm clamping bolt with handle operates the manual clamping mechanism on the truck-side 375DX ball coupling. This high tensile replacement suits repairs where the original bolt, thread or operating handle is bent, damaged, heavily corroded or no longer moves correctly.

Features

• High tensile clamping bolt for the 95mm 375DX coupling.
• Includes the operating handle as part of the assembly.
• Truck-side component within the ball coupling clamp mechanism.
• Works with the matching compression spring and coupling hardware.

Specifications and Materials

Product type: high tensile clamping bolt with handle. Coupling size: 95mm. Coupling model: 375DX. Mounting position: truck side. Pack contents: one clamping bolt with fitted operating handle.

Part number: TC0529.

Use the current Australian Design Rules when checking mechanical connection requirements

Compatibility and Fitment

Match the bolt to a 95mm 375DX truck-side coupling before ordering. Compare the old bolt length, thread, handle shape and spring arrangement because the larger 127mm Bartlett coupling uses a different clamping bolt.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 95006001, 375/6, 3756, 375-6

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Inspect the clamping bolt thread, handle, compression spring, mating surfaces and retaining hardware during installation. Confirm the handle moves through its full operating range, the clamp seats correctly and the coupling remains securely engaged before towing.

Trailer Applications

Workshops replace this bolt during repairs and rebuilds of 95mm 375DX truck-side ball couplings fitted to heavy vehicle and trailer towing combinations.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

Clamping bolts can look similar across Bartlett coupling sizes, but the bolt length, thread, handle geometry and spring arrangement must match the 95mm 375DX assembly. ICS Trailers can help compare old markings, coupling size, photos and surrounding hardware before supply. When the clamp bolt is worn, inspect the compression spring, main bolt, retaining hardware and cap at the same time so the repair addresses the complete truck-side clamping mechanism.
