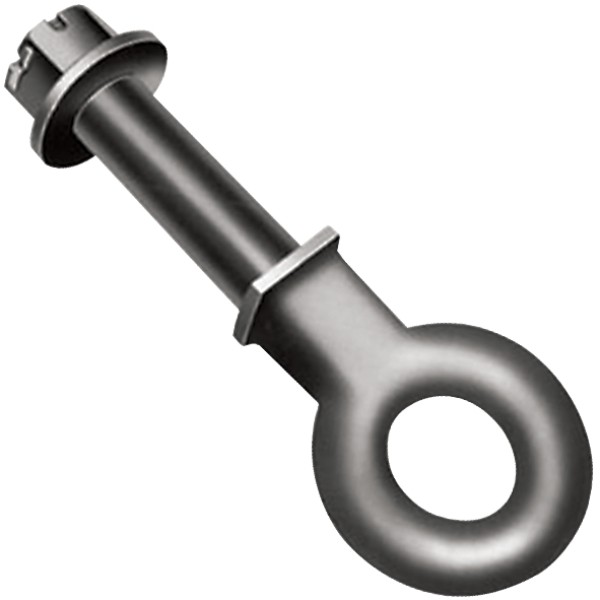

Bolt-on drawbar towing eye restores a rated shank-mounted towing point for heavy trailer and semi-trailer coupling setups. It suits straight tongue and hinged tongue trailer applications where a 3″ I.D. eye and 2″ threaded shank are required.

Features

• Forged, heat treated one-piece steel eye and shaft for heavy towing service.
• Induction hardened eye contact area helps resist wear against the pintle horn or coupler jaw.
• Includes washer, castle nut and cotter pin for the shank mounting assembly.
• Bolt-on drawbar towing eye format allows replacement without welding the towing eye to the trailer tongue.

Specifications and Materials

Part number: TC3491.

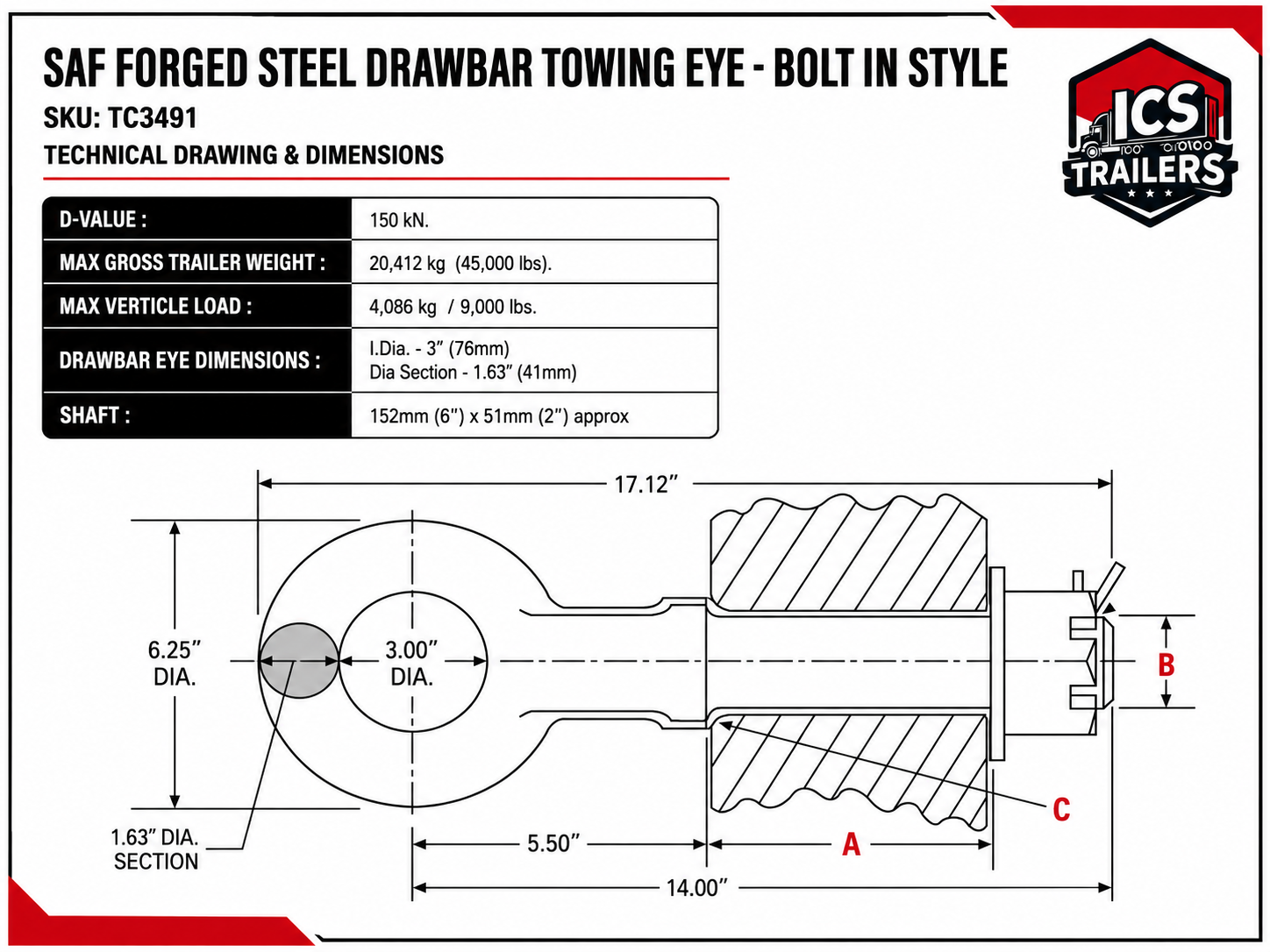

This bolt-on drawbar towing eye has a 3″ I.D. eye, 1.63″ diameter eye section and 2″ outside diameter threaded shank. Maximum gross trailer weight is 20,412 kg, maximum vertical load is 4,082 kg, and D-value is 150 kN.

See the manufacturer technical page for published coupling data.

Compatibility and Fitment

Match the eye I.D., eye section, shank diameter, tongue thickness, mounting structure and coupling rating before ordering. Also confirm the installation torque and any off-road capacity reduction before the trailer returns to service.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. DB-1249-49, DB124949, 51337, BDB124949

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Inspect the eye contact area, shank, nut, washer and cotter pin during service. Replace the drawbar if wear, deformation, cracking or impact damage affects the towing eye profile. For off-road work, reduce the published capacities by 25% and confirm the coupling structure suits the application.

Trailer Applications

Workshops fit this part to trailers, semi-trailers, doubles and equipment that run heavy pintle or jaw-style tow coupling systems. It suits over-the-road towing within the rated capacities, while off-road use needs closer attention to load rating and coupling setup.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers supports heavy trailer operators with trailer parts suited to fleet repair, workshop servicing and replacement coupling work. Browse more tow couplings from ICS Trailers
