Description

Overview

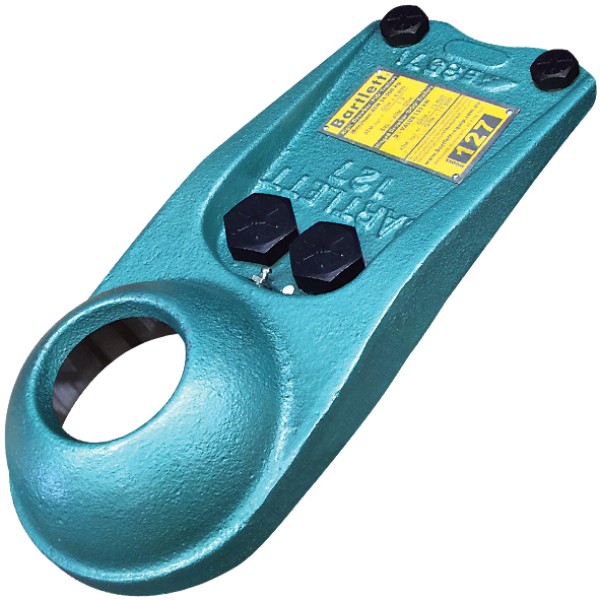

Bartlett 127mm hood assembly carries the trailer-side socket section for Bartlett 127mm ball coupling setups. It replaces the hood section on pig, tag and dog trailers where the coupling face, mounting area or hardware has reached service limit.

Features

• Trailer-side hood assembly for Bartlett 127mm ball coupling setups.
• Includes mounting bolts for the 127mm hood installation.
• Supports rigid drawbar pig trailer applications up to 24,000kg Max ATM.
• Supports hinged drawbar dog trailer applications rated at 155 kN D-Value and 45,000kg Max ATM.

Specifications and Materials

The Bartlett 127mm hood assembly matches Bartlett 127mm ball coupling systems and works with the matching truck-side ball assembly. It also allows 22.5 degrees of oscillation fore, aft and twist.

Part number: TC0505AX.

Use the manufacturer coupling information when checking general Bartlett coupling ratings and fitment details

Compatibility and Fitment

Match the 127mm hood size, drawbar type, mounting bolt pattern and trailer rating before ordering. These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 127190001, 59AX

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Confirm the towbar, drawbar, fasteners and safety chain equipment suit the application before the trailer returns to service. If the mounting area shows elongation, cracking or movement, repair the structure before fitting the new hood assembly.

Bartlett ball couplings carry ADR 62 compliance, but the final installation still needs correct professional fitment and rating checks.

Trailer Applications

Workshops fit the Bartlett 127mm hood assembly on heavy trailer combinations that use Bartlett 127 ball coupling gear. The 127mm setup suits rigid drawbar pig and tag trailers, and it also supports hinged drawbar dog trailer work where the rated coupling, drawbar and tow vehicle match.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers stocks tow coupling parts for trailer repairers, fleet maintenance and parts counters working through Bartlett coupling service jobs with complete kit and companion part requirements.
