Description

Overview

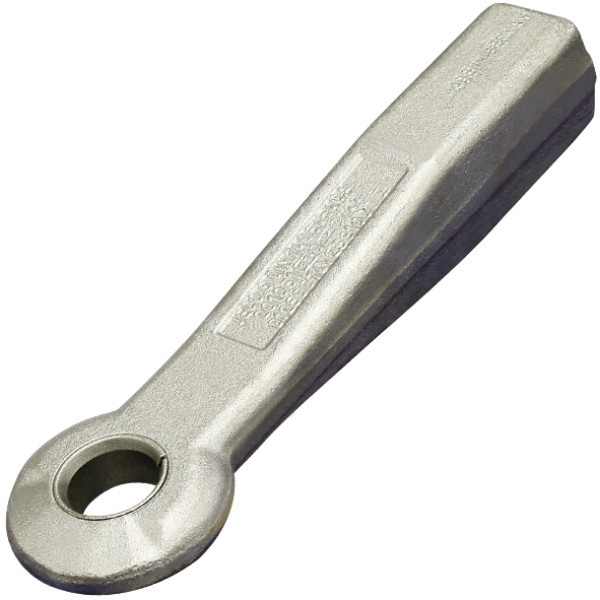

The 40mm weld on tow eye is a heavy trailer drawbar eye for dolly, dog and pig trailer applications where the towing eye is welded into the drawbar. It combines a 40mm internal eye diameter with a 65mm x 60mm fluted shank, so bore size, shank dimensions and coupling rating are the key checks before replacement.

Features

• 40mm internal drawbar eye diameter.
• 125kN D-value and 74kN Dc-value.
• 1000kg S-load with 23kN V-value.
• 65mm x 60mm fluted shank for welded drawbar installation.

Specifications and Materials

Manufacturer reference: OC40W04. Approval reference: CTA-039582.

Part number: TC7157.

Use the SAF-HOLLAND OC40W product information when checking drawbar eye standards and installation requirements

Compatibility and Fitment

Match the 40mm bore, 65mm x 60mm fluted shank, coupling ratings and welded drawbar arrangement before ordering. Similar 40mm eyes can carry different ratings or use a different shaft profile, so bore size alone is not enough to identify the correct replacement.

Related Parts

The replacement bush below suits the OC40W drawbar eye family.

Compliance and Safety

Inspect the eye bore, bush, shank and weld area for wear, cracking or distortion before fitment. Welding and final coupling installation must suit the drawbar structure, trailer rating and approval requirements.

Trailer Applications

This tow eye suits dolly, dog and pig trailer drawbars where a fixed welded 40mm coupling eye matches the required load ratings and shank dimensions.

Why Choose ICS Trailers

For replacement work, compare the old eye markings, 40mm bore, 65mm x 60mm fluted shank and rating details. If any of those differ, send through the existing eye markings and measurements before ordering.
