Description

Overview

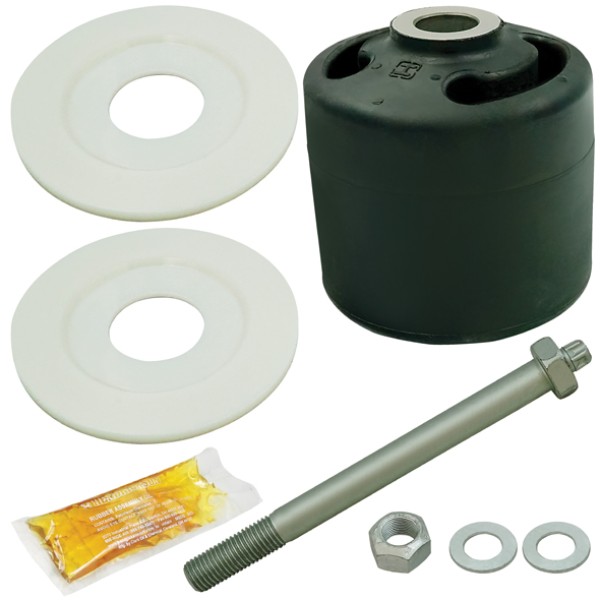

Hendrickson Quick Align pivot bush kit replaces the wide tri-functional pivot bush used in the suspension pivot connection. This aftermarket kit suits Hendrickson HT230, HT250, HT300 and INTRAAX suspension applications where the wide bush version matches the existing setup.

Features

• Suits Hendrickson HT230, HT250, HT300 and INTRAAX suspension applications.
• Wide bush version for Quick Align pivot connection servicing.
• Includes one pivot bush kit for one suspension pivot point.
• Supports replacement where the pivot bush or hardware has worn, moved or failed inspection.

Specifications and Materials

The Hendrickson Quick Align pivot bush kit supplies one wide pivot bush and hardware kit for trailer suspension pivot servicing. Match the suspension series, bush width and pivot hardware style before fitting.

Part number: SP8916.

Use the Hendrickson Australian trailer parts guide for manufacturer trailer pivot hardware data.

Compatibility and Fitment

Check the existing bush width, suspension model and Quick Align hardware before ordering. These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. S-31624, S31624, A-31624, A31624, E10729A

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Inspect the pivot connection, alignment collars, bush seat and fasteners during replacement. If the pivot connection has been loosened, damaged or disturbed, replace the required hardware and torque the assembly to the suspension manufacturer’s procedure.

Trailer Applications

Workshops fit this wide pivot bush kit when servicing Hendrickson trailer suspension pivot points on HT and INTRAAX setups. The Hendrickson Quick Align pivot bush kit helps restore the pivot connection when the existing bush no longer holds the suspension beam correctly.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
