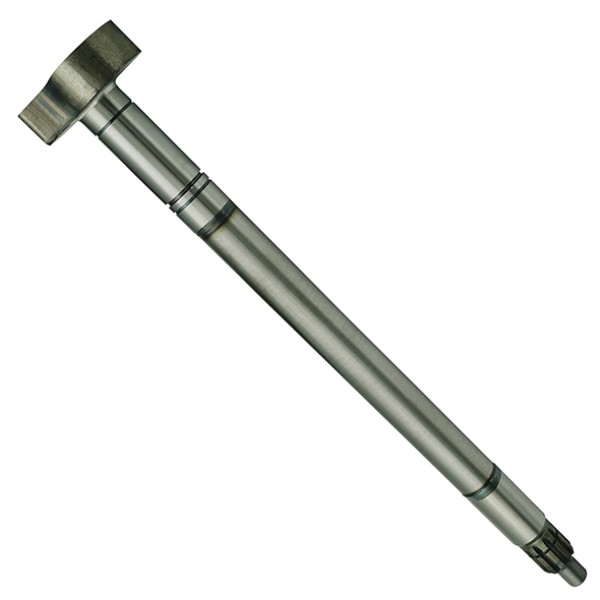

Right Hand Brake Camshaft Suit BPW New Gen
Right Hand Brake Camshaft Suit BPW New Gen
$70.00
Right hand brake camshaft suit BPW New Gen trailer axles, with 10 splines, 42mm cam end and 631mm over-thread measurement for workshop brake repairs.
Part number FB2060.
Description
Overview
Right Hand Brake Camshaft Suit BPW New Gen restores correct S cam movement in compatible BPW New Generation trailer drum brake assemblies. This camshaft suits right-hand brake positions, so it helps keep the brake shoe actuation matched to the axle side during service or replacement.
Features
- Right-hand S cam brake camshaft for BPW New Generation trailer axle setups
- 10 spline configuration for matching compatible slack adjusters
- 42mm cam end with 42mm / 22mm spline end diameter
- Reference measurements include A 631mm over thread and B 20mm / 99mm / 108mm
Specifications and Materials
Right Hand Brake Camshaft Suit BPW New Gen carries the cam profile and spline arrangement needed for compatible BPW New Generation drum brake assemblies.
The cam end measures 42mm, while the spline end measures 42mm / 22mm.
Check the 10 spline count, right-hand orientation and A / B measurements before fitting.
Select the aftermarket or genuine option to match the job.
Part number: FB2060.
See the manufacturer technical guide for BPW drum brake system context
Compatibility and Fitment
Match the handed side, spline count, shaft dimensions and brake assembly before ordering this Right Hand Brake Camshaft Suit BPW New Gen.
These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 0509705261, 05.097.05.26.1, BP7038, IT3327, WT2040
Related Parts
Check the related service parts below against the trailer setup before ordering.
| Use | Part number | Part type |
|---|---|---|
| Opposite side | FB2059 | Left-hand S cam |
| Service kit | FB2321 | S cam bush repair kit |
| Service kit | FB3126 | S cam washer and circlip kit |
| Used with | FB3337 | S cam brake hardware kit |
| Bracket to suit | FB3011G | Camshaft inner bracket |
| Bracket to suit | FB3010G | Camshaft outer bracket |
Compliance and Safety
Inspect camshaft bushes, brackets, rollers, return springs and slack adjuster condition during brake servicing. If wear marks, excess play or damaged hardware appear, replace the affected parts before the trailer returns to service.
Trailer Applications
Workshops and fleets use this camshaft when servicing BPW New Generation drum brake axles on semi trailers, dog trailers and heavy transport combinations. It suits brake repairs where the right-hand camshaft, spline count and measured dimensions all match the removed part.
Cross-reference and Suitability
This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
| 0509705261 | 05.097.05.26.1 | BP7038 |
| IT3327 | WT2040 |
Why Choose ICS Trailers
ICS Trailers helps workshops match BPW New Gen brake camshafts against handed side, spline count and axle brake dimensions before parts leave the counter.
