Description

Overview

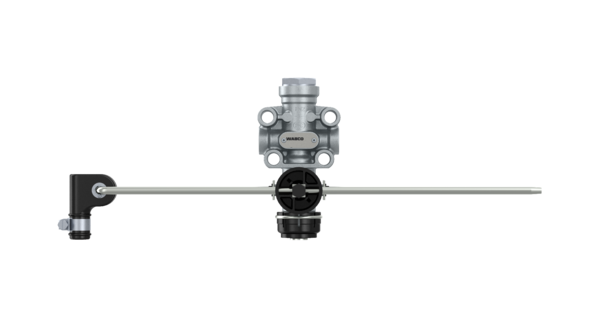

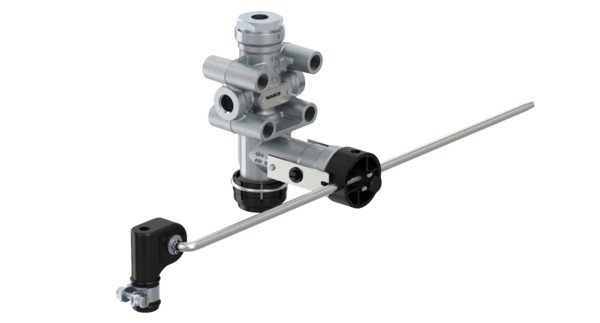

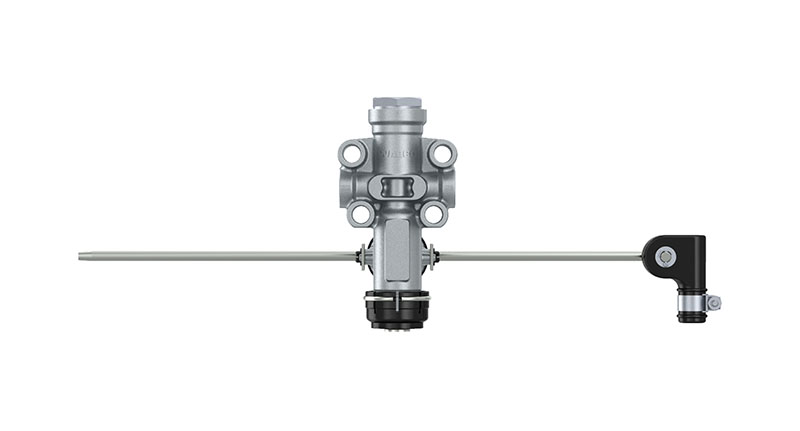

WABCO levelling valve assembly controls air suspension ride height on compatible truck and trailer chassis systems. This Config C00 assembly includes fittings, so it suits workshop replacement jobs where the valve and fitting setup need to be ordered together.

Features

• Includes levelling valve assembly with fittings.
• 2-circuit chassis levelling valve for conventional air suspension control.
• 13.0 bar maximum operating pressure with 90° actuation angle.
• M12 x 1.5 service ports with integrated silencer on port 3.

Specifications and Materials

This WABCO levelling valve assembly uses an aluminium body with 40/50mm mounting hole spacing, 4 x Ø8.8mm mounting points and 3.0mm nominal diameter. Port 1, port 21 and port 22 use M12 x 1.5 threads, while port 3 runs through an integrated silencer. Part number: 464-006-002-0-C00.

The assembly includes fittings for the Config C00 setup. Match the valve configuration, air line layout, fitting arrangement and suspension control setup before ordering.

See the WABCO levelling valve catalogue page

Compatibility and Fitment

Check the existing valve number, port layout, mounting pattern and linkage setup before fitting this WABCO levelling valve assembly. Also confirm the included fittings suit the air line arrangement on the vehicle or trailer.

These cross-references show where this valve replaces the part numbers and applications listed. Some air line changes may be needed. 4640060020, 464 006 002 0, 4640060020, PRO0060030

Compliance and Safety

Depressurise the air suspension system before removing the old valve. Inspect air lines, fittings and mounting points, then replace damaged parts before returning the vehicle to service. After fitting, check for air leaks and confirm the suspension reaches the correct ride height through the full operating range.

Trailer Applications

Workshops fit this WABCO levelling valve assembly during air suspension repairs on heavy vehicle and trailer chassis systems. It suits replacement work where ride height control depends on the correct valve configuration, port layout and fitting setup.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
