Description

Overview

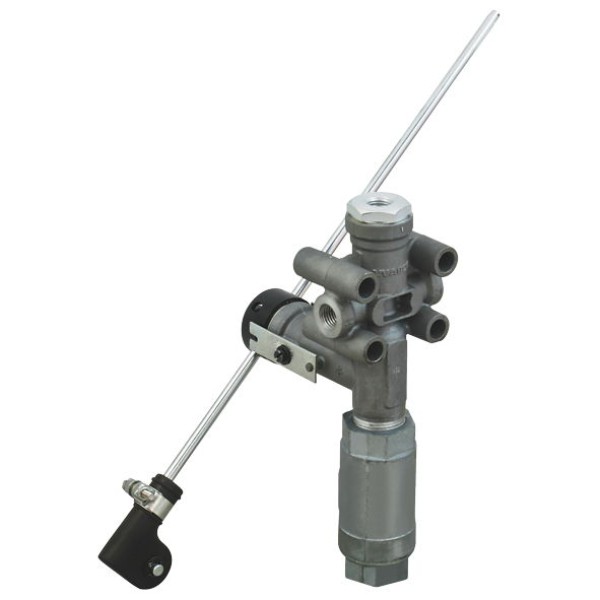

Wabco Height Control Valve With Hold Back controls ride height in trailer air suspension systems. It meters air to the suspension circuit, so the trailer can maintain the intended running height as load changes.

Features

• Genuine WABCO valve with hold back
• M12 x 1.5 port threads
• Aluminium body with integrated silencer
• 40/50mm hole spacing with 4 x 8.8mm mounting holes

Specifications and Materials

This Wabco Height Control Valve With Hold Back has a 2-circuit aluminium body, a 90 degree actuation angle and a 3.0mm nominal diameter. It runs up to 13.0 bar, works from -40°C to +80°C and comes with a lever. Part number: SP0211HBG. See the official WABCO levelling valve catalogue entry for detailed technical data.

Compatibility and Fitment

Match the port thread, mounting pattern, lever arrangement and hold back setup before ordering. This cross-reference listing means this valve is a suitable replacement for the part numbers and applications shown. Some changes in air line plumbing may be required. 02.431.09.02.0HB, 0243109020HB, 4640060020, 655687, F001572, 1325337, 8143280, 4027060, 82836370000, 8283637000, 5139, 001797, 001846, 4C462K433AA, TDAS4640060020, CF351950F001572, 157537, IT4358, 04853325, 4853325, 9236180001, 2129005, S464-006-002-0, S4640060020, 229600060, 9450351, 945035, 5009450351, 09450351, 21151103150, 312470, 1111172, 4110201, 502918201, A05020507, A05020506, 8235-S4640060020, 8235S4640060020, 6300-4640060020, 63004640060020, 5661808, 0005661808, 81436106116, 81436106117, 2TB412600A, QWAB4640060020, B5000JC10172, 910045-00011, 91004500011, 53810D9400, 309101, 0309101, 0568515, 49500451002, 495039, 5010260213, 4425010400, 04425010400, 339792, 0339792, 2089976, 050419, S050419, 730517, 50419, 055634, 21884, T851-157, 10505355, WAB4640060020, 1013120

Compliance and Safety

Install this valve on a depressurised air suspension system, then check linkage travel and air line sealing before the trailer returns to service. After fitting, set ride height to the vehicle maker’s specification so the suspension geometry stays within its normal operating range.

Trailer Applications

Use this valve on trailer air suspension systems that need a mechanical height control valve with M12 x 1.5 ports and hold back function. It suits replacement work where the original valve leaks, sticks or no longer maintains consistent ride height. Wabco Height Control Valve With Hold Back also suits fleet maintenance and workshop suspension repairs.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
