Shock Absorber 326-496mm BPW Type 30

Allan Davis on 22/05/2026

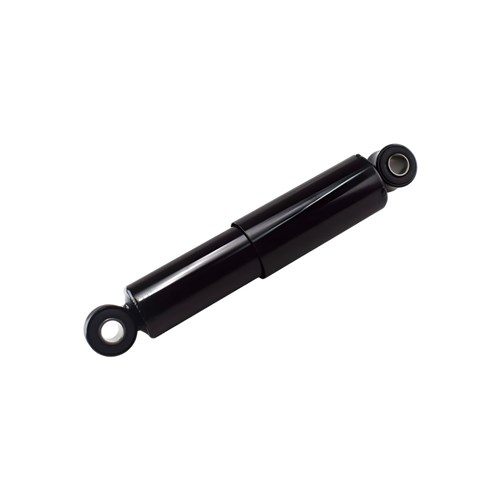

BPW shock absorber 326-496mm for trailer air suspension
Shock Absorber 326-496mm BPW Type 30 - Image 2

Shock Absorber 326-496mm BPW Type 30

$216.00

BPW shock absorber 326-496mm for Type 30 air suspension applications, with 326mm collapsed and 496mm extended lengths for matching trailer suspension service work, movement control and replacement against the existing unit, mounting eyes and suspension layout before fitting.

Part number BPW0237228302.

Quick Quote

SKU: BPW0237228302 Category: Tags: , , , , , , , , , , , , , , , , , Brand:
This field is for validation purposes and should be left unchanged.

Description

Overview

BPW shock absorber 326-496mm controls suspension movement on BPW trailer air suspension applications and helps keep axle response stable through normal service.

This shock suits replacement work where the existing unit matches the 326mm collapsed and 496mm extended length range, so check the old shock, mounting eyes and suspension layout before ordering.

Features

  • Matches BPW trailer air suspension shock absorber applications.
  • 326mm collapsed length and 496mm extended length for service matching.
  • BPW shock absorber 326-496mm layout suits eye-to-eye mounting checks.
  • Use with correct shocker mounting hardware for the trailer setup.

Specifications and Materials

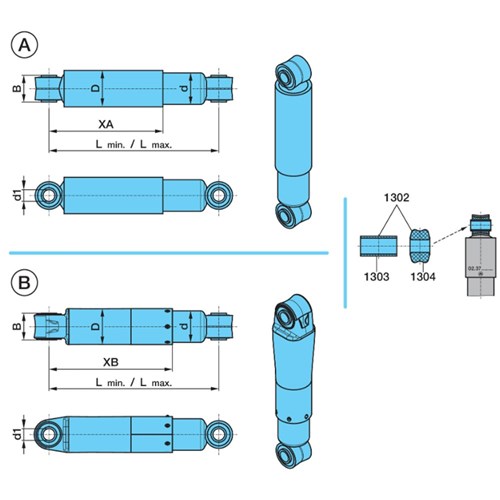

BPW shock absorber 326-496mm measures 326mm collapsed and 496mm extended, with a 65mm diameter body listed for this product family.

Part number: BPW0237228302.

Use the official BPW suspension catalogue when checking the axle attachment layout.

Compatibility and Fitment

Match the collapsed length, extended length, mounting eye size and BPW suspension type against the existing shock before fitting.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. P53024, 40024, 02.3702.14.00, 0237021400, 02.3702.19.00, 0237021900, 02.3702.36.00, 0237023600, 02.3702.52.00, 0237025200, 02.3722.14.00, 0237221400, 02.3722.83.00, 0237228300, 40-897-0, 408970, 50-897-0, 508970, 50-191-2, 501912, 50-191-6, 501916, 2376502600, 2376002600, P672, SP7048

Related Parts

Check the related service parts below against the trailer setup before ordering.

Use Part number Part type
Replacement component SP7135GK Shock absorber bush and sleeve kit
Nut to suit 02.5220.74.12 M24 lock nut
Bolt to suit 03.340.14.12.0 M24 x 270 shocker mount bolt
Bolt to suit 02.5023.49.80 M24 x 140 rear mount bolt
Spacer to suit 03.310.31.38.0 Lower shock spacer
Component of AS0002 Rubber ring



Compliance and Safety

Replace worn shocks in matched axle positions where the suspension setup requires paired service work. Also inspect mounting bolts, lock nuts, spacers and bushes because loose or worn hardware can shorten shock life.

Trailer Applications

Workshops fit this shock absorber during BPW air suspension service where the trailer requires the matching shock length and eye-mount hardware. For underslung and non-alignable layouts, compare the current shock and attachment parts before ordering.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

P53024 40024 02.3702.14.00
0237021400 02.3702.19.00 0237021900
02.3702.36.00 0237023600 02.3702.52.00
0237025200 02.3722.14.00 0237221400
02.3722.83.00 0237228300 40-897-0
408970 50-897-0 508970
50-191-2 501912 50-191-6
501916 2376502600 2376002600
P672 SP7048



Why Choose ICS Trailers

ICS Trailers supplies heavy trailer suspension parts for workshop servicing, fleet repairs and parts-counter replacement work.
