Description

Overview

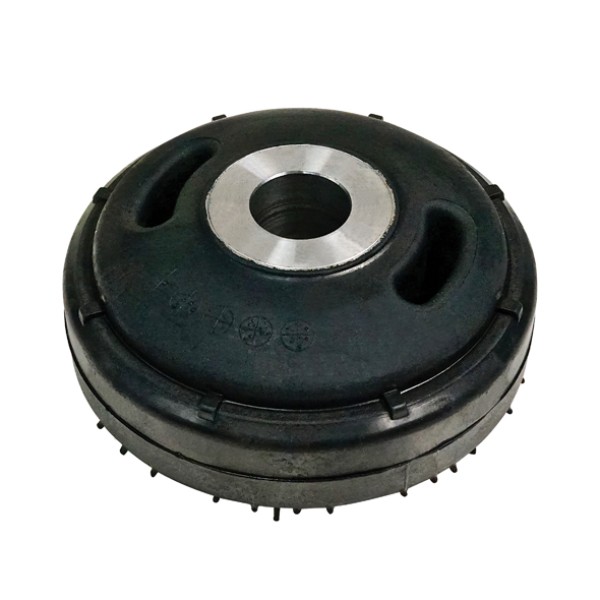

Pivot bush TMC LM restores the trailing arm pivot position in TMC LM suspension assemblies and helps keep the front pivot connection located correctly under load. The rubber bush and steel centre arrangement supports movement at the hanger while maintaining the mounted pivot point through normal suspension travel.

Features

• Pivot bush TMC LM matches 150mm OD, 30mm ID and 63mm height
• Rubber bush format suits TMC LM trailing arm pivot service
• Fits the pivot bush eye position in the trailing arm assembly
• Pairs with the matching sleeve, pivot bolt and washer hardware during rebuild work

Specifications and Materials

This pivot bush TMC LM measures 150mm outside diameter, 30mm inside diameter and 63mm high. It suits the TMC LM pivot location used in trailer suspension service work and matches the bush arrangement shown for LM suspension maintenance. Part number: SP1489. For TMC LM suspension service context, see the TMC LM service manual online

Compatibility and Fitment

Check the trailing arm eye size, bush height and 30mm centre size before ordering this pivot bush TMC LM. Match it to TMC LM suspension service work and compare the existing bush against the listed dimensions during strip-down. These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 626117

Compliance and Safety

Inspect the pivot eye surfaces, joining sleeve and pivot hardware before pressing the new bush into place. Keep the contact surfaces clean during installation, then confirm the bush seats squarely in the trailing arm eye before final assembly and clamp-up.

Trailer Applications

Workshops replace this bush when wear develops in the front pivot point of TMC LM air suspension trailing arms. It suits suspension rebuilds, pivot service work and hanger reassembly where the bush size, centre size and installed height all need to match the existing setup.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers stocks this bush within its trailer suspension range, so it can sit alongside matching hardware and related service parts for the same repair job. Browse Suspension parts at ICS Trailers for matching bushes, washers and hardware
