Description

Overview

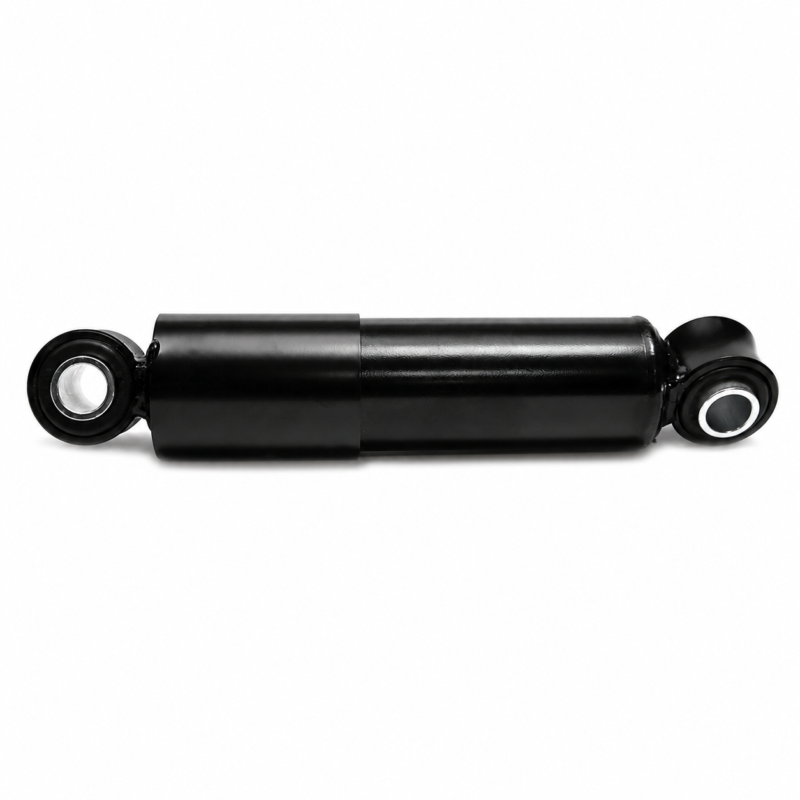

The Meritor ROR CS9 low mount shock absorber controls axle movement on matching CS9 trailer air suspension. Its 24mm eye mounts, 58mm eye widths and approximately 253-337mm centre-length range provide the main physical checks when replacing a worn or unmarked damper.

Features

• Eye-to-eye mounting with 24mm bores at both ends.
• Approximately 253mm minimum and 337mm maximum centre length.
• 58mm mounting-eye width at each end.
• Designed for the low mount position on matching Meritor/ROR CS9 suspension.

Specifications and Materials

This telescopic suspension damper uses eye mounting at both ends. Compare the old shock dimensions and mounting position before installation.

Part number: 085.269.

See the Cummins Meritor suspension range

Compatibility and Fitment

Confirm the shock is from the CS9 low mount position rather than the top mount position. Both CS9 arrangements use dedicated dampers, so the existing part number, eye dimensions and centre length should be compared before ordering.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 21228392, 22211031, 6604904, SP6930G, SP6930P, F5379, M0097, 8901038, 220207, 10.27206, 1027206, 18233, 18233C, 04.170.7950.542, 041707950542

Related Parts

Check the matching low mount shock strap during the same suspension inspection.

Compliance and Safety

Inspect the mounting eyes, bushes, pins, brackets and restraint strap before fitting. Replace worn hardware and confirm the damper can move through the suspension travel without binding or contacting surrounding components.

Trailer Applications

The Meritor ROR CS9 low mount shock absorber suits the low-mounted damper position on matching CS9 trailer suspension systems.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

CS9 top and low mount shocks can be mistaken for one another when the old damper has lost its markings. ICS Trailers can compare the part number, 24mm mounting eyes, 58mm eye width and centre-to-centre measurements before you order.

• Check the SP7277 restraint strap and surrounding mounting hardware while the shock is removed.
• Send photos and the compressed or extended centre measurement when the suspension position is uncertain.
