M24 Spring Eye Bush Repair Kit BPW restores the spring eye connection on BPW suspension running M24 bolts, 70mm wide springs and alignable parallel sided hangers. The kit repairs one axle and brings together the main service parts needed for this hanger setup. When the spring eye hardware is worn, this kit lets workshops rebuild the joint with the correct alignable components for the application.

Features

• Suits M24 spring eye bolts with 70mm wide springs
• Made for alignable parallel sided hanger setups
• Includes bolts, alignment plates, washers, nuts, wear plates and steel/rubber/steel bushes
• Repairs one axle in one kit

Specifications and Materials

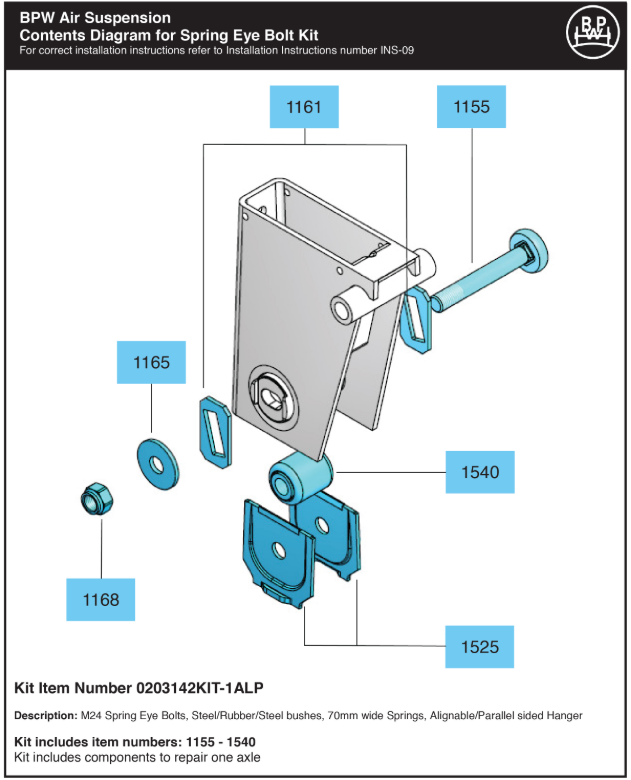

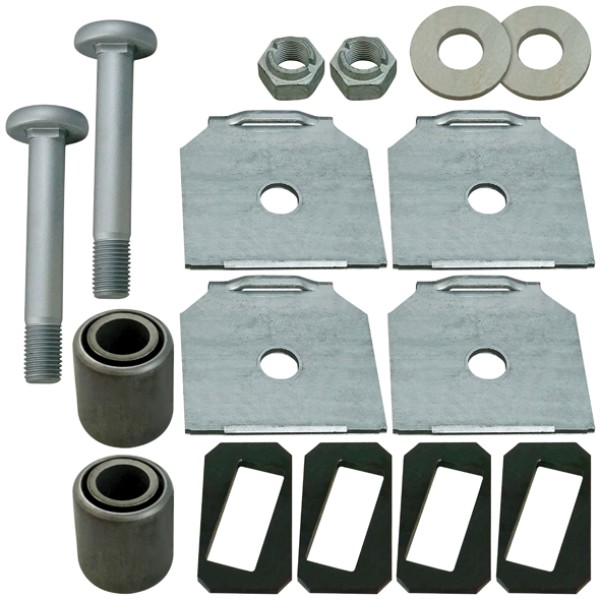

This kit includes 2 spring eye bolts M24 x 166, 2 alignment plates, 4 spring eye washers M24, 2 spring eye nuts, 4 wear plates for parallel hangers and 2 steel/rubber/steel bushes. It matches BPW suspension using alignable parallel sided hangers, so buyers can replace the full spring eye hardware set in one repair. Part number: SP7198G.

For installation guidance, see the BPW suspension parts catalogue

Compatibility and Fitment

Check the spring width, bolt size and hanger style before ordering, because this kit suits M24 spring eye bolts, 70mm wide springs and alignable parallel sided hangers. It does not suit tapered hanger layouts, so compare the hanger shape before fitting. These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 0203142KIT-1ALP, 0203142KIT1ALP

Compliance and Safety

Inspect the hanger faces, wear plates and bushes before assembly, and replace damaged hardware as a set where needed. Apply grease or anti-seize to the spring eye bolt shank and thread during installation. Tighten the M24 locknut to 650Nm with the suspension at ride height, and keep both alignment plates at the same height before final tightening.

Trailer Applications

Workshops fit this kit during BPW suspension repairs where the spring eye bolt assembly has worn through the bush and hanger contact points. It suits trailer suspension running 70mm wide springs with alignable parallel sided hangers. Because the kit includes the wear surfaces and fastening hardware together, it suits rebuild work where the full spring eye connection needs attention on one axle.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
