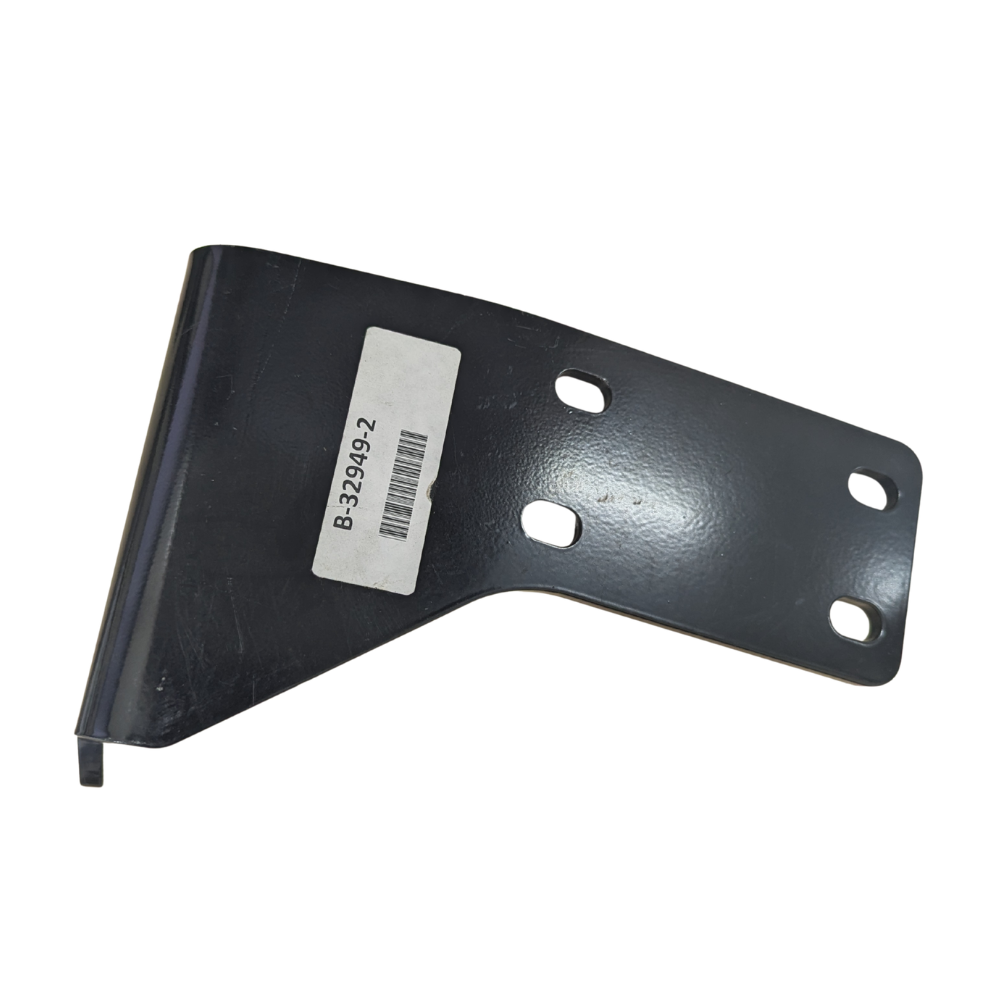

Lower Shock Support Bracket Right-Hand

Allan Davis on 28/07/2026

Lower shock support bracket right-hand for Hendrickson INTRAAX AANT suspension

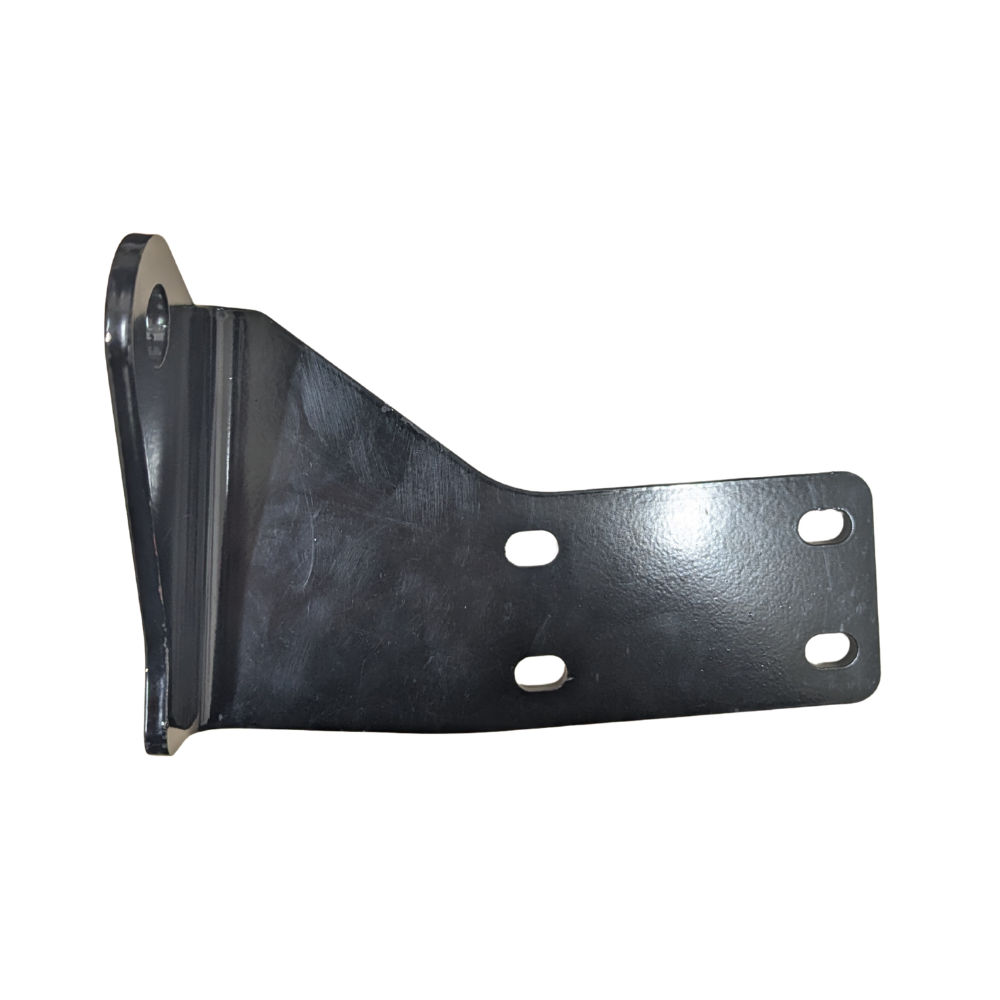

Lower Shock Support Bracket Right-Hand - Image 2

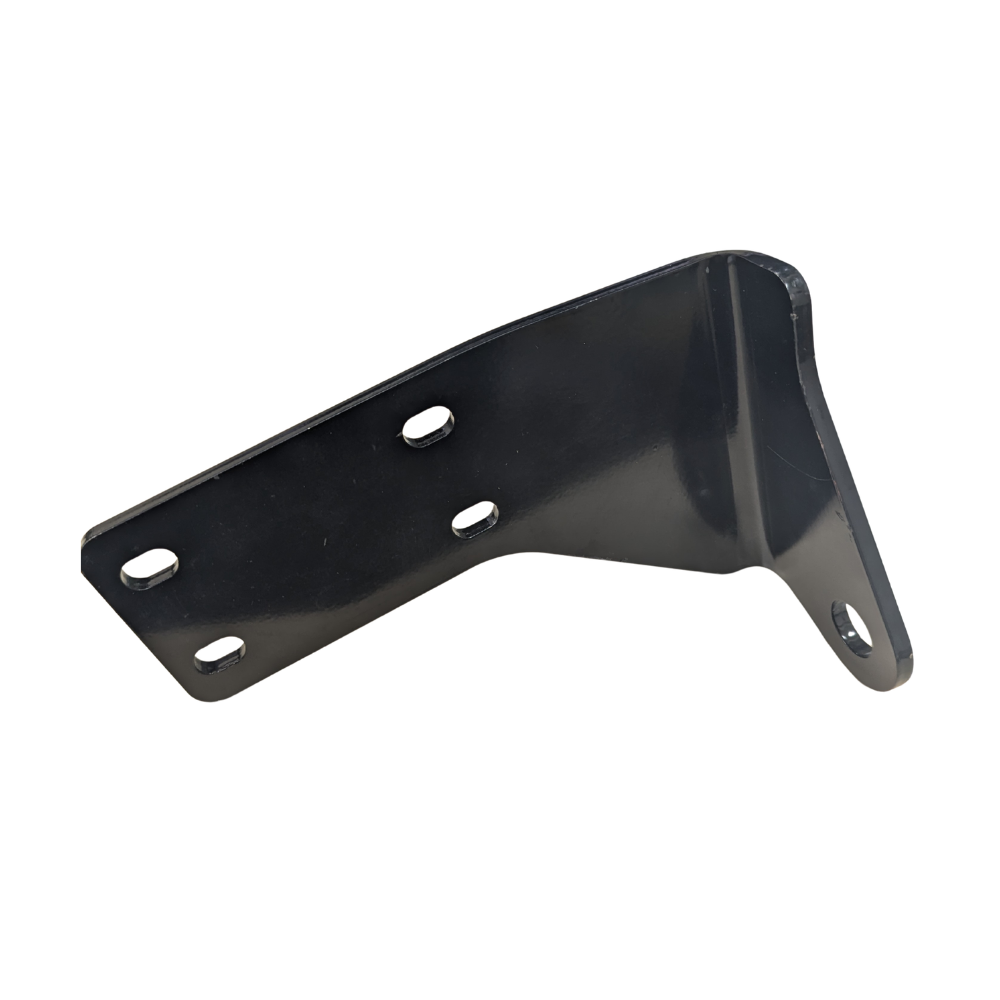

Lower Shock Support Bracket Right-Hand - Image 3

Lower Shock Support Bracket Right-Hand

$49.00

Lower shock support bracket for the right-hand side of standard Hendrickson INTRAAX AANT trailer suspensions, with a four-hole base and upright shock mounting ear; confirm RH orientation and avoid the cut-out 5-inch slack version before ordering.

Part number B-32949-2.

Quick Quote

SKU: B-32949-2 Category: Tags: , , , , , , , , , , , , , , , , , Brand:
This field is for validation purposes and should be left unchanged.

Description

Overview

Lower shock support bracket secures the lower shock absorber mounting point on the right-hand side of compatible Hendrickson INTRAAX AANT trailer suspensions. Hendrickson uses this shape for the standard setup, so do not confuse it with the cut-out version for a 5-inch slack adjuster.

Features

  • Right-hand orientation for the standard AANT shock mount
  • Four-hole base pattern with an upright shock mounting ear
  • Individual service bracket for one suspension side
  • Nut plate and bracket bolts remain separate service parts

Specifications and Materials

This individual part covers the bracket only; match the nut plate and mounting bolts separately when required.

Part number: B-32949-2.

Technical details appear in the official Hendrickson AANT parts list

Compatibility and Fitment

Confirm the right-hand position, standard four-hole shape and AANT suspension identification before ordering. The main mismatch risk is the right-hand 5-inch slack version, which has a cut-out and uses a different part. Also compare the removed bracket against the opposite side before installation.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Use Part number Part type
Component of 98918-018 Complete lower support bracket kit
Nut plate to suit B-31050 Lower support bracket nut plate
Bolt to suit SA-6900-5 3/8″-16 x 1.25″ bracket bolt
Related version B-32949-1 Standard left-hand support bracket
Related version 98870-304 Right-hand bracket for 5-inch slack option



Compliance and Safety

Inspect the beam mounting face, nut plate, bolt holes and surrounding metal for cracking, elongation or distortion. When assembling the lower shock connection, use the specified hardened washers or shock strap clevis and follow the manufacturer’s shear-bolt procedure. The shear head separates at 300 ±15 Nm.

Trailer Applications

Workshops fit this lower shock support bracket during shock absorber mounting repairs on standard INTRAAX AANT trailer air suspension assemblies in the Asia Pacific region.

Why Choose ICS Trailers

Right-hand and left-hand brackets can look similar once removed, while the cut-out 5-inch slack version adds another easy ordering trap. Send ICS Trailers a photo of the old bracket, its mounting-hole layout and the suspension identification so the team can compare the side and shape before you order.

  • Match the complete bracket kit, nut plates and fasteners for a wider lower shock support repair.
  • Check the shock, lower mounting hardware and nearby beam condition while the bracket is accessible.
