Description

Overview

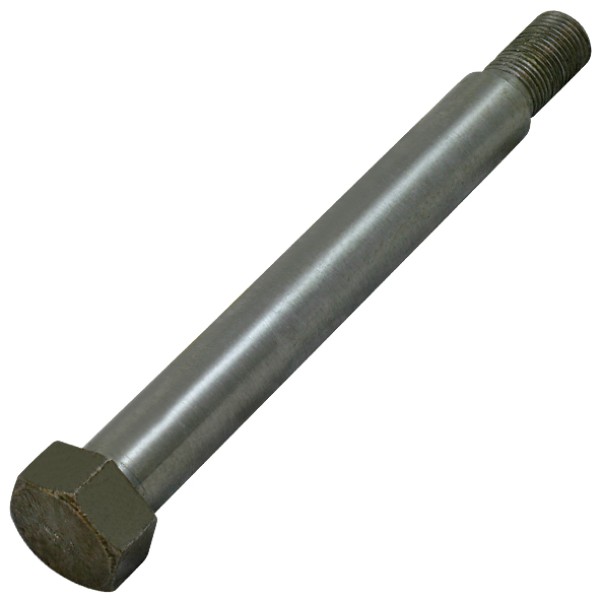

Freighter TAA39-49 equaliser pin keeps the rocker assembly located and moving correctly through the suspension cycle. It runs through the rocker bush and provides the retained pivot point that lets the suspension articulate under load. When the pin wears, the bush fit can loosen and the rocker can start moving with unwanted play.

Features

• 180mm overall length for the listed suspension position
• 19mm outside diameter for the pivot bore size
• 5/8″ threaded end for retaining hardware
• Made for the rocker pivot role on Freighter TAA39-49 suspension

Specifications and Materials

This equaliser pin carries a 19mm outside diameter, 180mm overall length and 5/8″ thread for the listed suspension setup. The pin body runs through the rocker bush at the pivot point, and the threaded end secures the assembly with the matching nut. Part number: SP1206. For thread-standard reference, see UNF thread dimensions

Compatibility and Fitment

Match the overall length, outside diameter and thread before ordering, and also compare the pin against the existing suspension layout on the trailer. Freighter TAA39-49 equaliser pin suits the rocker pivot position for the listed suspension family, so the pin, bush and retaining hardware need to line up correctly during assembly. These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 161-07019, 16107019, IT1223, WT1223

Compliance and Safety

Inspect the pin, bush and retaining nut together because wear usually shows up across the full pivot point, not in one piece alone. If the pin shows scoring, thread damage or movement in the bush, replace it before returning the trailer to service.

Trailer Applications

Workshops fit this part in mechanical suspension repairs when the rocker pivot pin has worn, seized or lost thread condition. It suits Freighter trailer suspension running the TAA39-49 rocker arrangement, especially when a bush change or rocker service already has the assembly apart. Because the pin locates a working pivot, correct size matching matters more than forcing a near match.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
