Description

Overview

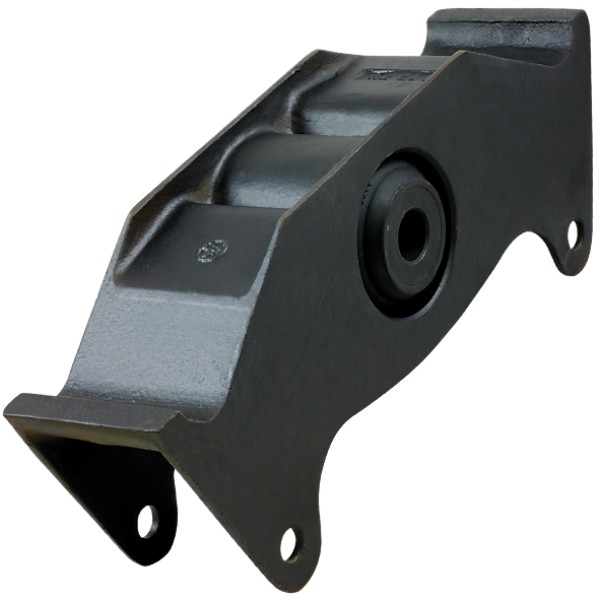

Reyco Transpo cast suspension rocker is a cast equaliser-style component used in mechanical trailer leaf spring suspension with 76mm wide springs. It sits at the centre of the suspension assembly, so it allows the spring packs to articulate through suspension travel while helping balance load movement across the axle group. Because the equaliser works through a controlled pivot arc, a worn rocker can affect suspension movement, bush support and load sharing. When the body or bush area wears, replacing the rocker restores the correct pivot point and keeps the suspension working as intended.

Features

• Cast rocker and equaliser-style body for mechanical trailer suspension
• Suits Reyco Transpo pattern with 76mm wide leaf spring fitment

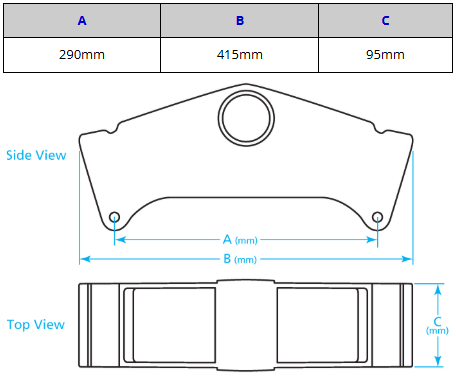

• Dimension guide: A 290mm, B 415mm, C 95mm
• Matched to 1″ UNF pivot hardware and related rocker service parts

Specifications and Materials

This is a cast suspension rocker with equaliser-style geometry for trailer applications using 76mm wide springs. The main selection points are A 290mm, B 415mm and C 95mm, so matching the spring width and overall rocker dimensions is important before installation. Similar suspension parts can look close in shape; however, centre spacing and pivot layout can still differ. The related pivot hardware on this setup uses 1″ UNF thread hardware. Part number: SP1195C. For leaf spring suspension family information, see the Reyco Granning 21B suspension overview

Compatibility and Fitment

Check the suspension type, spring width and main dimensions against the part being removed before ordering. Also confirm you are replacing the cast version rather than a fabricated alternative where the suspension layout gives that choice. This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown. Some changes in installation may be required. 0850-00, 085000, EQ041, 09-2472, 092472, M-3707, M3707, 338-871, 338871, E-10250, E10250, TP107, ST1001, 55-143, 55143, CS71700B

Compliance and Safety

Inspect hanger faces, pivot hardware and bush seating surfaces during installation. If fasteners, pins or mating parts show wear, replace them at the same time so the rocker can run on stable mounting points. Tighten all mounting hardware to the suspension maker or vehicle maker specification before returning the trailer to service. After fitting, make sure the rocker moves through its working range without bind, twist or side loading.

Trailer Applications

Reyco Transpo cast suspension rocker is commonly used in mechanical trailer suspension on fleet trailers running 76mm wide leaf springs. It suits repair work where a worn or damaged centre rocker has affected spring support, pivot control or equalising action through suspension travel. It is therefore a practical replacement in trailer suspension repairs on flatbed, curtain side, bulk and dump applications where this suspension pattern is in service.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers also carries the matching suspension service parts commonly replaced during rocker repairs, including the related bush, pin and nut for this setup. That helps when the job needs more than the rocker body alone. Browse more trailer suspension parts in the ICS Trailers Suspension category
