Description

Overview

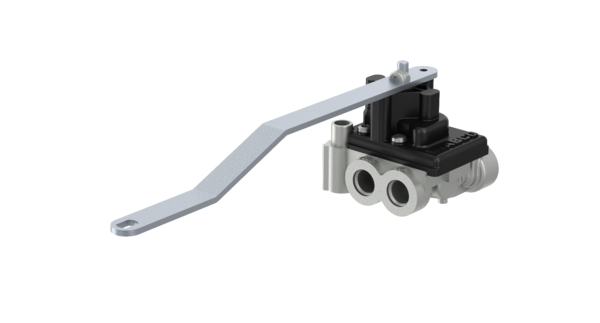

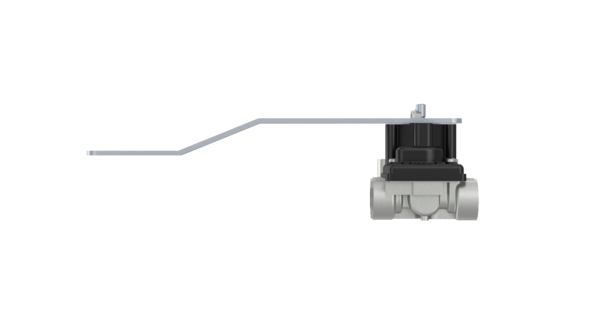

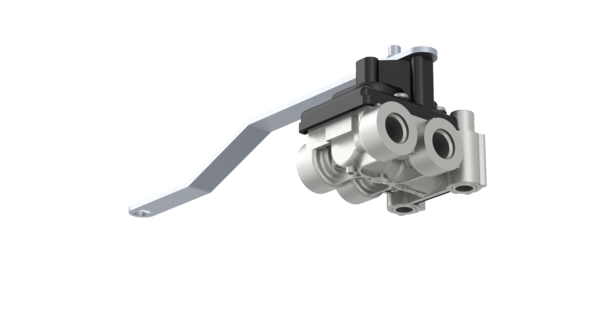

Cab levelling valve controls air flow for cabin ride height in truck and bus air suspension systems.

The lever-operated design suits conventional air suspension control setups where the valve reacts to suspension movement and adjusts air delivery through the connected air lines.

Features

• Premium original quality cab levelling valve.
• Lever-operated valve with -50° to +50° actuation angle.
• 1/4″ NPTF port threads on both air line ports.
• Version without one-way valve.

Specifications and Materials

This cab levelling valve carries a 10.0 bar maximum operating pressure and works across a -40°C to +80°C temperature range.

It has 40mm hole spacing, 2 x Ø8.5mm mounting holes and a hole-lever operation of Ø10 x 6.5mm.

Part number: 4640080110.

The valve measures 71.5 x 75 x 237mm and weighs 0.3kg.

official WABCO product page

Compatibility and Fitment

Match this valve to the vehicle application, port thread, mounting hole spacing, lever type and operating pressure before ordering.

Also compare the existing linkage and air line layout, because cab levelling valve installations can vary by vehicle make and suspension arrangement.

These cross-references show where this valve replaces the part numbers and applications listed. Some air line changes may be needed. TDAS4640080110, S464-008-011-0, S4640080110, 8235-S4640080110, 8235S4640080110, 6300-4640080110, 63004640080110, WAB4640080110

Compliance and Safety

Depressurise the air system before removal, then check air line condition, fittings and mounting hardware before installing the replacement valve.

After installation, confirm ride height and check for air leaks through the full operating range.

Trailer Applications

Workshops fit this cab levelling valve to truck and bus cabin air suspension systems that use conventional lever-operated height control.

It suits service work where the existing valve has air leakage, slow height correction, damaged ports or worn lever operation.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers can help match pneumatic suspension control valves to port thread, pressure rating, lever setup and mounting layout. If the old valve has failed, inspect the linkage and fittings before ordering.
