Description

Overview

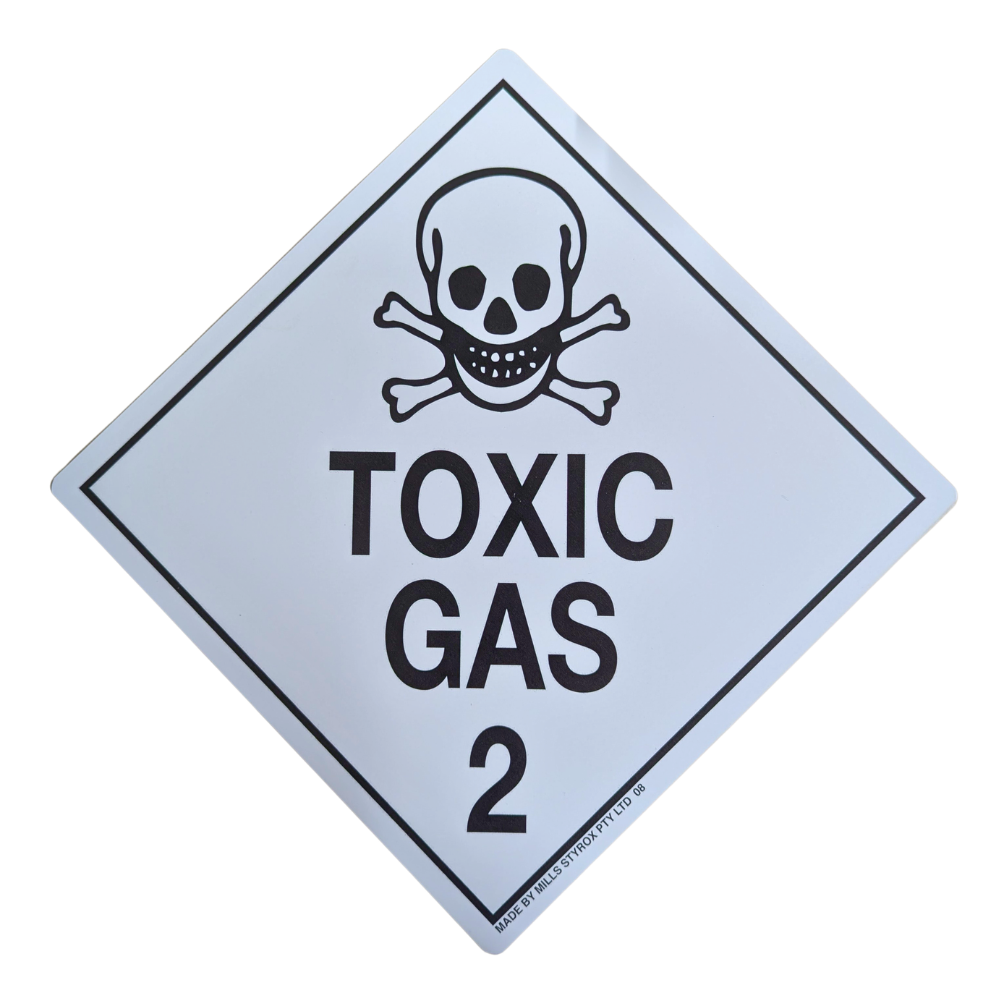

The Class 2 Toxic Gas Sign identifies Division 2.3 dangerous goods that present a serious inhalation hazard. Measuring 250 x 250mm, the sign features a white diamond, black skull and crossbones, TOXIC GAS wording and class numeral 2 to distinguish toxic gases from other Class 2 substances.

Choose between a rigid plastic sign for separate mounting or a self-adhesive sticker for direct application to a suitable surface.

Features

• 250 x 250mm dangerous goods warning diamond.
• White background with black skull and crossbones symbol.
• TOXIC GAS warning text and black class numeral 2.
• Available in rigid plastic or self-adhesive sticker format.

Specifications and Materials

• Dangerous goods class: 2
• Division: 2.3, Toxic Gas
• Dimensions: 250 x 250mm
• Material options: Plastic sign or self-adhesive sticker
• Colour: White background with black graphics

Both material options measure 250 x 250mm and display the Division 2.3 toxic gas hazard marking.

Part number: RSDG08P (plastic) / RSDG08SO (sticker).

For official dangerous goods classification and transport marking guidance, refer to the Australian Dangerous Goods Code

Compatibility and Fitment

Confirm the transported substance requires Division 2.3 identification. Unlike the red flammable gas diamond for Division 2.1 or green non-flammable, non-toxic gas diamond for Division 2.2, this marking uses a white background and skull and crossbones.

Check that the 250 x 250mm sign fits the required mounting position. The plastic version requires a suitable mounting arrangement, while the sticker applies directly to a clean, dry and smooth surface.

Compliance and Safety

Check the dangerous goods classification against the safety data sheet and transport documentation. Keep the marking visible and legible, and replace it if damage, fading or peeling affects identification.

Trailer Applications

Division 2.3 markings identify toxic gas hazards on applicable dangerous goods transport vehicles, trailers and freight containers carrying substances such as chlorine or anhydrous ammonia where this classification marking is required.

Why Choose ICS Trailers

Class 2 gas markings cover three different hazard divisions, so selecting the correct diamond matters when replacing transport signage. ICS Trailers can help compare the existing warning symbol, dimensions and mounting arrangement before you choose the plastic or sticker option.

• Choose between 250 x 250mm plastic and sticker options to suit your mounting surface.
• Send through a photo or measurements of the existing sign if you need help selecting the appropriate replacement format.
