Description

Overview

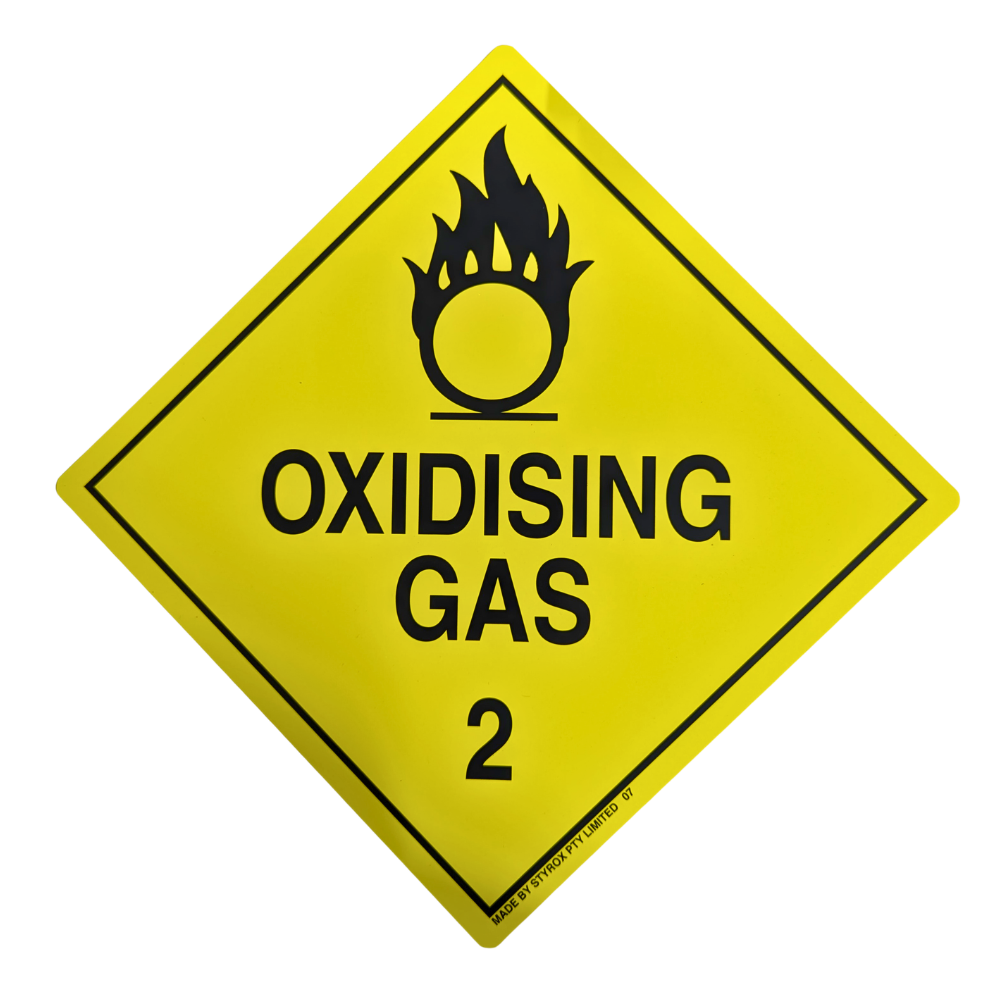

The Class 2 Oxidising Gas Sign identifies Division 2.2 gases with a subsidiary oxidising hazard (5.1) during applicable Australian dangerous goods transport. Measuring 250 x 250mm, the yellow warning diamond features a black flame-over-circle symbol, OXIDISING GAS wording and class numeral 2.

Choose between a rigid plastic sign for separate mounting or a self-adhesive sticker for direct application to a suitable surface.

Features

• 250 x 250mm dangerous goods warning diamond.
• Yellow background with black flame-over-circle symbol and border.
• OXIDISING GAS warning text and black class numeral 2.
• Available in rigid plastic or self-adhesive sticker format.

Specifications and Materials

• Dangerous goods class: 2, Gases
• Division and subsidiary hazard: 2.2 / 5.1
• Australian label model: 2.5
• Dimensions: 250 x 250mm
• Material options: Plastic sign or self-adhesive sticker
• Colour: Yellow background with black graphics

Both material options measure 250 x 250mm and carry the same oxidising gas hazard marking.

Part number: RSDG07P (plastic) / RSDG07SO (sticker).

For official dangerous goods classification and transport marking guidance, refer to the Australian Dangerous Goods Code

Compatibility and Fitment

Check the load classification before selecting this marking. The Class 2 Oxidising Gas Sign differs from the green Division 2.2 non-flammable gas diamond and the Class 5.1 oxidising agent sign, which carries a different class numeral.

Confirm that the 250 x 250mm dimensions suit the required mounting position. The plastic version suits a separate mounting arrangement, while the sticker requires a clean, dry and smooth application surface.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Confirm the dangerous goods classification against the safety data sheet and transport documentation. Australian label model 2.5 applies to land transport within Australia, so check separate requirements for other transport modes.

Keep the warning diamond visible, legible and securely attached. Replace damaged, faded or peeling signs when their hazard identification becomes difficult to read.

Trailer Applications

Oxidising gas markings identify relevant dangerous goods on transport vehicles, trailers and freight containers where the load classification and applicable requirements call for this hazard diamond. These gases may contribute to or intensify combustion even when the gas itself is not flammable.

Why Choose ICS Trailers

A yellow oxidising gas sign can look similar to a Class 5.1 oxidising agent sign, but the class numeral and application differ. ICS Trailers can help compare the existing warning diamond, mounting position and 250 x 250mm format before you select a replacement for your trailer or transport equipment.

• Choose between plastic and sticker options, with a matching sign holder available for suitable rigid mounting arrangements.
• Send a photo of the existing marking or your load classification details if you need help identifying the correct hazard sign.
