Description

Overview

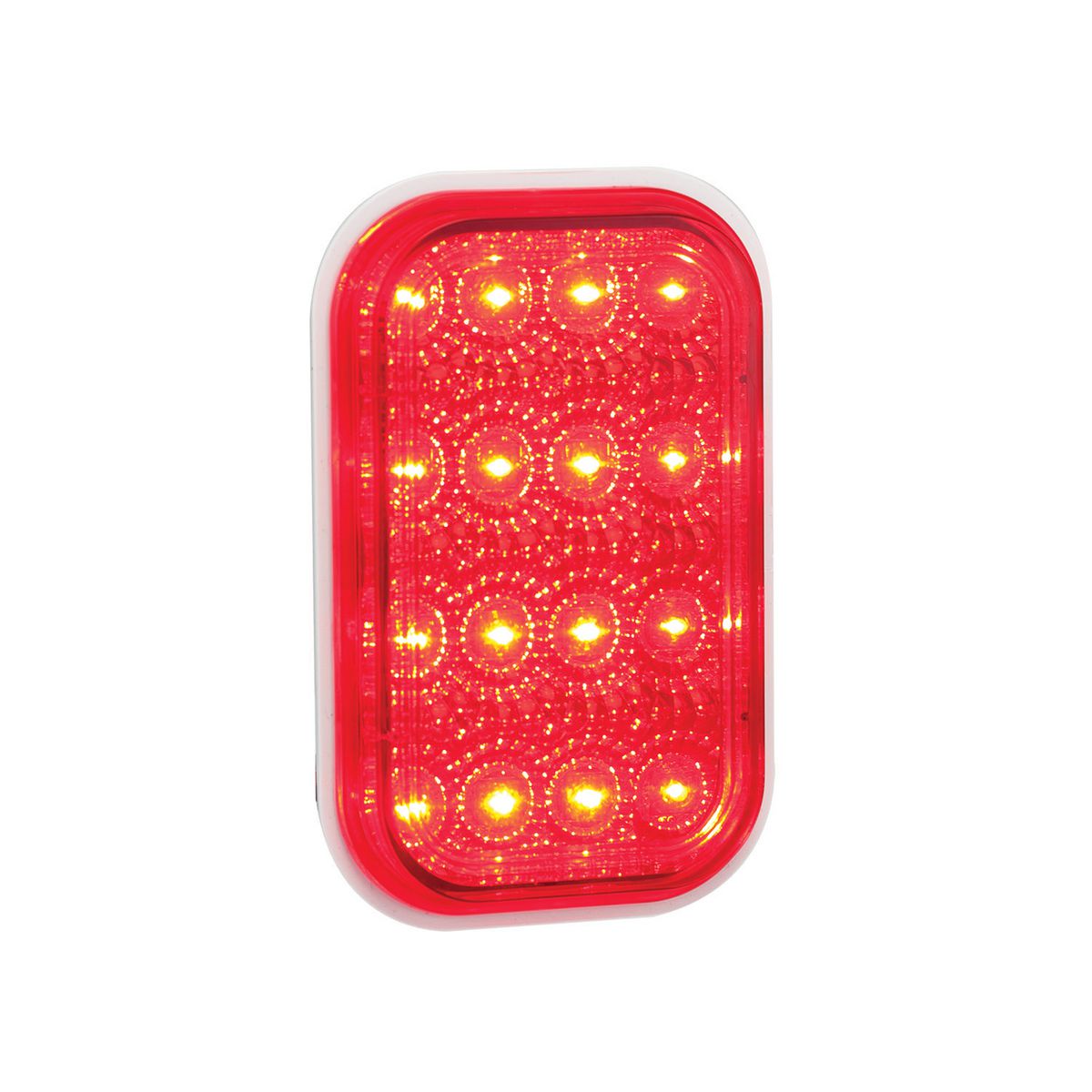

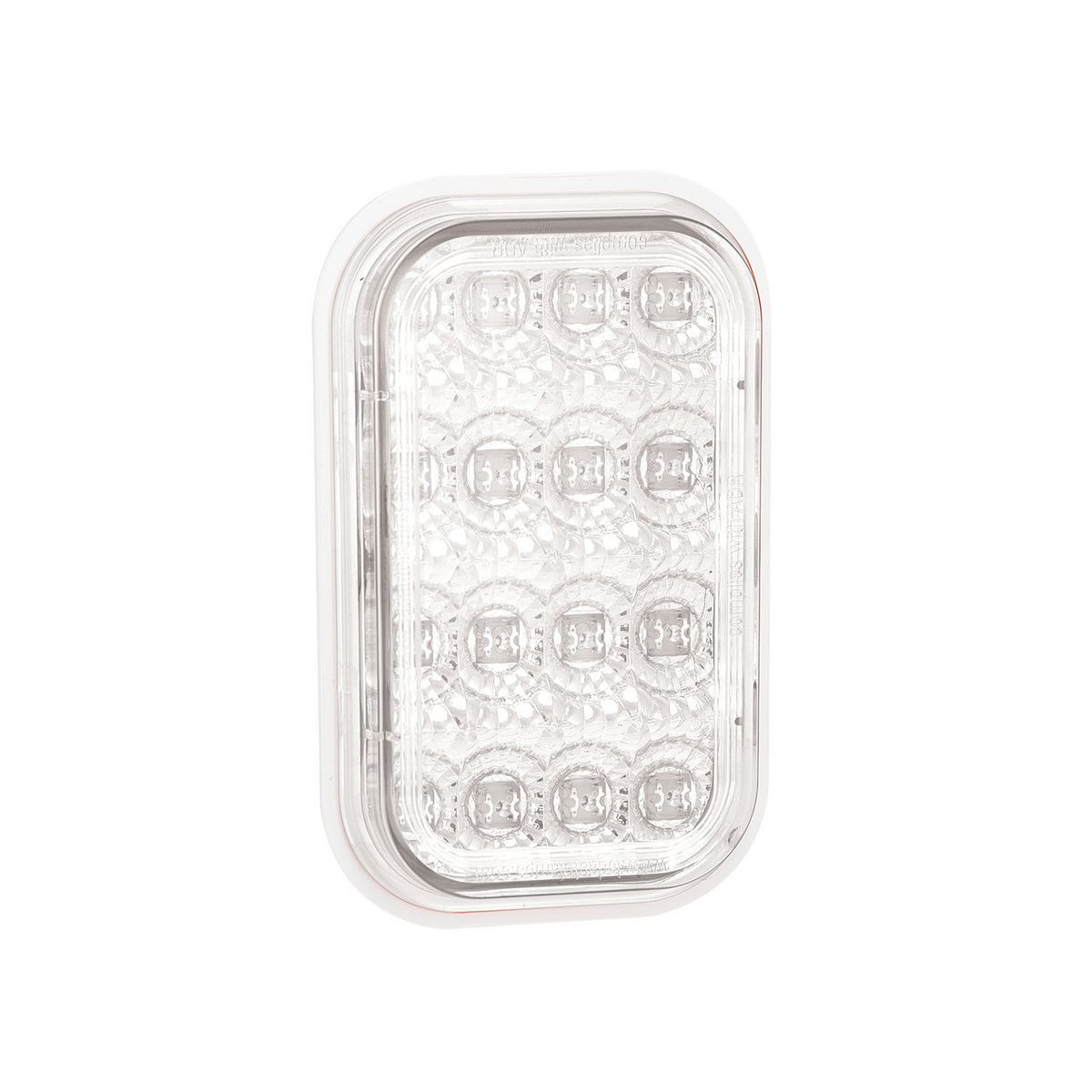

LED stop tail lamp with chrome reflector delivers rear stop and tail lighting in a compact recessed lamp for trailers, tray bodies and light commercial vehicle bodies. The clear lens and internal chrome reflector suit builds where the lamp needs a clean inactive appearance but red LED output when powered.

Features

• Stop and tail functions in one recessed rear lamp
• 12-24V multivolt operation for mixed vehicle and trailer systems
• Horizontal or vertical mounting for flexible rear panel layouts
• IP67 rated body with ADR approved stop and tail function

Specifications and Materials

This LED stop tail lamp with chrome reflector measures 134mm × 87mm × 12mm and uses 16 red LEDs with 40cm spade terminal wiring. It draws 0.22A for stop and 0.03A for tail at 13.8V, then 0.12A for stop and 0.03A for tail at 28V. Part number: 131CRM.
See the manufacturer 131 Series lamp data

Compatibility and Fitment

Check the rear panel cut-out, mounting direction and wiring layout before ordering. For new installations, use the matching grommet or flange, then run the wiring through the back of the panel and push the lamp into place.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Confirm lamp position against the trailer lighting layout before returning the vehicle to service. Also inspect the spade terminals, earth connection and lens condition, because poor wiring or damaged housings can affect stop and tail visibility.

Trailer Applications

Body builders and repairers fit this LED stop tail lamp with chrome reflector to rear panels on trailers, trays, service bodies and compact commercial vehicle setups. Because it can mount horizontally or vertically, it suits panel layouts where a standard rear combination lamp may not fit cleanly.
