Description

Overview

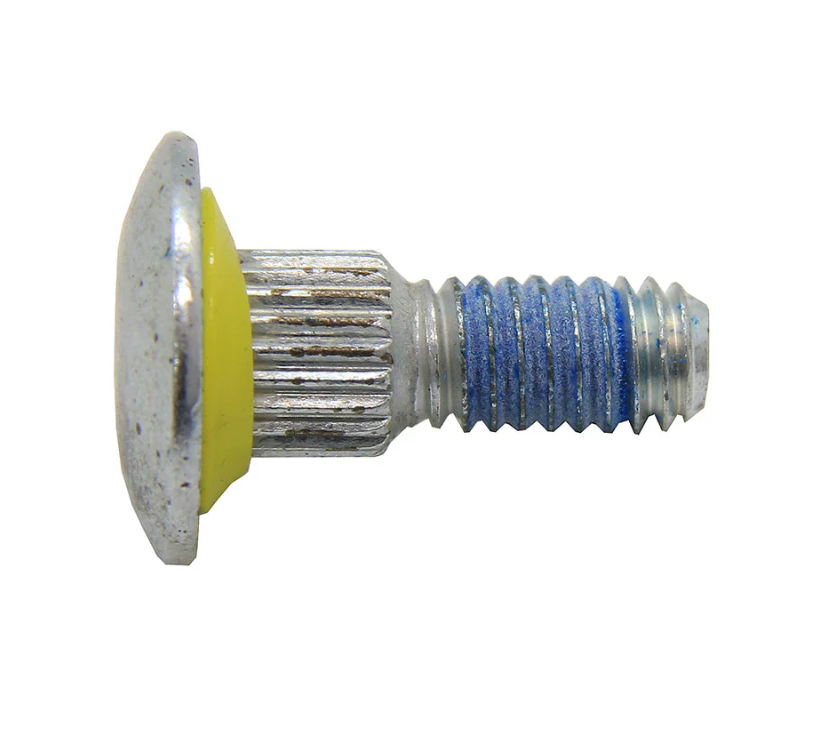

Panelok bolt 5/16 UNC secures trailer body panels, door hardware, frame fittings and bulkhead attachments where a low-profile two-piece fastener system suits the job. This 1 inch yellow seal bolt suits metal, timber and GRP panel work when replacing the bolt only.

Features

• 5/16″ UNC thread with 1 inch bolt length.
• Yellow seal version for Panelok and Camtainer style fastener systems.
• 1022 steel body with zinc plated finish.
• ICS sells this item individually as the bolt only, with no nut included.

Specifications and Materials

Part number: APLB-1016B.

This bolt uses a 10.0mm hole size, 1022 steel body, zinc plated finish, nitrile under-head seal and thread patch. Pair it with the correct Torx drive Panelok T-nut when the job needs a complete two-piece fastener assembly.

Use the SAE-AISI 1022 material reference when checking the base steel type

Compatibility and Fitment

Check the hole size, grip range, panel thickness, thread type, mating nut and required head profile before ordering. Because this item includes the bolt only, order the matching Panelok nut separately when the repair needs the full fastener assembly.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Use the correct mating nut and installation tool for the fastener system. Also check hole condition and panel compression, because damaged holes or mismatched grip range can reduce clamp performance.

Trailer Applications

Trailer body builders and repairers use Panelok fasteners around door hardware, frame attachments, bulkhead fittings and GRP panel work. The low-profile head keeps both sides of the installed fastener neat and helps limit external tampering.

Why Choose ICS Trailers

ICS Trailers sells this bolt individually, which suits repair jobs where only a small number of matching fasteners are needed rather than a bulk pack.
