Description

Overview

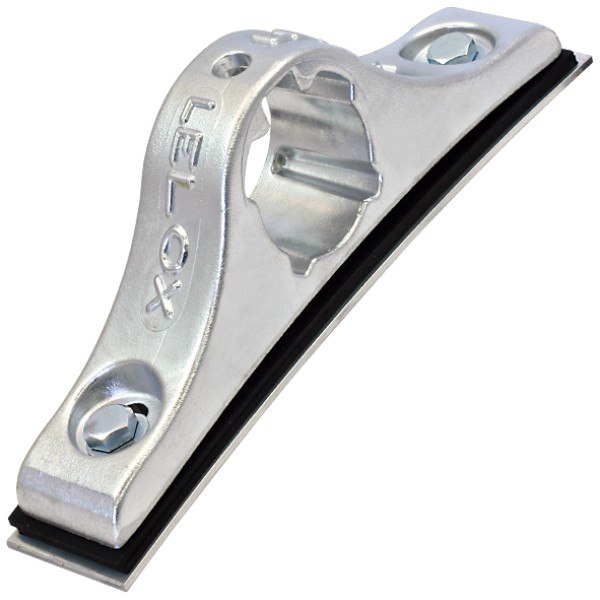

The Lelox Mudguard Mounting Bracket Wide Plate is a heavy-duty bracket set made to secure metal mudguards to chassis-mounted pipes on trucks and trailers. It spreads load through a wide backing plate, so you reduce point-loading that can fatigue a guard over time. Because it includes vibration dampeners and locking hardware, it helps keep the assembly stable on rough roads.

Features

• Wide backing plate for improved load distribution on metal mudguards
• Rubber vibration dampeners to reduce vibration transfer into the guard
• Locking hardware and grub screw arrangement to help resist bracket movement
• Designed for commercial truck and trailer mudguard installations

Specifications and Materials

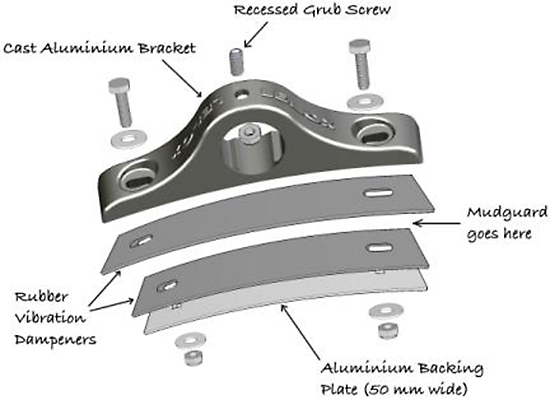

The Lelox Mudguard Mounting Bracket Wide Plate includes a cast aluminium mounting bracket, a wide backing plate, two rubber vibration dampeners, and the supplied fasteners for assembly. Hardware uses 3/8″ UNC components (conelok nuts, washers, bolts) plus a 3/8″ x 5/8″ UNC grub screw for bracket retention.

Part number: CA5711.

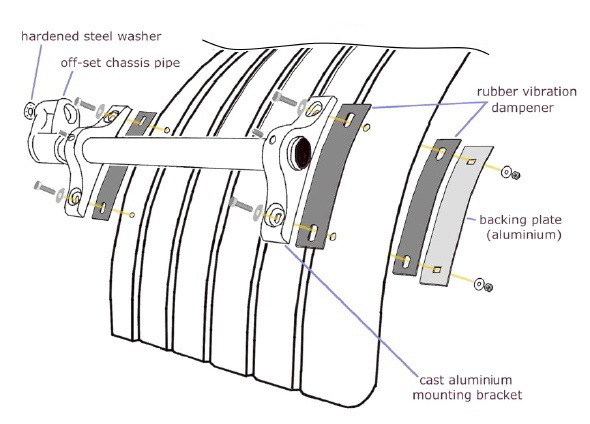

Follow the manufacturer installation guide for cast aluminium mudguard brackets when you position the brackets and tighten the grub screw.

Compatibility and Fitment

Use this bracket set with metal mudguards where you need a rigid mount with vibration isolation. Fit the backing plate on the opposite side of the guard and clamp the guard between the bracket, dampeners, and plate, then tighten fasteners evenly so the dampeners seat without crushing.

This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown. Some changes in installation may be required. MMAB

Compliance and Safety

Before final tightening, confirm you have adequate tyre clearance through suspension travel, and check the mudguard does not foul on air lines, brake chambers, or suspension components. After installation, re-check fasteners after the first run and then at service intervals, because vibration can relax joints over time.

Trailer Applications

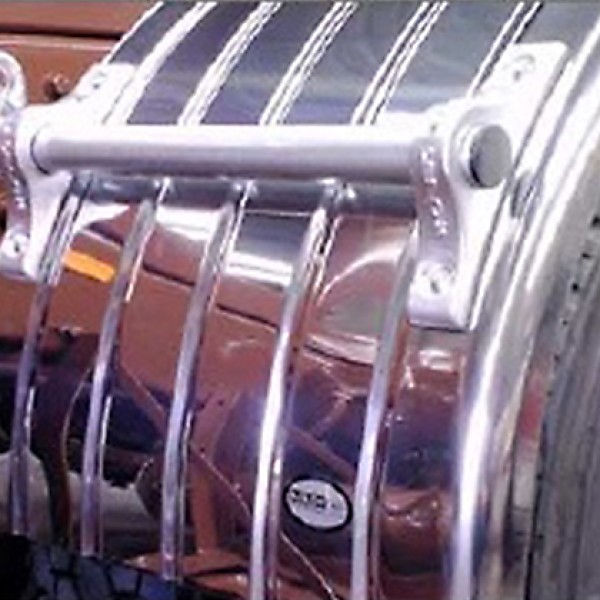

Common uses include semi-trailer and tag-trailer mudguard installs, plus multi-axle setups where guard stability matters. The Lelox Mudguard Mounting Bracket Wide Plate also suits replacement work when the existing backing support has worn or cracked.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
