Description

Overview

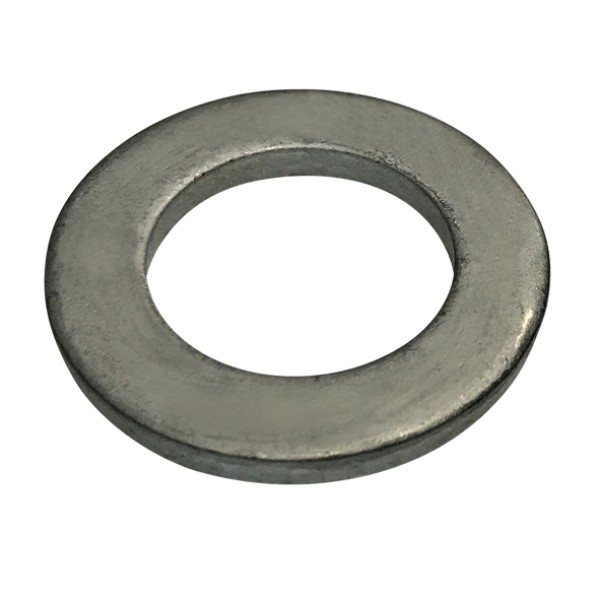

M24 U bolt washer supports the clamp load under M24 suspension U-bolt nuts on heavy trailer suspension hardware. It suits U-bolt assemblies and other M24 hardware positions where the washer size, outside diameter and thickness need to match the existing setup. Use it when the old washer has crushed, dished, cracked, corroded or no longer sits flat under the nut.

Features

• Genuine M24 washer for U-bolt and heavy trailer hardware service.
• 43.5mm outside diameter for matching the existing washer footprint.
• 4mm thickness for M24 suspension U-bolt applications.
• Single washer supplied per unit.

Specifications and Materials

Part number: CH9006G.

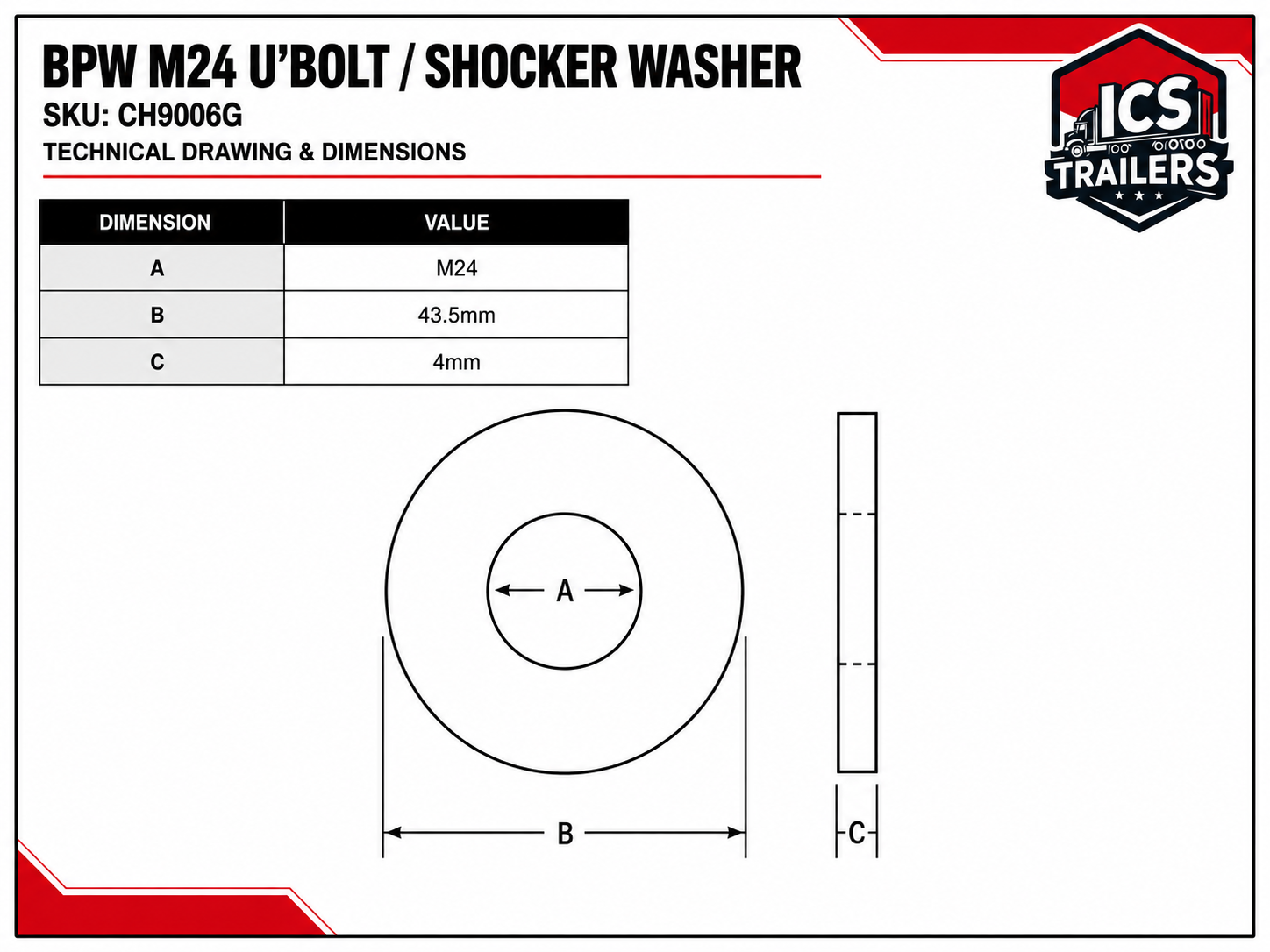

The M24 U bolt washer matches M24 U-bolt hardware and measures 43.5mm across the outside diameter with a 4mm thickness. Check the old washer, U-bolt thread size and nut seat before ordering.

Use the official trailer suspension parts catalogue when checking U-bolt washer and nut positions

Compatibility and Fitment

Match this washer to M24 U-bolts and compatible suspension hardware. Also check the U-bolt nut, top plate and suspension seat area, because damaged mating parts can mark the washer or reduce clamp consistency. These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 21222923, 294029, 48250, B0703002300A, C300657, ULA5135-01, ULA513501, WC300657, 0254012507

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Inspect the washer face, U-bolt threads and nut contact area during service. Replace washers that show bending, galling or heavy corrosion instead of refitting them. After assembly, tighten the U-bolt hardware to the suspension service procedure and recheck after the required bedding-in interval.

Trailer Applications

Workshops use this M24 U bolt washer across heavy trailer suspension U-bolt repairs, axle seat work and suspension hardware replacement. It suits parts-counter matching where the buyer needs a genuine M24 washer with the correct 43.5mm outside diameter and 4mm thickness.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers can help match M24 washers, nuts and U-bolts against the suspension hardware already on the trailer. Browse more Hardware parts from ICS Trailers in the Hardware parts range today.
