Description

Overview

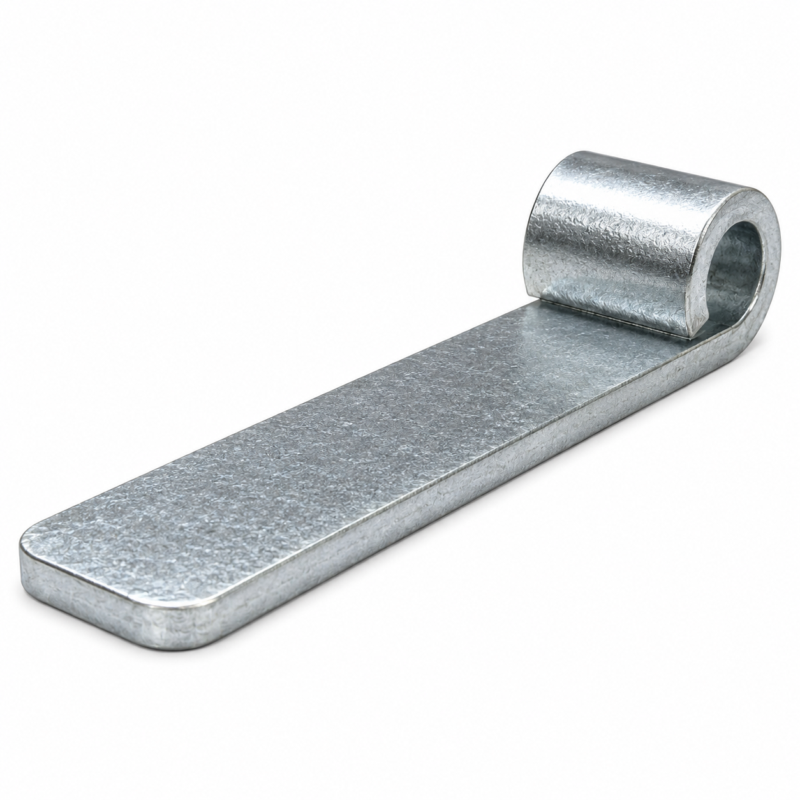

The 250mm zinc plated drop side hinge creates a weld-on pivot for trailer drop sides, tailgates and utility trays. The 32mm wide strap uses 6mm steel around a 13mm pin, while the supplied gudgeon and bush complete the assembly.

Features

• 250mm long, 32mm wide strap
• 6mm steel section with zinc plated finish
• 13mm hinge pin diameter
• Includes gudgeon and bush for the pivot connection

Specifications and Materials

This weld-on assembly uses a mild steel strap with a zinc plated finish. The hinge profile measures 30mm high at the rolled eye.

Part number: DSH250ZP.

Before welding zinc-coated steel, review the WorkSafe Victoria welding fume guidance

Compatibility and Fitment

Match the 250mm strap length, 32mm width, 6mm thickness and 13mm pin size before ordering. The main mismatch risk is selecting a similar strap hinge with a different length, pin diameter or fixing style.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. DSH250ZP-PACK, DSH250ZPPACK, HSB250Z-PACK, HSB250ZPACK

Compliance and Safety

Control welding fumes and restore corrosion protection where heat or preparation damages the zinc coating. After fitting, confirm the gudgeon is secure, the bush is seated and the drop side pivots without binding.

Trailer Applications

Fabricators fit the 250mm zinc plated drop side hinge to steel trailer drop sides, tailgates and utility tray panels that need a compact weld-on pivot and a complete gudgeon-and-bush connection.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

A 250mm strap can look similar to shorter or stainless variants, so the length, 32mm width, 6mm section, 13mm pin and included pivot parts all need to match the repair. ICS Trailers can compare old markings, photos and measurements when the original hinge is worn or missing.

• Check the surrounding drop-side latches and panel alignment while the hinge is apart.
• Use the old pack code or current dimensions to narrow down replacement options.
