Overview

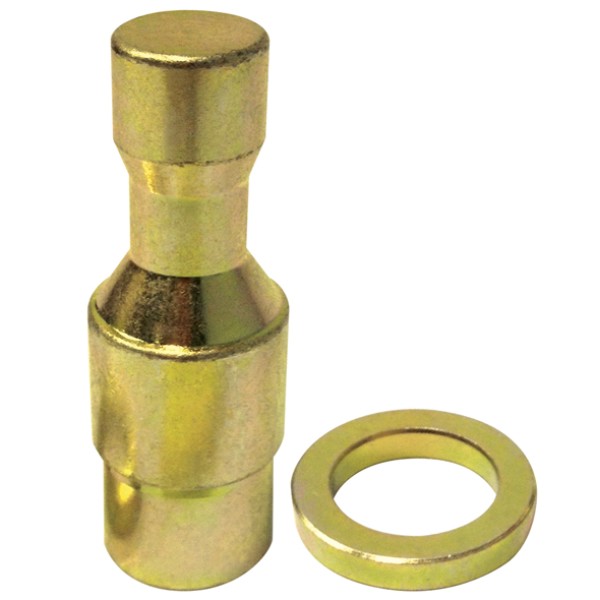

Anchor Pin Fitting and Removal Tool helps you install or remove anchor pin bushes during drum brake service, so the shoe hardware seats correctly and wears evenly. Because worn bushes can loosen shoe support and drive uneven braking, the tool keeps the job aligned when you press parts in or out.

Before you start, confirm the tool size against the bush you are servicing and clean the bore so the bush does not pick up damage during fitting.

Features

• Supplied as a tool and boss set for controlled fitting
• Matched sizing to suit the listed bush dimensions
• Compact format that works in standard workshop setups
• Useful for service work on common trailer drum brake assemblies

Specifications and Materials

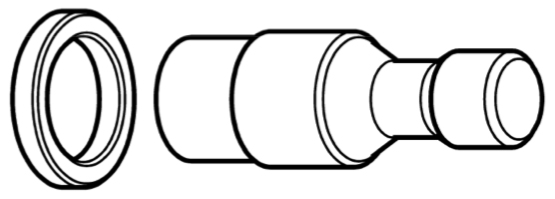

Use Anchor Pin Fitting and Removal Tool with the supplied boss to suit the dimensions below.

• Includes: tool and boss
• Outside diameter (OD): 44.5mm
• Inside diameter (ID): 32mm
• Depth: 8mm

Part number: CA7890.

Refer to the Meritor trailer axle service manual for general brake anchor pin and bushing service guidance.

Compatibility and Fitment

This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown. Some changes in installation may be required. 00.0330.0, 0003300

Match the OD, ID and depth to your existing bush first, because similar tools can look the same but fit differently. If you press a bush into a spider or shoe, keep the tool square to the bore, then drive or press in small steps to avoid cocking the bush. When you remove a bush, support the surrounding casting so you do not crack the housing.

Compliance and Safety

Use eye protection and stable supports, and keep fingers clear of pinch points when you apply force. Also keep grease off friction surfaces, otherwise braking performance can drop. After reassembly, follow your brake manufacturer procedure and confirm correct adjustment before road use.

Trailer Applications

Anchor Pin Fitting and Removal Tool suits maintenance work on heavy trailer drum brakes that use anchor pin bushes and shoe hardware. It also supports fleet servicing where you want consistent fitment across multiple axles, so technicians can reduce rework and downtime.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Confirm the tool size before purchase so it matches the bush you need to fit or remove.

Why Choose ICS Trailers

ICS Trailers supplies practical service parts that help keep brake maintenance predictable. If you are unsure about bush sizing or you want related hardware, contact our team and we will help you narrow it down.
