Description

Overview

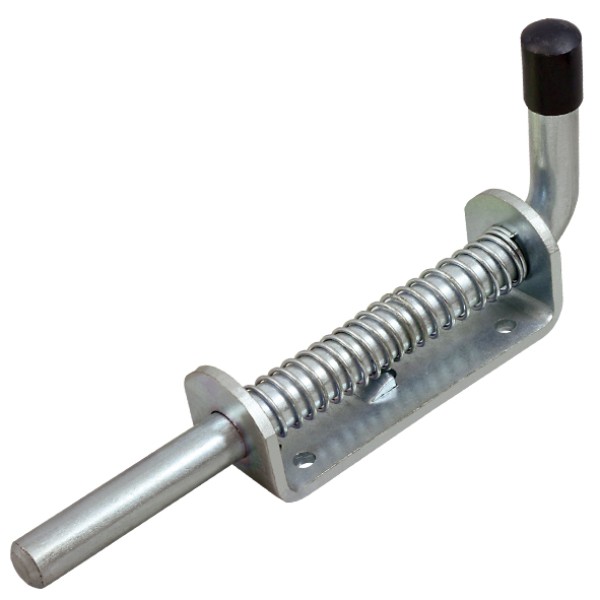

The 16mm spring loaded pad bolt secures trailer and van doors, tailgates and body panels with a spring-return latch. Its 16mm bolt width, 220mm length and 120mm mounting plate distinguish it from smaller versions.

Features

• 16mm bolt width for a larger latch arrangement.
• 220mm overall length with a 120mm mounting plate.
• Zinc-plated finish.

Specifications and Materials

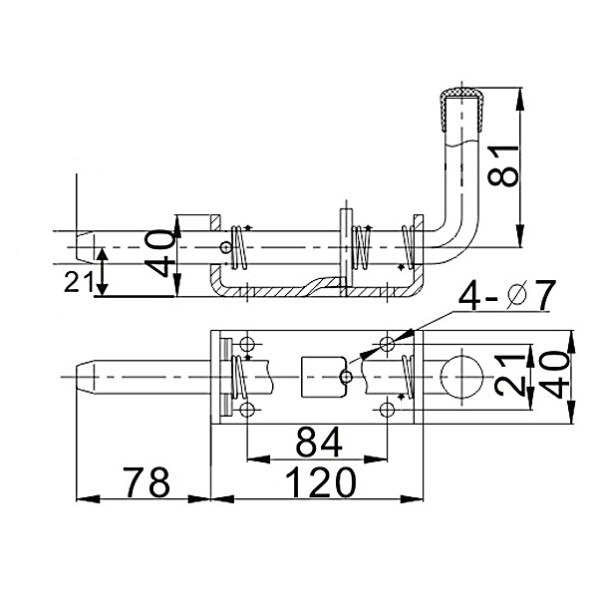

Overall dimensions: 220 x 40 x 102mm.

Plate length: 120mm.

Bolt width: 16mm.

Finish: zinc plated.

Part number: CV1516.

Review the Ganter spring latch technical reference

Compatibility and Fitment

Compare the 16mm bolt width, 220mm length and 120mm plate before ordering. Because smaller versions share the same general form, also check the keeper position and mounting space.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

After fitting, confirm the bolt retracts and returns freely, then check that the keeper engages without binding. Also inspect the mounting plate for movement or distortion.

Trailer Applications

Workshops fit this larger pad bolt to trailer and van doors, tailgates and access panels where a spring-return bolt suits the body hardware.

Why Choose ICS Trailers

The 16mm bolt width and 220mm body make this version easy to confuse with smaller spring bolts when the old hardware is damaged. ICS Trailers can compare photos, overall dimensions, plate length and keeper position to help narrow down the correct replacement.

• Check the surrounding door, hinge and keeper condition while the latch is apart.
• Send the old bolt measurements if the mounting layout is difficult to identify.
