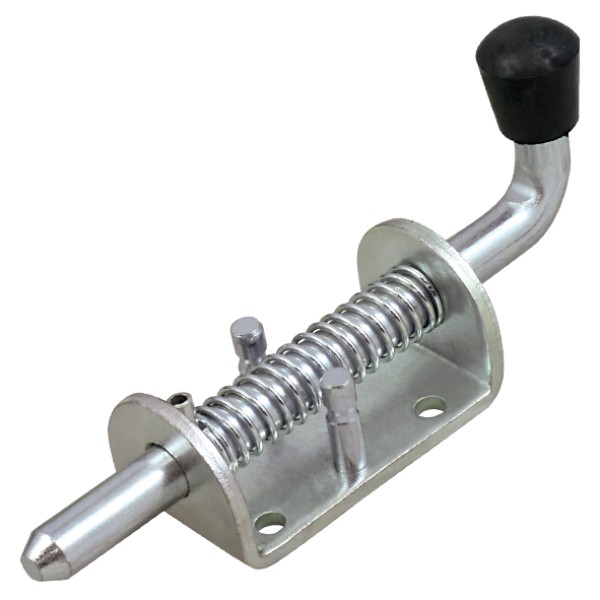

12mm Spring Loaded Pad Bolt
12mm Spring Loaded Pad Bolt
$6.00
12mm spring loaded pad bolt for trailer doors and body panels, with zinc-plated construction, 165mm overall length and a 74mm mounting plate for compact latch replacement, repair or trailer body fabrication work.
Part number CV1509.
Description
Overview
The 12mm spring loaded pad bolt provides a compact spring-return latch for trailer and van doors and body panels. The 12mm bolt width and 165mm overall length are the main selection details, while the product carries a zinc-plated finish.
Features
- 12mm bolt width.
- 165mm overall length with 74mm mounting plate.
- Spring-loaded retaining action.
Specifications and Materials

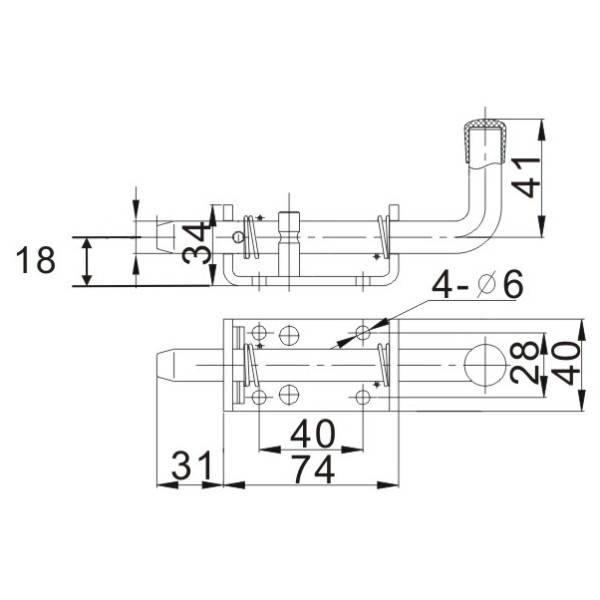

Overall dimensions: 165 x 40 x 60mm.
Plate length: 74mm.
Finish: zinc plated.
Part number: CV1509.
The manufacturer spring-loaded bolt technical page covers heavy-duty spring-bolt construction with zinc-plated finish
Compatibility and Fitment
Compare the 12mm bolt width, 165mm overall length and 74mm plate length before ordering. The 16mm and long 12mm versions use different dimensions.
Related Parts
Check the related service parts below against the trailer setup before ordering.
| Use | Part number | Part type |
|---|---|---|
| Related version | CV1516 | 16mm pad bolt |
| Related version | CV1509L | Long 12mm pad bolt |
Compliance and Safety
Check that the bolt slides freely, the spring returns cleanly and the mounting plate stays secure. Also align the bolt with its keeper so the latch does not bind.
Trailer Applications
Workshops fit this style of pad bolt to trailer and van doors and body panels where spring-loaded retention suits the existing body hardware.
Why Choose ICS Trailers
The key checks are the 12mm bolt width, 165mm overall length and 74mm mounting plate. If the old latch is worn or missing, ICS Trailers can compare photos and measurements to distinguish this standard version from the longer 12mm and larger 16mm alternatives.
- Compare the keeper position and mounting area before fitting.
- Check surrounding hinges and latch hardware while the panel is apart.
