Description

Overview

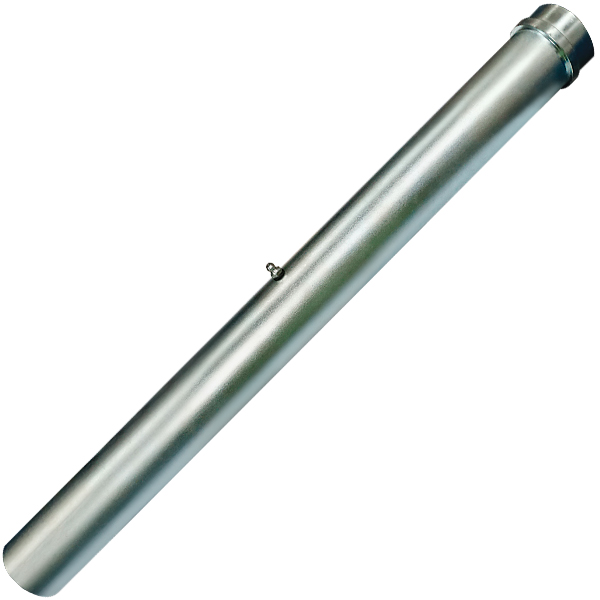

Camshaft cover for 1 5/8in cams protects the exposed ends of an S-camshaft assembly in service. It helps block road spray, grit, and small impacts that can build up around the cam area. This style suits common trailer foundation brake hardware used on Propar, Fruehauf, Air Suspension and Holland setups. Check the sizing below because small diameter differences matter.

Features

This camshaft cover for 1 5/8in cams fits over the camshaft area, so it reduces direct exposure to debris. It also removes and refits easily during inspection, which keeps servicing simple.

• Designed for 1 5/8in cam diameter applications.
• Two-end profile to suit cam end and spline end sizing.
• 520mm overall length for coverage on the listed setups.
• Common replacement part used during brake servicing.

Specifications and Materials

Part number: FB2075.

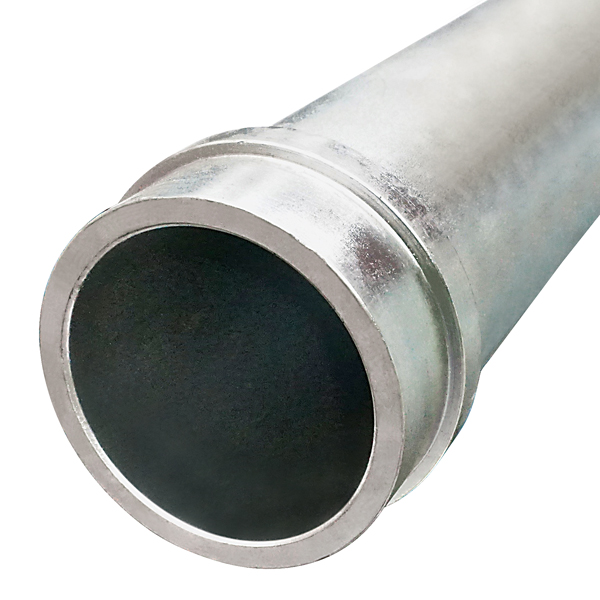

• Cam end size: 2in O.D, 1.625in I.D.

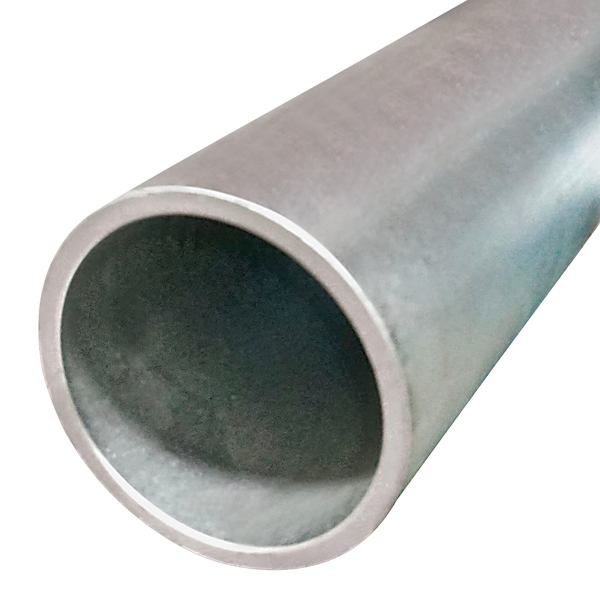

• Spline end size: 1.9in O.D, 1.625in I.D.
• Overall length: 520mm.
• Replacement bushes: not specified.

For general S-cam foundation brake service guidance, refer to the Meritor cam brakes technical bulletin which covers cam brake and slack adjuster setup in workshop procedures.

Compatibility and Fitment

Confirm the internal diameter suits a 1 5/8in camshaft before you start. Then match the overall length to your existing cover for correct reach. If your trailer uses the listed Propar, Fruehauf, Air Suspension or Holland style hardware, this is a common replacement style. However, check clearance around the brake spider and nearby brackets so nothing rubs.

Compliance and Safety

Foundation brake work affects stopping performance, so follow your workshop process at all times. Also, support the vehicle correctly and isolate the air system before you work near brake gear. If you find abnormal wear or stroke, fix the root cause before returning the trailer to service.

Trailer Applications

Camshaft cover for 1 5/8in cams is used on heavy trailer running gear with S-cam foundation brakes. It suits applications that run in wet, dusty, or high spray conditions. For example, it is common on curtainsiders, flat tops, and tippers that see mixed road environments. It also suits fleet maintenance because it is a straightforward service item during cam inspections.

Cross-reference and Suitability

No verified interchange part numbers were identified for this item from authoritative sources. Instead, select it by the sizes and application notes shown above.

Why Choose ICS Trailers

You can select this part by measured sizes, and you can get help checking fitment details. That means you reduce rework and keep scheduled maintenance moving. Browse Foundation Brakes parts at ICS Trailers for compatible brake hardware.
