Description

Overview

Camshaft cover for 1.5in cams suits common S-cam foundation brake setups where you want to shield the camshaft tube from grit and moisture. It fits general-purpose and air suspension trailer brake assemblies, so the cam area stays cleaner between services. Because a cover supports long service life, it also helps reduce premature bush wear caused by contamination.

Features

• Matches 1.5in cam tube internal diameter for a snug, consistent fit
• Uses a straight tube design so it installs neatly along the camshaft line
• Helps keep road grime out of the cam and bush area during normal operation
• Works as a service replacement when an existing cover is worn or damaged

Specifications and Materials

Part number: FB2076.

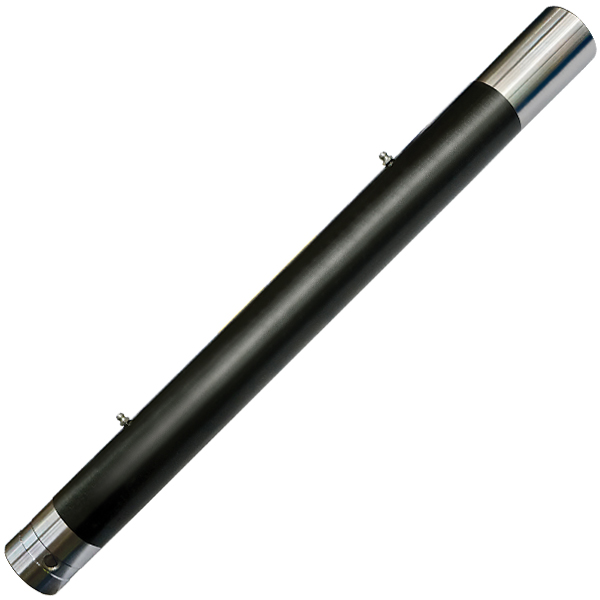

This camshaft cover for 1.5in cams has a 1.5in internal diameter at both ends with a 1.87in outside diameter tube and 526mm overall length. It typically uses a steel tube construction because it needs to resist impact and vibration on heavy-duty running gear.
For general S-cam brake axle service procedures, refer to the SAF-Holland drum brake axle service manual which outlines common inspection and maintenance steps.

Compatibility and Fitment

This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown. Some changes in installation may be required. BP2043-44CT, BP204344CT, 31-1402, 311402, 22736, FB20344, E-4738A, E4738A, 03-147, 03147, 999195-206, 999195206, R630014, R004738A, C65209.

Compliance and Safety

If you are servicing S-cam brakes, support the axle securely and follow your workshop safety procedures before you remove any components. After installation, check that the cover does not foul the camshaft rotation and that all retaining hardware seats correctly. Then confirm brake adjustment and perform a controlled brake test before returning the trailer to service.

Trailer Applications

This camshaft cover for 1.5in cams is commonly used on heavy trailer foundation brakes that run standard 1.5in camshafts. It suits general-purpose running gear, and it also suits air ride suspension trailer setups where road spray can reach the brake and cam area. If you are refreshing a full brake service, replace worn bushes and seals at the same time so the camshaft runs smoothly.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Match the cam diameter and overall length first, then compare the end diameters to confirm the correct enclosure style for your axle.
