Description

Overview

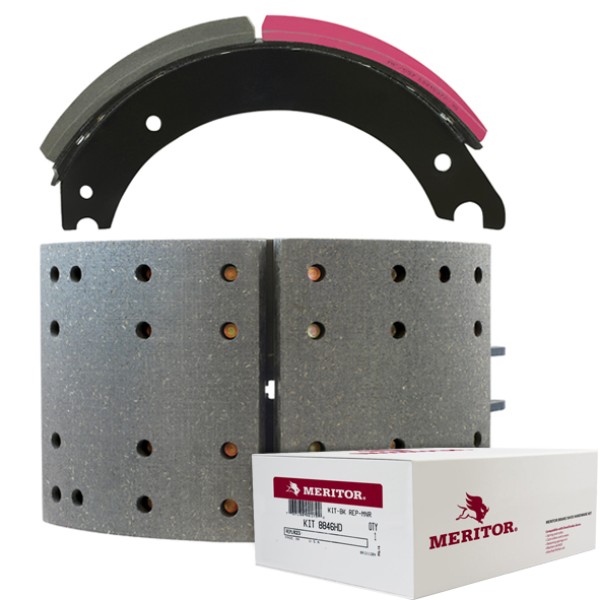

The Hendrickson 420 x 219mm brake shoe kit replaces wide 16 1/2 x 8 5/8 drum brake shoes on Hendrickson trailer brake setups. It includes two lined riveted shoes with brake hardware for one wheel, making it a direct service kit for wheel-end brake shoe replacement.

Features

• Two lined riveted Hendrickson brake shoes for one wheel.
• 420 x 219mm size, also listed as 16 1/2 x 8 5/8.
• Meritor MG2 non-asbestos medium to high friction lining.
• Includes brake hardware for the wheel service.

Specifications and Materials

MG2 friction material suits heavy-duty truck, tractor and trailer brake applications where the matching brake size and shoe type are required. Each shoe uses 28 rivets per shoe.

Part number: FB4059MG2.

See the Hendrickson HXS brake specification guide

Compatibility and Fitment

Match the drum brake size, shoe width, anchor end, roller end and hardware layout before ordering. The main mismatch risk is confusing this 8 5/8 inch wide Hendrickson shoe set with narrower 7 inch Q or Q Plus brake shoe kits.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. Q Plus, QPlus, MSKMG2A4711QP, HK4711H23, S-23751-3, S237513, 4711.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Inspect the brake drum, rollers, anchor pins, return springs and hardware before fitting. Replace worn hardware rather than reusing tired springs or damaged pins, and confirm the finished brake assembly moves freely before returning the trailer to service.

Trailer Applications

Workshops use the Hendrickson 420 x 219mm brake shoe kit on wide Hendrickson trailer drum brake assemblies, including fleet, tanker, grain and heavy freight applications that need consistent brake recovery across repeated stops.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers supplies foundation brake parts for trailer repair work, including lined shoes, brake hardware, rollers, camshaft parts and related wheel-end service items.

If you are not sure whether this is the correct shoe set, send through the old shoe markings, drum size and brake details so we can help narrow down the match before you order.
