Description

Overview

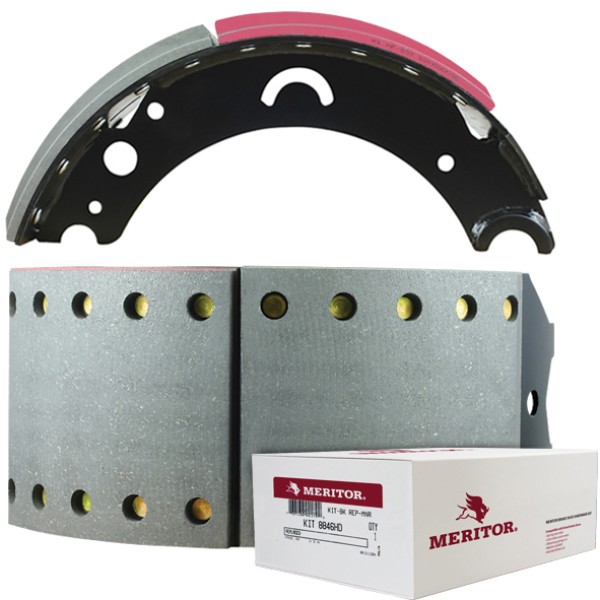

Meritor MG2 BPW New Gen Brake Shoe 16.5×7 is a 16 1/2" x 7" (420 x 178mm) lined brake shoe set for BPW New Gen drum brakes and it includes hardware for one wheel end. The kit supplies two riveted shoes so you can service a wheel end as a matched set. As a result, Meritor MG2 BPW New Gen Brake Shoe 16.5×7 helps maintain consistent braking after routine brake work.

Features

• Two lined riveted shoes suit BPW New Gen 16 1/2" x 7" drums
• Includes brake hardware for one wheel end
• MG2 friction material uses a non-asbestos, medium to high friction lining profile
• The lining is described for consistent recovery across repeated stop cycles

Specifications and Materials

• Brake size: 16 1/2" x 7" (420 x 178mm)
• Lining type: riveted, lined shoes
• Friction material: Meritor MG2 (rated for 23,000lb GAWR at 180 AL)
• Rivets per shoe: 20

Part number: FB4023MG2.

For the referenced FMVSS 121 brake performance requirement, use the FMVSS 121 air brake systems standard text as a technical reference for air braked vehicles

Compatibility and Fitment

This kit targets BPW New Gen drum brakes in the 16 1/2" x 7" size class. Brake assemblies can vary by axle build and backing plate, so confirm the shoe type against your BPW parts list before ordering.

This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown. Some changes in installation may be required. MSKMG2ABC36/NG

Compliance and Safety

MG2 friction material is described as meeting FMVSS-121 requirements, and that standard defines braking performance requirements for air brake systems. Because correct installation matters, inspect drums for wear limits, check cam and rollers for free movement, and replace worn return springs while the brake is apart. Otherwise, new linings can still drag or fade.

Trailer Applications

Use this Meritor MG2 BPW New Gen Brake Shoe 16.5×7 in on-highway service where BPW New Gen drum brakes operate under higher axle loads. It also suits long-haul work over average to rough terrain and liquid or grain hauling where stable braking helps protect driveline and tyres. Stop-and-go routes can benefit from consistent recovery across multiple stops.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Because cross-reference lists vary by market, verify the brake type and lining specification before installation.
