Description

Overview

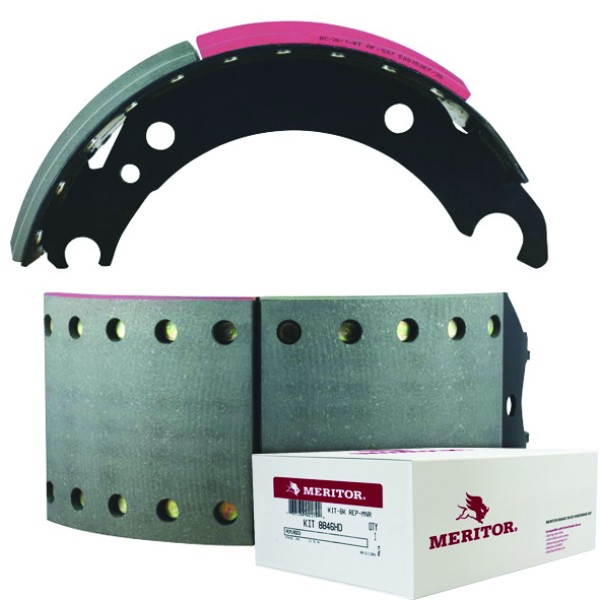

Meritor MG2 BPW Brake 95 Shoe 420x180mm is a lined brake shoe kit for BPW Brake 95 drum brakes using the 420 x 180mm shoe size. It includes two riveted, lined shoes plus fitting hardware for one wheel end, so you can service a single wheel position without sourcing springs and retainers separately. The Meritor MG2 BPW Brake 95 Shoe 420x180mm is intended for heavy-duty on-highway use where stable braking matters.

Features

This kit is set up for straightforward wheel-end servicing and helps keep your brake rebuild consistent.

• Supplies two lined, riveted brake shoes for one wheel end
• Includes the brake hardware required for that wheel end
• Uses MG2 non-asbestos, medium to high friction lining
• Supports consistent recovery performance across repeated stops

Specifications and Materials

Part number: FB4043MG2.

• Brake type: drum brake shoe kit for BPW Brake 95
• Shoe size: 420 x 180mm
• Rivets per shoe: 20
• Lining material: Meritor MG2

The MG2 lining targets 23,000lb (10,432kg) GAWR heavy-duty applications when matched to suitable chambers and slack adjusters. Use the Cummins Meritor literature portal to locate official brake shoe and friction publications

Compatibility and Fitment

Confirm your brake model as BPW Brake 95 and verify the 420 x 180mm shoe size before installation. This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown. Some changes in installation may be required. MSKMG2ABC36/95, 0509146320BH95

Compliance and Safety

Meritor MG2 BPW Brake 95 Shoe 420x180mm is described as meeting FMVSS 121 requirements, but you must still follow the axle and brake manufacturer service instructions for bedding-in, torque settings, and inspection intervals. To keep braking balanced, replace shoes as an axle set to help reduce uneven wear.

Trailer Applications

Meritor MG2 BPW Brake 95 Shoe 420x180mm suits common trailer drum brake servicing across a range of operating conditions, especially where frequent braking is expected.

• liquid and grain hauling
• heavy freight linehaul
• average to rough terrain service
• city stop-and-go operation

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Match brake hardware condition to your service plan and replace worn rollers and springs as required.

Why Choose ICS Trailers

ICS Trailers stocks foundation brake parts for heavy trailers and can help you select the correct shoe size, lining type, and hardware for your axle. This makes it easier to order the right parts and reduce downtime during servicing.

Browse Foundation Brakes at ICS Trailers in the Foundation Brakes category today
