Description

Overview

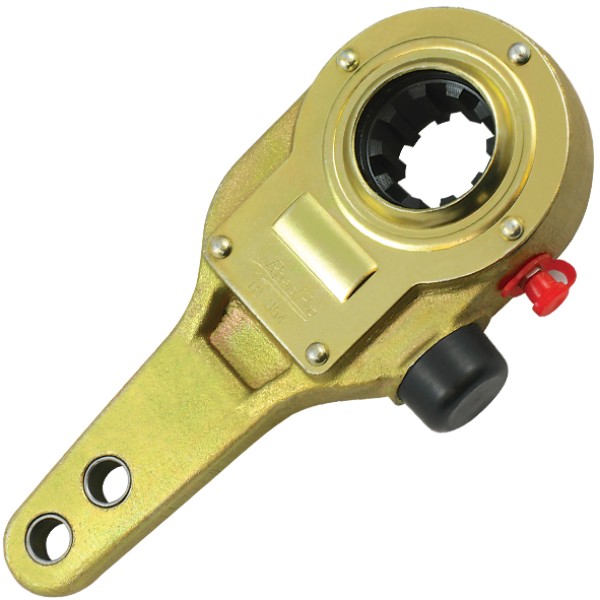

The Manual Slack Adjuster 10 Spline 38mm Cam Brake converts air chamber pushrod travel into S-cam rotation, so your drum brakes apply with the correct leverage. This manual adjuster suits common 1 1/2″ (38mm) 10-spline camshafts used on heavy vehicle foundation brakes. It is a practical replacement when you want consistent brake feel after lining wear or service work.

Features

The Manual Slack Adjuster 10 Spline 38mm Cam Brake keeps adjustment simple during routine inspections. The 2-hole arm layout helps match typical clevis and chamber setups, and the straight-arm geometry supports straightforward fit-up on many general purpose installations.

• Manual adjustment design for S-cam drum brake systems
• 10-spline fitment for 38mm (1 1/2″) camshafts
• 2-hole arm to suit common clevis arrangements
• Specified arm lengths to help maintain correct brake geometry

Specifications and Materials

The published selection dimensions and connection details are:

• Spline count: 10
• Spline size: 1 1/2″ (38mm)
• Arm holes: 2
• Arm length A: 140mm
• Arm length B: 165mm
• Clevis pin diameter: 12.7mm (1/2″)

Part number: FB5019.

For background on slack adjuster function and brake drag risk, see the manufacturer slack adjuster technical overview then follow your axle maker service manual

Compatibility and Fitment

This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown, but some changes in installation may be required. 10.354, A48-3275X518, A933275G501, BP5023, E-940, FL10.354, KN47011

Compliance and Safety

Brake performance depends on correct installation and adjustment, so confirm chamber stroke and camshaft condition before you set final clearance. Inspect clevis pins, yokes, and bushes for wear because looseness can mimic an out-of-adjustment brake. Re-check adjustment after initial bedding-in and include it in your regular service schedule.

Trailer Applications

Manual Slack Adjuster 10 Spline 38mm Cam Brake suits S-cam foundation brake setups found on many heavy trailers and prime movers. It can suit drum-braked semi-trailers, dog trailers, and general purpose combinations that run 38mm 10-spline camshafts. If your axle uses a different spline count, arm style, or offset, choose the matching variant instead.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
