Description

Overview

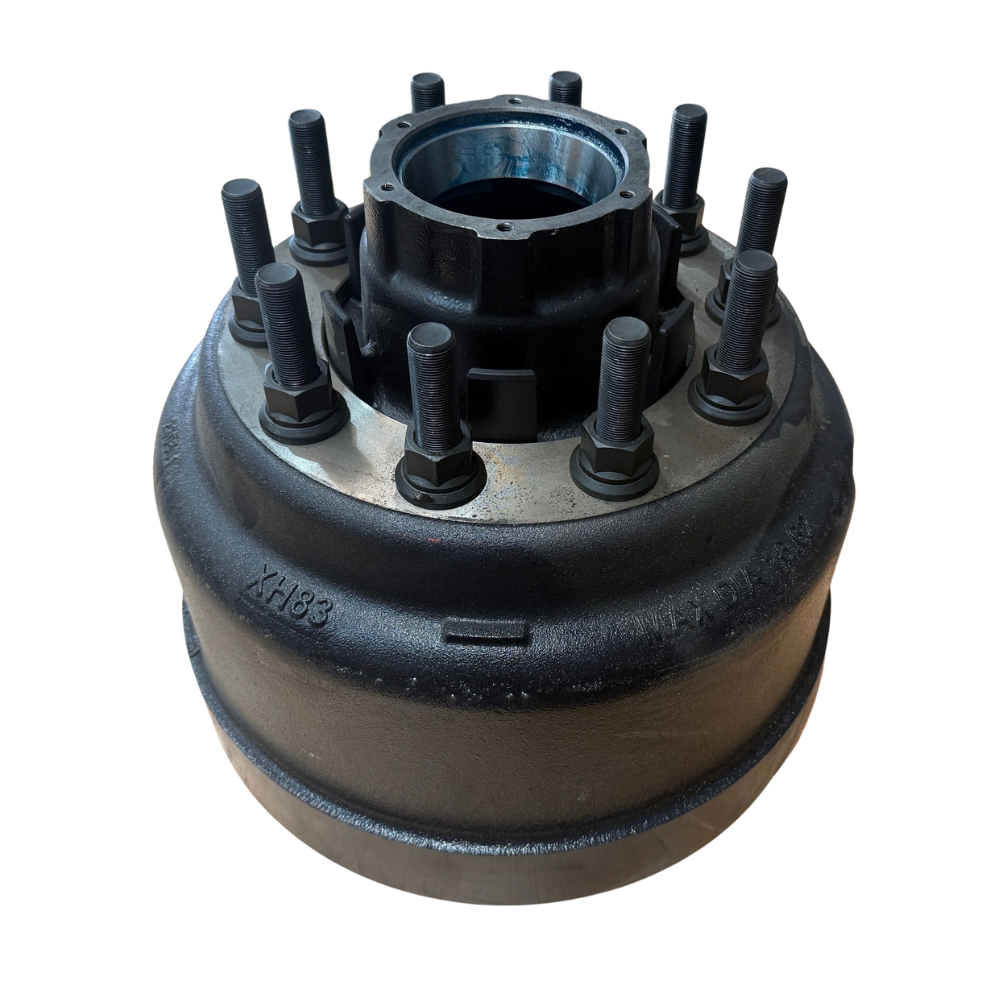

The K-Hitch Hub & Drum 10/285 TN Long Stud provides a complete wheel-end hub and brake drum assembly for service replacement on compatible K-Hitch drum brake axles. It matches the 10×285 stud pattern used on 22.5in wheel fitments, so you can restore correct wheel location and braking surface in one changeover. The long-stud configuration also suits setups that need extra thread engagement for wheel hardware.

Features

This assembly helps streamline wheel-end service because it combines the hub and drum in one replacement unit.

• Combined hub and drum assembly to simplify wheel-end replacement
• 10×285 stud pattern for common heavy trailer 22.5in wheel fitments
• TN wheel-end configuration with a long-stud setup for the specified application
• Designed for K-Hitch drum brake axle wheel ends, improving parts matching

Specifications and Materials

Use the selection points below to confirm you are matching the correct K-Hitch Hub & Drum 10/285 TN Long Stud.

• Wheel stud pattern: 10×285
• Wheel size reference: 22.5in
• Brake drum size: 420x180mm (16.5in x 7in)
• Long-stud wheel-end option listed for the TN configuration

Part number: KH3600-3008Z.
See K-Hitch drum brake axle parts view PDF for the referenced hub and drum options and related service components

Compatibility and Fitment

This hub and drum assembly suits K-Hitch KF22 and KF29 drum brake axle wheel ends where the build uses the 10×285 TN long-stud configuration. However, wheel-end parts can vary by axle and bearing arrangement, so confirm the stud pattern and drum dimensions before ordering. If you are replacing a worn drum, inspect the studs and mounting faces at the same time to avoid repeat labour.
This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown. Some changes in installation may be required. XH83

Compliance and Safety

Always follow the axle and brake manufacturer’s service instructions when fitting wheel-end components. During installation, check wheel nut torque practices, brake adjustment, and stud condition so the wheel end remains secure. After the first loaded run, re-check wheel fasteners as part of routine safety inspection.

Trailer Applications

The K-Hitch Hub & Drum 10/285 TN Long Stud is commonly used on heavy trailers running drum brake axles with 22.5in wheels, for example semi-trailers, dog trailers, and rigid drawbar trailers. It also suits maintenance programs where a complete hub and drum changeover reduces downtime.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Confirm suitability by axle series, wheel stud pattern, and drum size to ensure the correct wheel-end configuration.

Why Choose ICS Trailers

ICS Trailers helps you select wheel-end parts with clear fitment guidance and local support. We can also assist with related brake and axle components so your service job stays consistent from hub to brakes. Browse Foundation Brakes at ICS Trailers
