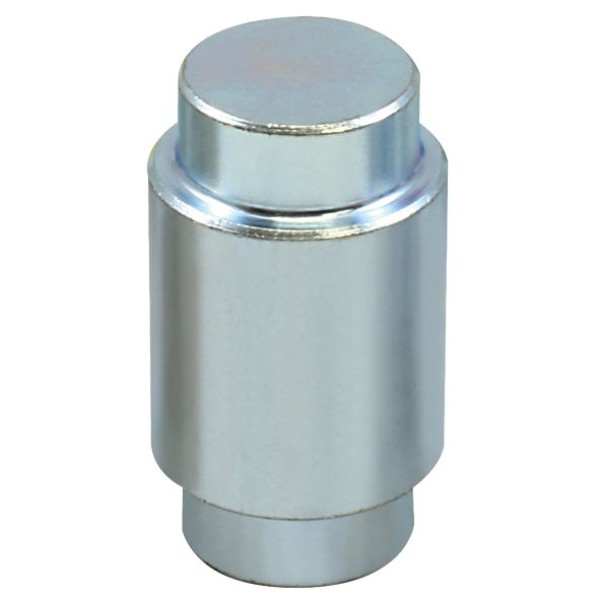

Brake shoe anchor pin Q brake is a key component in heavy trailer foundation brakes, keeping the brake shoes located on the spider so contact with the drum stays consistent. This part also suits Q style cam brakes on heavy vehicle axles where accurate shoe location matters.

Features

• Precision machined brake shoe anchor pin for common Q brake trailer foundation brakes
• Solid steel construction for heavy vehicle service and frequent braking
• Compact length that suits tight drum brake spiders while supporting the shoe ends
• Direct replacement for recognised Q brake anchor pin cross references

Specifications and Materials

Part number: FB3237.

This brake shoe anchor pin is intended for 16.5 inch Q style drum brakes on heavy trailers, with a pin diameter matched to typical Q brake anchor bores. Dimensions follow common industry practice for Q brake anchor pins used on heavy vehicle axles. Material selection focuses on strength and wear resistance, so the pin can handle repeated brake applications at the shoe web contact points. For general guidance on servicing heavy vehicle drum brake anchor pins, refer to this Bendix foundation brake service manual which explains the role of anchor pins in drum brake spiders

Compatibility and Fitment

This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown. Some changes in installation may be required. FL15.542, IT15.542, 1259N274, 1259N274BULK, T02-3237, WT3305, FP15.542, 79787526, T02-3238, E-3711.

Compliance and Safety

Correctly matched brake shoe anchor pins help keep shoe travel within design limits and reduce the chance of dragging brakes. When you replace a Q brake anchor pin, inspect the bushes, shoe webs and return springs at the same time.

• Always chock wheels, isolate the vehicle and release air pressure before working on foundation brakes
• Support the axle safely, then remove brake shoes and hardware according to the manufacturer service manual
• Verify brake adjustment and function on both sides of the axle before returning the trailer to service

Trailer Applications

This brake shoe anchor pin Q brake suits heavy trailer and semi-trailer axles fitted with 16.5 inch foundation drum brakes. In these applications, the brake shoe anchor pin Q brake design keeps the shoes located correctly under repeated stops.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers focuses on heavy vehicle brake and suspension components, so you get parts that align with common trailer axle and brake designs. We also back our listings with cross-reference research and clear specifications, which helps workshops match parts quickly and reduce downtime. As a result, you spend less time guessing and more time keeping trailers on the road with safe braking performance. Browse more foundation brake components in our Foundation Brakes range for related hardware and accessories.
