This anchor pin distance plate BPW suits drum brake axles and helps keep the brake shoe anchor pins spaced correctly. It also helps align the shoes so they contact the drum evenly and reduce wear on heavy trailer brakes. It suits BPW New Generation H91, H10 and R10 axles as well as Brake 95 drum brakes. These brake sets are common on many highway and general freight trailers.

Features

• Provides accurate spacing between the BPW brake shoe anchor pins for consistent braking
• Helps improve brake shoe alignment so contact and wear stay even across the drum surface
• Supports reliable performance on BPW H91, H10, R10 and Brake 95 drum brake axles

Specifications and Materials

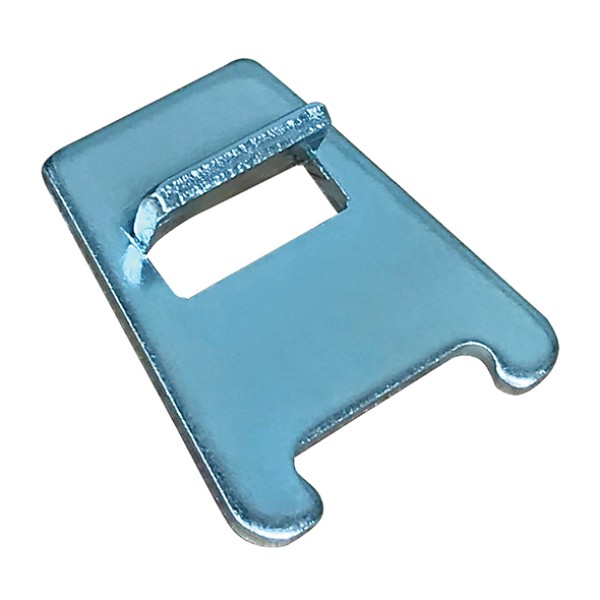

This distance plate is a steel component that seats between the BPW brake shoe anchor pins. Overall length is 58mm and width is 52mm, so it matches BPW drum brake anchor plate dimensions. Part number: FB3228G. For detail on BPW drum brake hardware, refer to the manufacturer spare parts catalogue

Compatibility and Fitment

This anchor pin distance plate BPW suits BPW H91, H10 and R10 axles as well as Brake 95 drum brakes. This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown. Some changes in installation may be required. Cross-reference items: 03.167.23.02.0, 0316723020, B3321, FL34.8038A, WT3321.

Compliance and Safety

Correct brake shoe alignment helps support braking performance requirements and even brake wear. Inspect the distance plate whenever you reline the shoes or replace anchor hardware, and ensure it sits flat with no cracking or distortion. Then confirm it matches the original BPW hardware before returning the trailer to service. In addition, follow BPW and fleet workshop procedures so torque settings and clearances stay within specification.

Trailer Applications

Workshops use this plate when servicing BPW drum brake axles on general freight, tanker and other heavy trailers. It suits fleet maintenance programs where consistent parts help standardise brake performance across multiple units. This approach helps reduce uneven shoe wear and supports stable braking under load.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Use these references as a guide when you compare existing hardware or catalogue listings during brake overhauls.
