Description

Overview

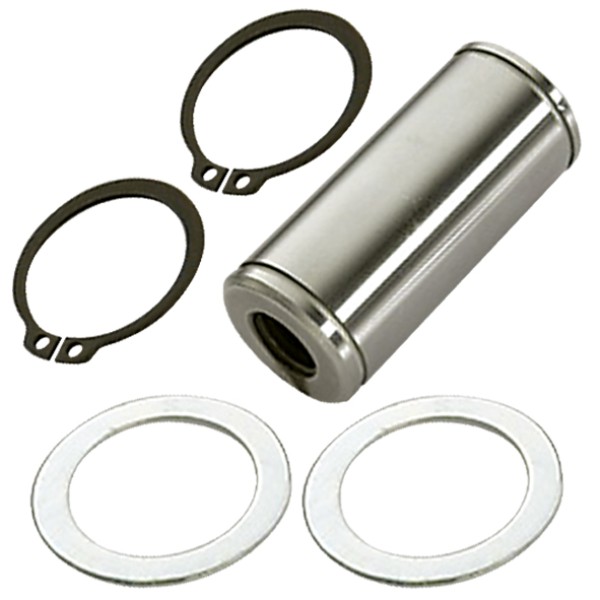

Brake shoe anchor pin kit SAF J 70mm is used in common SAF drum brake assemblies where the shoe anchor point must locate correctly for consistent braking. When pins and sleeves wear, the shoe can move, which can increase lining taper and noise. Replacing the anchor pin kit helps return the shoe to its intended position during a service.

Features

• Targets the shoe anchor point used on SAF J style foundation brakes
• 70mm pin length and 31.5mm outside diameter to support correct alignment during reassembly
• Compact format that is easy to carry as a service spare
• Suitable for routine brake shoe and hardware servicing

Specifications and Materials

Part number: FB6500.

Length: 70mm. Outside diameter: 31.5mm.

Thread: not specified.

Follow the SAF-HOLLAND drum brake axle work instruction when servicing drum brake shoes and related hardware to maintain correct procedure

Compatibility and Fitment

Brake shoe anchor pin kit SAF J fitment

This brake shoe anchor pin kit SAF J 70mm is intended for SAF J drum brake foundation brake hardware locations where a 70mm pin and 31.5mm OD match the existing shoe anchor arrangement. So, confirm brake size and axle series before ordering, especially if previous repairs mixed hardware. This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown. Some changes in installation may be required. 3213002302, 3213002301

Compliance and Safety

When working on foundation brakes, isolate the trailer, chock wheels, and support the axle correctly. Also, replace worn components as a set where the OEM procedure requires it. After installation, complete brake adjustment and a road test to help confirm even braking and correct shoe return.

Trailer Applications

This kit commonly suits heavy vehicle trailers fitted with SAF drum brake axles using J style brake hardware. Fleets that do frequent lining changes often keep anchor hardware on hand to reduce downtime. It also suits workshop maintenance schedules where brake shoe fit-up must stay repeatable.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Additionally, verify your existing brake hardware dimensions before purchase.
