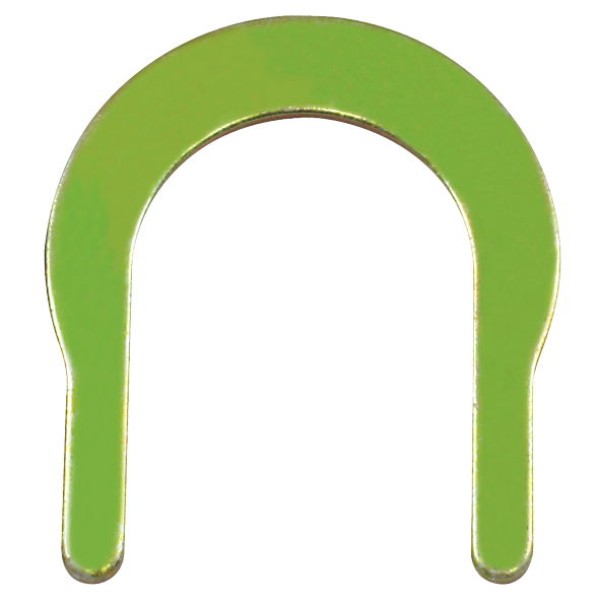

Brake shoe anchor pin c clip lock general fitment is a compact retaining washer used on heavy trailer foundation brakes to secure the brake shoe on its anchor pin and reduce sideways movement under load. This small part helps keep shoes aligned and supports consistent brake performance. With a 26mm internal diameter, 41mm outer diameter and 2mm thickness, it suits common heavy trailer anchor pin sizes while still clearing the brake spider and surrounding hardware. As a result, it is a straightforward replacement where the listed cross references apply.

Features

• Retains the brake shoe on the anchor pin and reduces lateral movement during braking
• 26mm internal diameter and 41mm outer diameter to suit common heavy trailer foundation brakes
• 2mm thick section to balance strength with clearance around the brake shoe and spider
• Suitable for a range of Freighter and Fruehauf style trailer brake applications when matched to the correct anchor pin

Specifications and Materials

Part number: FB3202.

• Type: brake shoe anchor pin C clip washer for heavy vehicle trailers
• Internal diameter: 26mm
• Outer diameter: 41mm
• Thickness: 2mm

General information on the selection and installation of retaining rings is available in this retaining ring installation guide which discusses correct engagement and handling

Compatibility and Fitment

This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown. Some changes in installation may be required. BP3202, FP15.527, FL34.8032A, FP15.532A, Freighter 154-00588, Fruehauf P1166, IT3202, T02-3202, FP3202, WT3202

Compliance and Safety

Follow the brake manufacturer’s service instructions and any applicable heavy vehicle brake regulations when fitting anchor pin hardware. Before refitting the drum, confirm the clip is fully seated and that the brake shoe sits squarely on the anchor pin without interfering with springs, rollers or spiders. After installation, apply and release the brakes several times while the trailer is securely chocked, then recheck for movement or abnormal noise.

Trailer Applications

This brake shoe anchor pin c clip lock is used on heavy semi trailer and dog trailer axles that rely on external C style washers to retain the brake shoe on its anchor pin. It suits maintenance, overhauls or lining changes where the original washer is worn, distorted or missing, so technicians can renew hardware whenever shoes are removed.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers focuses on correctly specified heavy vehicle brake components built from verified dimensional data and cross references, so you can match anchor pin hardware to your axles with confidence and reduce downtime. For more brake hardware options, browse Foundation Brakes at ICS Trailers
